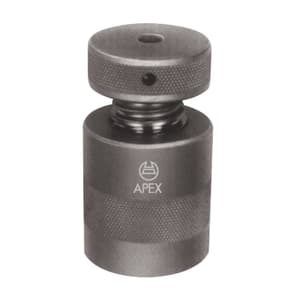

Apex 100 - 140 mm Screw Jack with Steel Body (Flat Support), 911-4
Roll over the image to zoom in
Key Features
- Product Type: Screw Jack
- Weight: 500 g
- Range H1 H2 (mm): 100 - 140 mm
- Base Dia - D1 (mm): 70 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,277 (Incl. of all taxes)
₹1,930 + ₹347 GST (18%)
MRP was MRP ₹2,969
Save 35%
5 Business Days
1
–
Download Product LeafletNot available
Download Apex CatalogueNot available
Download Apex CatalogueNot available
Highlights
- Centering hole dia 12mm provided for pads.
- Spindle : Trapezoidal Thread
- Material: Carbon Steel Heat Treated blackened.
- Self-locking with end stop body.
- All types of pads can be used for numerous adaptions. Coupling pad P-6 is useful to pile up the height of screw jacks Code 911-2 and 911-3.
Please Note that Products may differ eg. color, size from the product Image displayed on the website. Kindly check the specifications provided to make a better purchase decision.

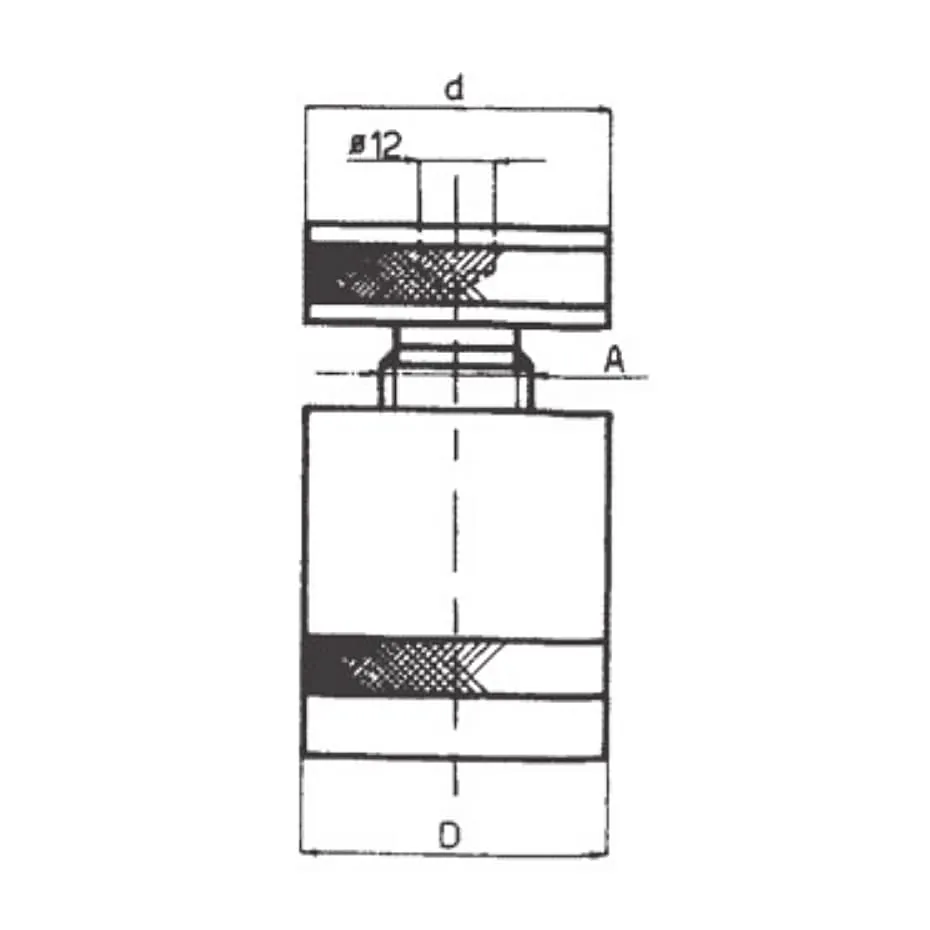

Specifications
| Range H1 H2 (mm) | 100 - 140 mm |
|---|---|
| Base Dia - D1 (mm) | 70 mm |
| Cap Dia DC (mm) | 65 mm |
| Static Load Max - Kn | 100 Kn |
| Spindle | Trapezoidal Thread |
| Material | Carbon Steel Heat Treated Blackened |
