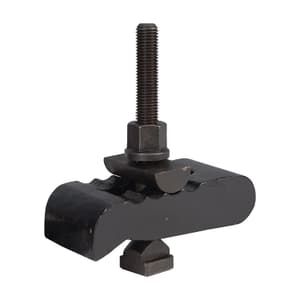

Apex 1816 x 160 mm Mould Clamp With T-Bolt & Flanged Nut, 934-8

Mould Clamp for plastic injection moulding & pressure die casting machines.

Features:

• Specially designed for low height applications, such as clamping of moulds on plastic injection moulding machines & pressure die casting machines.
• The compact front portion of the clamp enables it to penetrate in the limited area of the mould and clamp it.

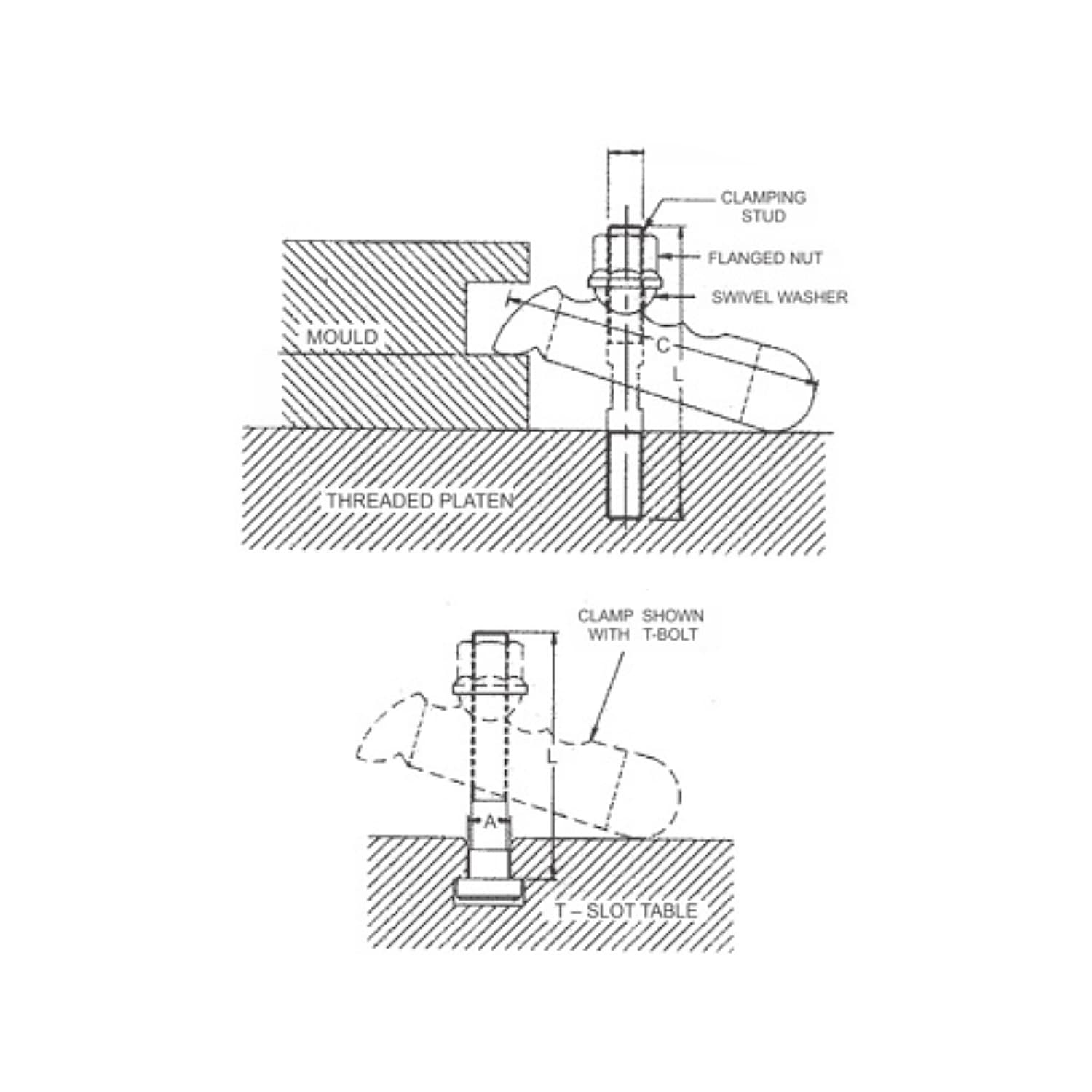

• No supports are required at the rear of the clamp as the rear portion rests on the platen and front holds the mould.
• Flanged nut is tightened on the swivel washer which takes care of the positioning of the clamp body.
• The positioning of the forged swivel washer on the required curved groove enables the operator to set the centre distance between the clamping portion and the clamping bolt as per the nearest tapped hole available on the platen (where there are no T-Slots).
