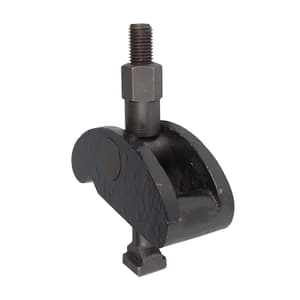

Apex 2020 x 160 mm Universal Strap Clamp with T-Bolt & Special Nut, 933-5
Roll over the image to zoom in
Key Features
- Product Type: Universal Strap Clamp
- T-slot Size (mm): 20 mm
- T-bolt Size (mm): M20 x 160 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,690 (Incl. of all taxes)
₹1,432 + ₹258 GST (18%)
MRP was MRP ₹2,203
Save 35%
5 Business Days
1
–
Download Product LeafletNot available
Download Apex CatalogueNot available
Download Apex CatalogueNot available
Highlights
Universal Strap Clamp for Power Presses, Milling, Drilling, Shaping & Boring Machines Etc. (With T-bolt & Special Nut)
Features:

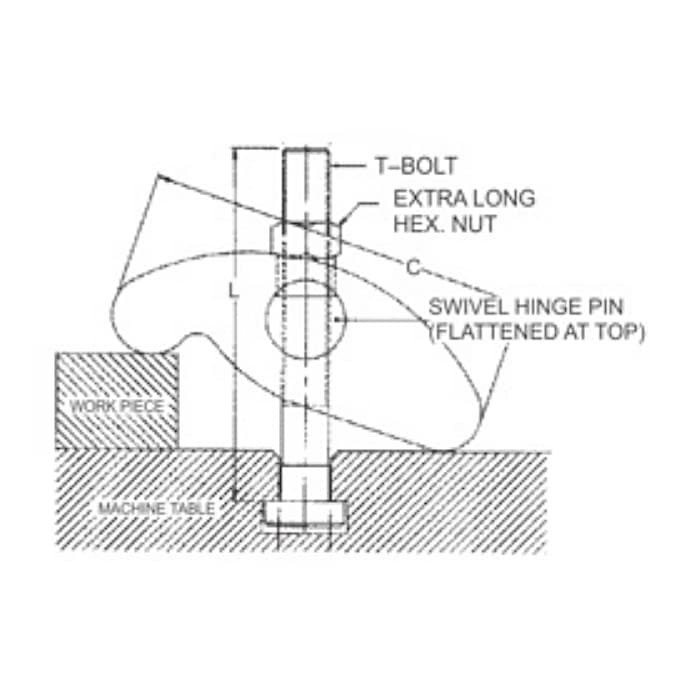

- Useful for job clamping on "T" slot table of Drilling, Milling, Shaping, Boring and Power Press etc.
- No support is required at the rear of the clamp. Since the body of the clamp is self-positioning.
- The body positions itself with the help of a swivel hinge according to the thickness of the workpiece.
Please Note that Products may differ eg. color, size from the product Image displayed on the website. Kindly check the specifications provided to make a better purchase decision.
Specifications
| T-slot Size (mm) | 20 mm |
|---|---|
| T-bolt Size (mm) | M20 x 160 mm |
| Clamping Range (mm) | 0 - 100 mm |
| Clamp Size (mm) | 160 x 55 mm |
