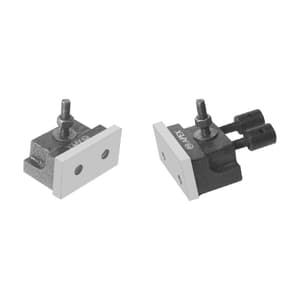

Apex 300 x 200 mm / 12 x 8 Inch Jaws for Compound Sliding Tables (Pair), 708 J-300x200

• The T-Slots are machined from Solid.
• Equipped with two-axis positioning.
• Dovetailed slides have adjustable steel gibs to compensate for wear.
• The surface table can swivel all around and 0° is marked to show the angular movement.
• The base has bolt slots for machine mounting.

Application:

• These precision built standard slide tables are essential for accurate boring drilling, grinding, and milling operations

Construction:

• Casting is the close Grey Iron dully stress relieved accurately machined and the ground surface provides tolerance well within 0.01 MM / 100 MM.
• Precision ACME feed screw is running in a hot-stamped phosphor Bronze Nut thrust color for smooth operation and minimum backlash.
• Suitable for the 708, 708s, 707, 707a.

Please Note that Products may differ eg. color, size from the product Image displayed on the website. Kindly check the specifications provided to make a better purchase decision.
