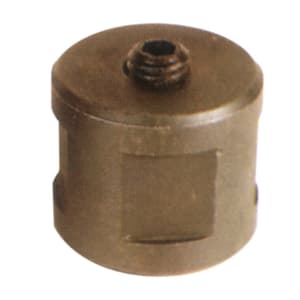

Apex 35 mm Separate Cylinder For Down Thrust Clamp, 906E - 35

• Occupies very little space due to its compact construction.
• Rapid clamping & unclamping by hand with a positive down thrust by means of threaded spindle & eccentric lever.
• Clamping height can be steplessly adjusted & increased simply by using height adjustment cylinders.
• Spring is provided for quick release of clamping pad.
• Eccentric lever gives clamping stroke of 1.5 mm to clamping pad which results in the downward thrust of 10000 N.
• Easy and quick clamping of the workpiece by swinging away from the clamping pad.
• Useful for mass production where clamping / declamping is to be done within a fraction of a second.
• Code 906 E: A height adjustable cylinder for increasing the clamping height is available.

Application:

• Due to fast clamping & unclamping with the positive downward force, it is widely used on machine tool pallets, NC machines etc. with or without T-nut. Used as a standard clamping element in the construction of fixtures.
• Any T slotted table or with a hole having M 12 threading on any machine.
