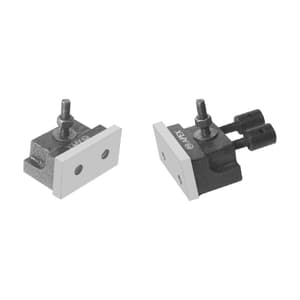

Apex 400 x 400 mm / 16 x 16 Inch Jaws for Compound Sliding Tables (Pair), 708J-400x400

• The T-Slots are machined from Solid.
• Equipped with two-axis positioning.
• Dovetailed slides have adjustable steel gibs to compensate for wear.
• The surface table can swivel all around and 0° is marked to show the angular movement.
• The base has bolt slots for machine mounting.

Application:

• These precision built standard slide tables are essential for accurate boring drilling, grinding, and milling operations

Construction:

• Casting is the close Grey Iron dully stress relieved accurately machined and the ground surface provides tolerance well within 0.01 MM / 100 MM.
• Precision ACME feed screw is running in a hot-stamped phosphor Bronze Nut thrust color for smooth operation and minimum backlash.
• Suitable for the 708, 708s, 707 , 707a.
