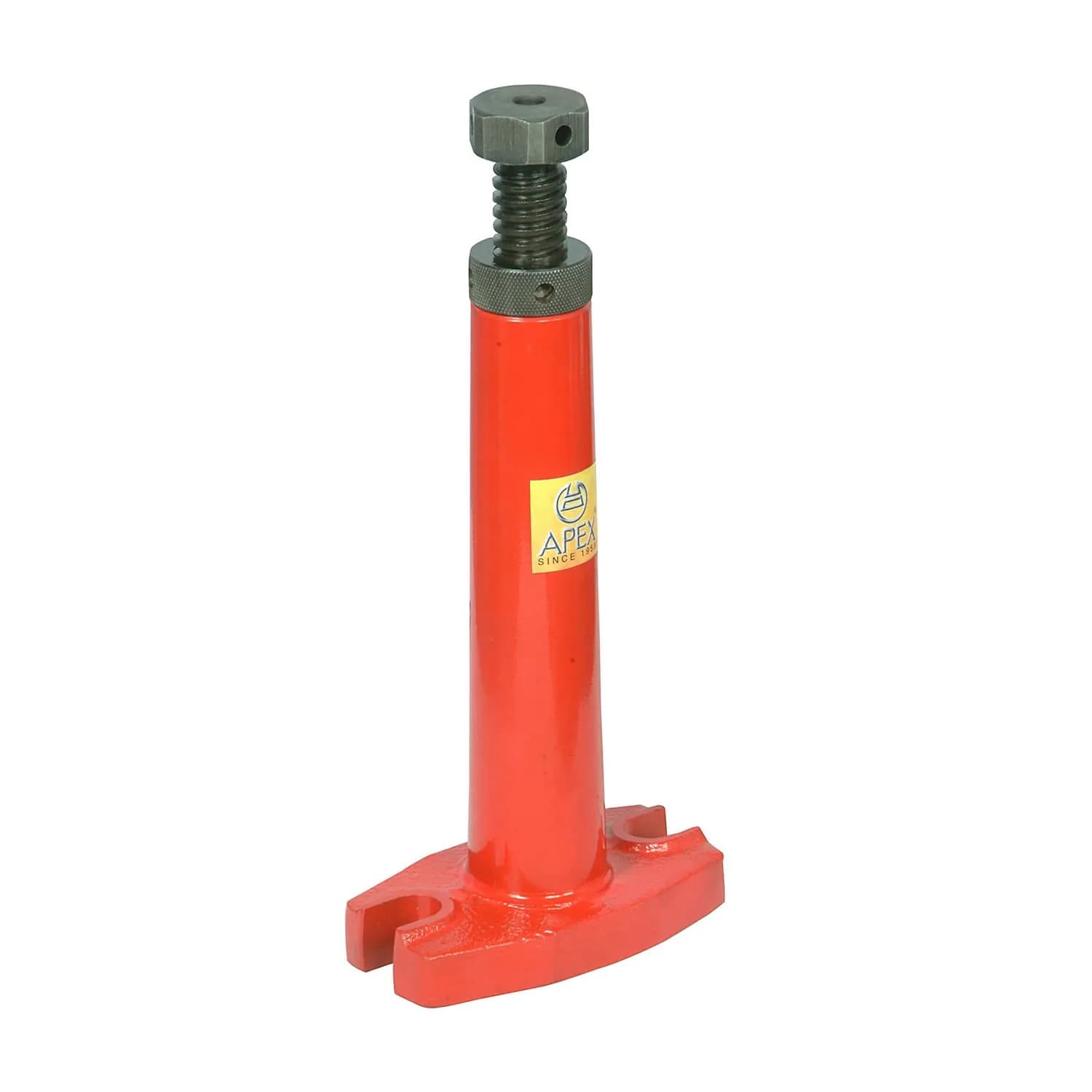

Apex 410 - 720 mm Heavy Duty Screw Jack with Brass Locking Screw, HD911-5
Roll over the image to zoom in
Key Features
- Product Type: Screw Jack
- Weight: 19.2 kg
- Range H1 H2 (mm): 410 - 720 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹16,239 (Incl. of all taxes)
₹13,762 + ₹2,477 GST (18%)
MRP was MRP ₹21,173
Save 35%
5 Business Days
1
–
Download Product LeafletNot available
Download Apex CatalogueNot available
Download Apex CatalogueNot available
Highlights
- Centering hole dia 12 mm
- Designed to be used for Heavy production shop.
- Useful completions for large clamping heights.
- Pads Code P911-8/14 and 9/26 can be used for safe locating of U- Clamps.
Please Note that Products may differ eg. color, size from the product Image displayed on the website. Kindly check the specifications provided to make a better purchase decision.
Specifications
| Range H1 H2 (mm) | 410 - 720 mm |
|---|---|
| Barrel Dia (mm) | 90 mm |
| Slot Width (mm) | 26 mm |
| Base (mm) | 190 x 220 mm |
| Static Load (kN) | 60 kN |
| Spindle | Carbon Steel Trapezoidal Thread |
| Housing | High Tensile SG Iron |
