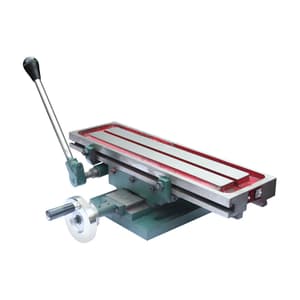

Apex 450 x 125 mm Profiling Milling & Slotting Slide, 722-450x125
Roll over the image to zoom in
Key Features
- Product Type: Machine Vice
- Weight: 33 kg
- Sizes (mm): 450 x 125 mm
- Size (Inches): 18 x 5 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹24,286 (Incl. of all taxes)
₹20,581 + ₹3,705 GST (18%)
MRP was MRP ₹31,663
Save 35%
5 Business Days
1
–
Download Product LeafletNot available
Download Apex CatalogueNot available
Download Apex CatalogueNot available
Highlights
- The Longitudinal movement is applied manually and can be adjusted as per job requirement by the adjustment of two end stops provided.
- Cross Traverse movement is applied through screw action provided with graduated wheel.
- Table is provided with T-Slot or mounting indexing and dividing head grooves are provided for passing the used coolant liquid to the tank.
Application:
- Versatile for use with many machines such as milling, slotting, drilling or shaping machines.
Please Note that Products may differ eg. color, size from the product Image displayed on the website. Kindly check the specifications provided to make a better purchase decision.
Specifications
| Sizes (mm) | 450 x 125 mm |
|---|---|
| Size (Inches) | 18 x 5 inch |
| Length of Stroke (in mm) | 115 mm |
| Longitudinal Travel (in mm) | 230 mm |
| Cross Travel (in mm) | 135 mm |
| Working Area of Table (in mm) | 400 x 90 mm |
| Size of T-Slot (in mm) | 10 mm |
| Wheel calibration (in inches) | .001 |
| Height Overall (in mm) | 140 mm |
