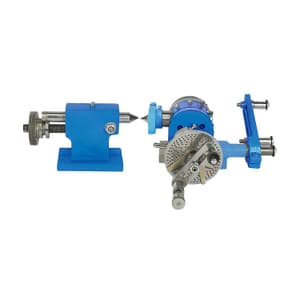

Apex 768 - 165 mm Universal Dividing Head
Roll over the image to zoom in
Key Features
- Product Type: Machine Vice
- Weight: 95 kg
- Vice Type: Universal Dividing Head
- Center Height: 165 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹64,799 (Incl. of all taxes)
₹54,914 + ₹9,885 GST (18%)
MRP was MRP ₹84,483
Save 35%
5 Business Days
1
–
Download Product LeafletNot available
Download Apex CatalogueNot available
Download Apex CatalogueNot available
Highlights
The dividing head can divide in any angle by direct, indirect, or different methods. The ratio between the warm and the warm gear is 1:40.
Please Note that Products may differ eg. color, size from the product Image displayed on the website. Kindly check the specifications provided to make a better purchase decision.
Construction:
- The body is made of close-grained cast iron precisely machined to close accuracies.
- The swivel clamping pad is made from aluminum which helps eliminate any damage to the measuring device.
Number of Indexing:
- Side A: 11, 16, 19, 25, 37, 41, 49
- Side B: 13, 17, 18, 27, 33, 43, 51.
Please Note that Products may differ eg. color, size from the product Image displayed on the website. Kindly check the specifications provided to make a better purchase decision.
Specifications
| Vice Type | Universal Dividing Head |
|---|---|
| Center Height | 165 mm |
| Worm Gear Ratio | 1:40 |
| Spindle Bore Size (in mm) | 38 to 75 mm |
| Spindle Taper Degree | 9 |
| Overall Height Vertical Position in mm | 325 mm |
| Length of Base in mm | 29 mm |
| Width of Base in mm | 215 mm |
| Gear Set D.P. | 12 |
| Set of Gears | 24, 24, 28, 32, 36, 40, 44, 48, 56, 64, 72, 86, 100 |
| Finish | Powder Coated |
