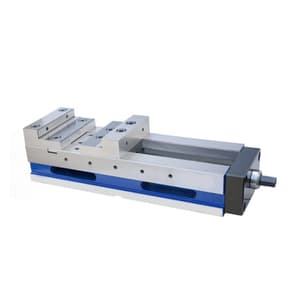

Apex 792 - 150 mm / 6 inch Precision High Grip Machine Vice
Roll over the image to zoom in
Key Features
- Product Type: Machine Vice
- Weight: 40 kg
- Sizes (mm): 150 mm
- Size (Inches): 6 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹61,031 (Incl. of all taxes)
₹51,721 + ₹9,310 GST (18%)
MRP was MRP ₹79,570
Save 35%
5 Business Days
1
–
Download Product LeafletNot available
Download Apex CatalogueNot available
Download Apex CatalogueNot available
Highlights
- Hi-Grip Machine Vice designed for Precision Milling, Grinding & Widely used with CNC Machining Center.
- High-Grade FCO 60 Ductile Iron Body, Grounded Top & Bottom.
- Bed Height Matched with Multiple Vice Orders.
- High Alloyed Quality Resistance Steel, Case Hardened HRC 60 ± 2 is used in Clamping Jaws to give High Performance & No Wear.
- Accuracy in Parallelism & Squatness with in 0.002/100 mm.
- Interchangeable Jaws Plates.
- Tenon Tenon Slots Provided for Effortless Truing of Vice on Machine Table.
- High Clamping Force can be achieved by Effortless Handle Movement which eliminates Hammering on vice Handle.
Standard Accessories:
- 4x Side Clamps
- 1x Box Wrench
- 2x Positioning Key Nuts
- 1x Work Stopper
Please Note that Products may differ eg. color, size from the product Image displayed on the website. Kindly check the specifications provided to make a better purchase decision.

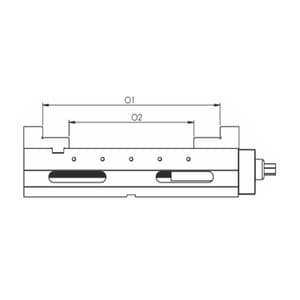

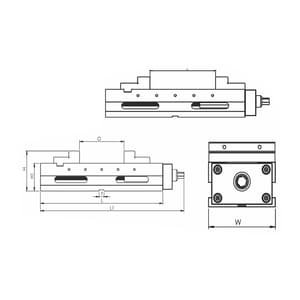

Specifications
| Sizes (mm) | 150 mm |
|---|---|
| Size (Inches) | 6 inch |
| Length (mm) | 450 mm |
| Height (mm) | 130 mm |
| L1 (mm) | 528 mm |
| H1 (mm) | 90 mm |
| O (mm) | 210 mm |
| 01 (mm) | 372 mm |
| 02 (mm) | 262 mm |
| Thickness (mm) | 18 mm |
| Max. Clamping Pressure (Kg) | 5000 Kg |
