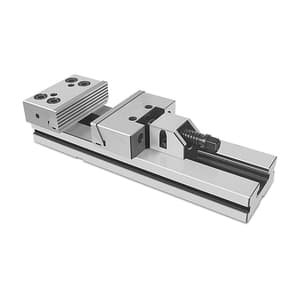

Apex 793 - 100 x 165 mm High Precision Modular Vice

• Modular Vice designed for precision milling, grinding and widely used with CNC Milling Machines.
• Both Jaw Plates are in pull-down angle. This ensures, during the clamping operation a down load run of the workpiece against the vice base and thus a precise and safely clamping.
• All components of vice are interchangeable with perfect alignment to provide different work to hold solutions.
• The space-saving design and solid construction allow a maximum blocking ratio to total overall dimension of the vice.
• Four extra tapped hole with ground back jaw rear face increase maximum opening capacity with the addition of jaws extensions.
• High alloyed quality resistance steel, case hardened HRC 60 ± 2 is used in all body and accessories of vice to give maximum rigidity, high performance & no wear
• Same Bed High Maintained for gang milling operations.

Standard Accessories:

• 1x Work Stopper
• 1x Pair of standard 16 mm positioning key nuts
• 4x Clamps
• 1x T Allen key
• 1x Box wrench
