Atago 1.000 to 1.400 Digital Hydrometer, DH-10C

Shop all Atago

SKU: LA.HY.SU.00001

Model: DH-10C

Roll over the image to zoom in


Key Features

  • Product Type: Suction-Type Refractometer
  • Weight: 235 g
  • Range: 1.000 to 1.400 (Specific Gravity of Battery)
  • Sample Camber Temperature: -10 to 50°C
  • Resolution: 0.001
See all product information

ToolBuy Benefits

₹1,25,080 (Incl. of all taxes)

₹1,06,000 + ₹19,080 GST (18%)



7 Business Days

1

Download Product LeafletNot available
Download Atago CatalogueNot available

Highlights

  • This model is specifically designed for measuring specific gravity of battery sulfuric acid.
  • The DH-10C allows users to easily measure the concentration of sulfuric acid without coming in contact with this highly corrosive acid.
  • Cleaning and zero-setting can be done with tap water.
  • Single-handed operation without contact liquids


Accuracy:

  • ±0.002 (10 to 30°C)
  • ±0.003 (0 to 10 and 30 to 40°C)
  • ±0.005 (-10 to 0 and 40 to 50°C)

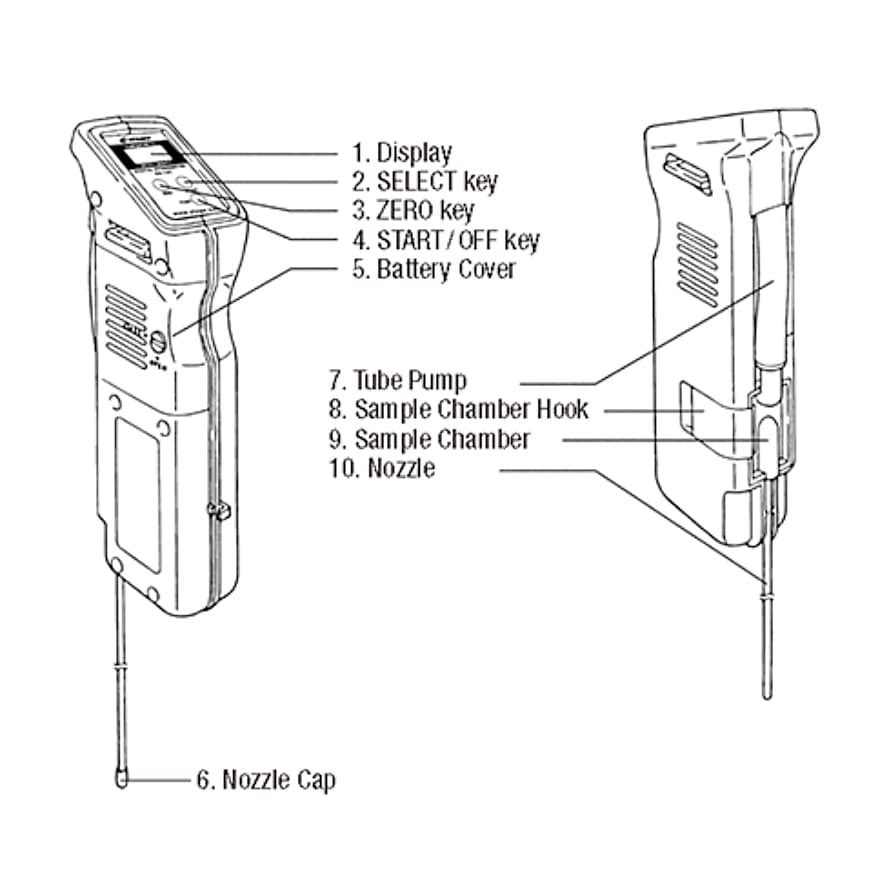

Names & Functions of Parts:

  • Display: The liquid crystal display provides a digital readout of the measured values
  • SELECT Key: Used to select a measurement Item. The item to be displayed switches between TEMPERATURE and MEASURE each time this key is pressed. (Specific gravity of electrolyte)
  • ZERO Key: Used for zero-setting
  • START/OFF Key: Press to take a measurement, To turn off the insturnent. press and hold down the key for 2 seconds.
  • Battery Cover: Remove to insert or to change the battery.
  • Nozzle Cup: Used to protect the tip of the nozzle

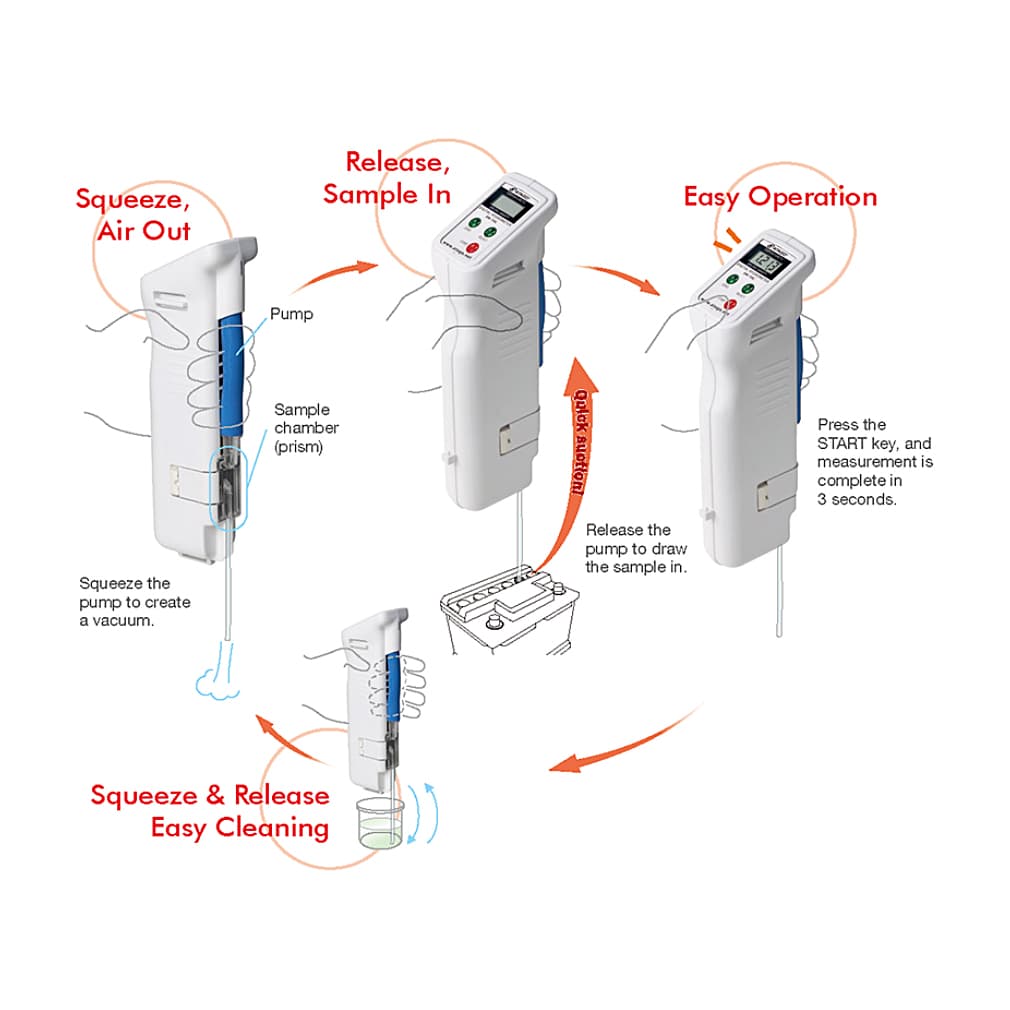

  • Tube Pump: The tube pump is made of rubber. Squeeze and released the Tube pump to remove the sample
  • Sample Chamber Hook: Used to hold the sample chamber in place.
  • Sample Chamber: The removed sample is stored in the sample chamber for measurement
  • Nozzle: The sample is extracted through the Nozzle


Package Content:

  • 1x Digital Hydrometer
  • 1x 95 mm stainless pipe
  • 1x  95 mm silicon tube


Why choose the ATAGO?

  • Proud Heritage and Experience: ATAGO has over 70 years of experience in optical instrument manufacturing. With our expertise cultivated over decades, as well as an extensive selection of instruments, we can meet a variety of measurement needs including highly specialized industries.
  • Industry-Leading Technology: Refraction of light has been our sole specialty throughout the existence of ATAGO and we strive for perfection in optical systems. We listen to end-user feedback from 154 countries and continuously push the limit of refractometry.
  • Trusted Product Support: We dedicate ourselves on the high durability and low failure rate of ATAGO products. Our repair service is carried out in a timely manner. Calibration certificates are available.
  • Made with Japanese Quality

Notes:
  • All ATAGO products are designed and manufactured in Japan.
  • ATAGO products comply with HACCP, GMP, and GLP system standards.
  • Specifications and appearance are subject to change without notice.

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Atago 1.000 to 1.400 Digital Hydrometer, DH-10C
Range1.000 to 1.400 (Specific Gravity of Battery)
Sample Camber Temperature-10 to 50°C
Resolution0.001
Temperature Compensation5 to 40°C
Sample Volume2mL
Power Supply006P Alkaline Battery (9V)
Cat.No.3446
Dimensions (cm)7 x 4 x 21 cm
