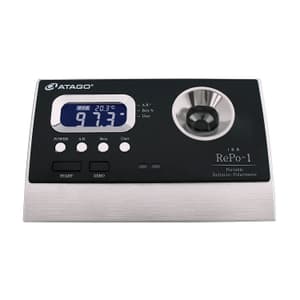

Atago 2 in 1 Portable Refracto-Polarimeter, RePo-1

Shop all Atago

SKU: LA.RE.PO.00003

Model: RePo-1

Roll over the image to zoom in


Key Features

  • Product Type: Portable Polarimeter
  • Weight: 325 g
  • International Sugar Scale Range (ISS): -130 to +130°Z
  • Brix: 0 to 85%
See all product information

ToolBuy Benefits

₹2,16,412 (Incl. of all taxes)

₹1,83,400 + ₹33,012 GST (18%)



7 Business Days

1

90275030

Download Product LeafletNot available
Download Atago CatalogueNot available

Highlights

Brix can only indicate the overall amount of dissolved solids in a solution. With REPO-1, it is possible to determine if a product has been adulterated by measuring the optical rotation. Announcing an All-in-One, refractometer and polarimeter hybrid unit. As little as 3mL sample, Repo-1 can measure both brix and optical rotation of the sample. With the press of a button, purity, international sugar scale, specific rotation, and concentration can be displayed. Users can also set an upper and lower measurement limit. An indicator light alerts the user if a measurement value is within the limits, allowing for optimal efficiency.


Features:

  • The world's first and only 2 in hybrid device: combining a refractometer and polarimeter.
  • The compact and portable size makes it useful for taking measurements at manufacturing sites, as well as in laboratories.
  • As a polarimeter, it does not require an observation tube or any sample preparation before measurement (apart from dilution when required).
  • Needs a very small amount of sample compared to other polarimeters.
  • Can be washed under running water which saves the time and trouble of cleaning.
  • The Magic adapter helps to avoid measurement troubles with volatile samples.



2 in 1:
Brix alone can only indicate the overall amount of dissolved solids in a solution. With REPO-1, it is possible to determine if a product has been adulterated by measuring the optical rotation. For example, fructose rotates light to the left while glucose rotates light to the right. If a sample has been adulterated with glucose, it will make the optical rotation readings appear more positive than a pure solution.

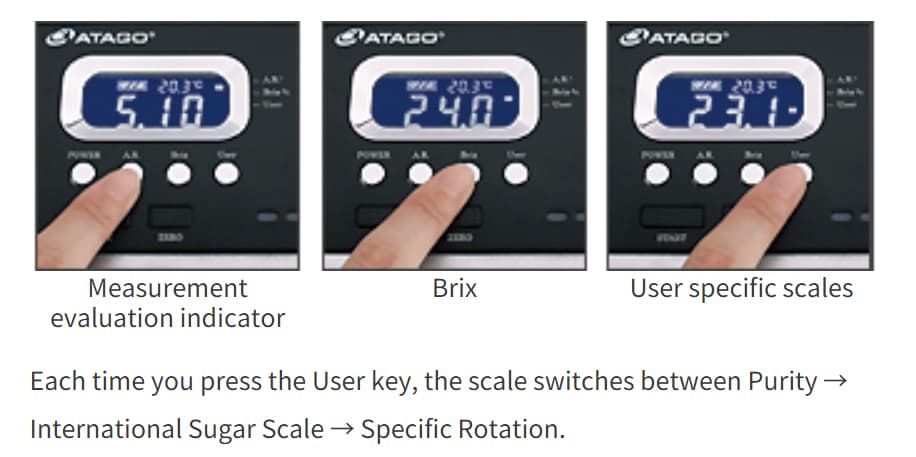

Automatically calculated scales:
Press "User" to select the desired scale: Purity, International Sugar Scale, Specific Rotation, and Concentration.

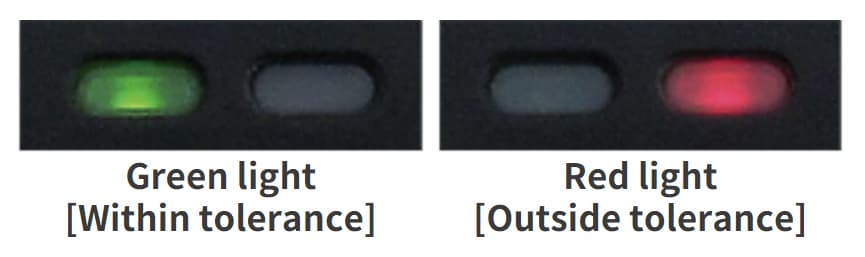

Evaluation Function:
Measurements are evaluated against pre-set tolerancelimits, and the result is indicated by green or red light. (Upper and lower tolerance limits must be set in advance to using this function)


Technical Data:

Resolution
  • Angle of Rotation: 0.01°
  • Brix: 0.1%
  • International Sugar Scale: 0.1°Z
  • Temperature: 0.1°C
Accuracy
  • Angle of Rotation: ±0.1°(20°C)
  • International Sugar Scale: 3°Z,
  • Brix: ±0.2%
  • Temperature: ±1°C
Temperature compensation
  • Brix: 15 to 40°C,
  • Purity: 18 to 40°C,
  • International Sugar Scale: 18 to 40°C


Applications:

Sugar industries
Analyzing fragrances
Analyzing inverted sugar syrups
Honey industries
Medicine


Measuring Method:

 Fill the sample stage up to the fill line (approx.3mL)
Press START
Measurement is displayed


Why choose the ATAGO?

  • Proud Heritage and Experience: ATAGO has over 70 years of experience in optical instrument manufacturing. With our expertise cultivated over decades, as well as an extensive selection of instruments, we can meet a variety of measurement needs including highly specialized industries.
  • Industry-Leading Technology: Refraction of light has been our sole specialty throughout the existence of ATAGO and we strive for perfection in optical systems. We listen to end-user feedback from 154 countries and continuously push the limit of refractometry.
  • Trusted Product Support: We dedicate ourselves on the high durability and low failure rate of ATAGO products. Our repair service is carried out in a timely manner. Calibration certificates are available.
  • Made with Japanese Quality

Notes:
  • All ATAGO products are designed and manufactured in Japan.
  • ATAGO products comply with HACCP, GMP, and GLP system standards.
  • Specifications and appearance are subject to change without notice.

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Atago 2 in 1 Portable Refracto-Polarimeter, RePo-1
International Sugar Scale Range (ISS)-130 to +130°Z
Brix0 to 85%
Angle of Rotation-5.00°
Temperature Range15.0 to 40.0°C
Light SourceLED
Measurement Time12 Seconds
Power Supply4x AAA Alkaline Battery
International Protection ClassIP67
Cat. No.5010
Dimensions (cm)10.1 x 16.0 x 3.8 cm
