Baker 0 - 25 mm External Spline Micrometer (Dia. 3 mm x L 8 mm Carbide Measuring Faces), MMC25 - S3
Roll over the image to zoom in
Key Features
- Product Type: Spline Micrometer
- Range (mm): 0 - 25 mm
- Reading: 0.01 mm
- D: 3 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,835 (Incl. of all taxes)
₹4,945 + ₹890 GST (18%)
MRP was MRP ₹6,030
Save 18%
3 Business Days
1
90173029
Download Product LeafletNot available
Download Baker CatalogueNot available
Download Baker CatalogueNot available
Highlights
- Spindle made from stainless steel for rust prevention
- Easy zero setting on sleeve
- An in-built ratchet in the thimble
- Sharp laser marking for better visibility & durability
- Robust design withstands the toughest workshop conditions
- Heat insulating grip plates cover the entire handling portion of the micrometer frame
Carbide Tipped Measuring faces:
- Ø2 x 5 mm
- Ø3 x 8 mm

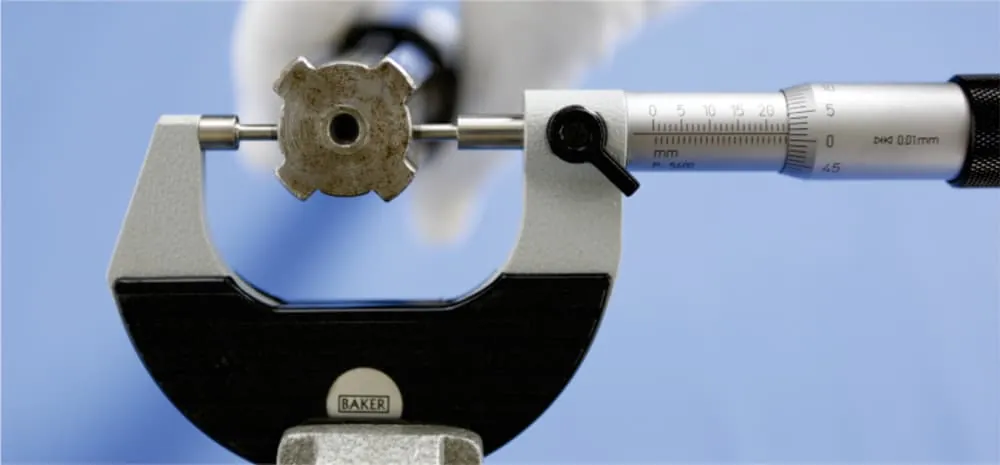

For measuring recesses, grooves, splines, key-ways and small parts. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (mm) | 0 - 25 mm |
|---|---|
| Reading | 0.01 mm |
| A | 7.1 mm |
| B | 57.5 mm |
| C | 30.5 mm |
| D | 3 mm |
| E | 8 mm |
