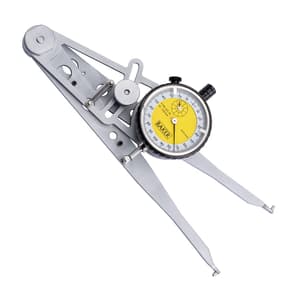

Baker 10 - 120 mm Internal Groove Caliper, IGC10
Roll over the image to zoom in
Key Features
- Product Type: Dial Calipers
- Weight: 500 g
- Range (mm): 10 - 120 mm
- Reading: 0.010 mm
- Graduation: 0-100-0
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹20,097 (Incl. of all taxes)
₹17,031 + ₹3,066 GST (18%)
MRP was MRP ₹20,770
Save 18%
2 Business Days
1
–
Download Product LeafletNot available
Download Baker CatalogueNot available
Download Baker CatalogueNot available
Highlights
- Adjustable frame mechanism.
- Internal caliper gauge to measure internal diameter of cylindrical workpiece and groove diameters.
- It can measure groove diameter of ” o” ring by modifying spare contact point.
- Set dimension within ± 5 mm (indicating range 10 mm) can be comparatively measured by alternatively using spare contact points in accordance with measured dimensions.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (mm) | 10 - 120 mm |
|---|---|
| Reading | 0.010 mm |
| Graduation | 0-100-0 |
| Indicating Range | ± 5 mm |
| Indicating Error | ± 0.030 mm |
| Max. Measuring Depth (A) | 50 mm |
| Entry Diameter (D) | 10 mm |
| Groove Depth | 10 mm |
| Minimum Groove Width (B) | 2.5 mm |
| Contact Point (H) | 2, 3, 4, 5, 6, 7, 8, 9, 10 |
