Baker 150 mm / 6 inch Vernier Caliper Without Fine Adjustment (VC Series), VC10

Shop all Baker

SKU: ME.CA.VE.00077

Model: D85079000, VC10

Roll over the image to zoom in

Visit Baker Store

Key Features

  • Product Type: Vernier Caliper
  • Range (mm): 0 - 150 mm
  • Range (Inches): 0 - 6 inch
  • Reading: 0.02 mm / 0.001 inch
See all product information

ToolBuy Benefits

₹2,090 (Incl. of all taxes)

₹1,771 + ₹319 GST (18%)

MRP was MRP ₹2,160

Save 18%

2 Business Days

1

–

Download Product LeafletNot available
Download Baker CatalogueNot available

Highlights

VC series Mechanical Vernier calipers available from 0-130mm to 0-300mm. Measures OD, ID, Step and Depth. Robust, hardened and ground SS jaws & beam.

Features:

  • Every gauge carries a calibration certificate giving actual values
  • With 0.02 mm / 0.001” Least Count
  • Measures OD, ID, Step and Depth
  • Accuracy as per DIN 862
  • Robust, Hardened and Ground stainless steel jaws and beam

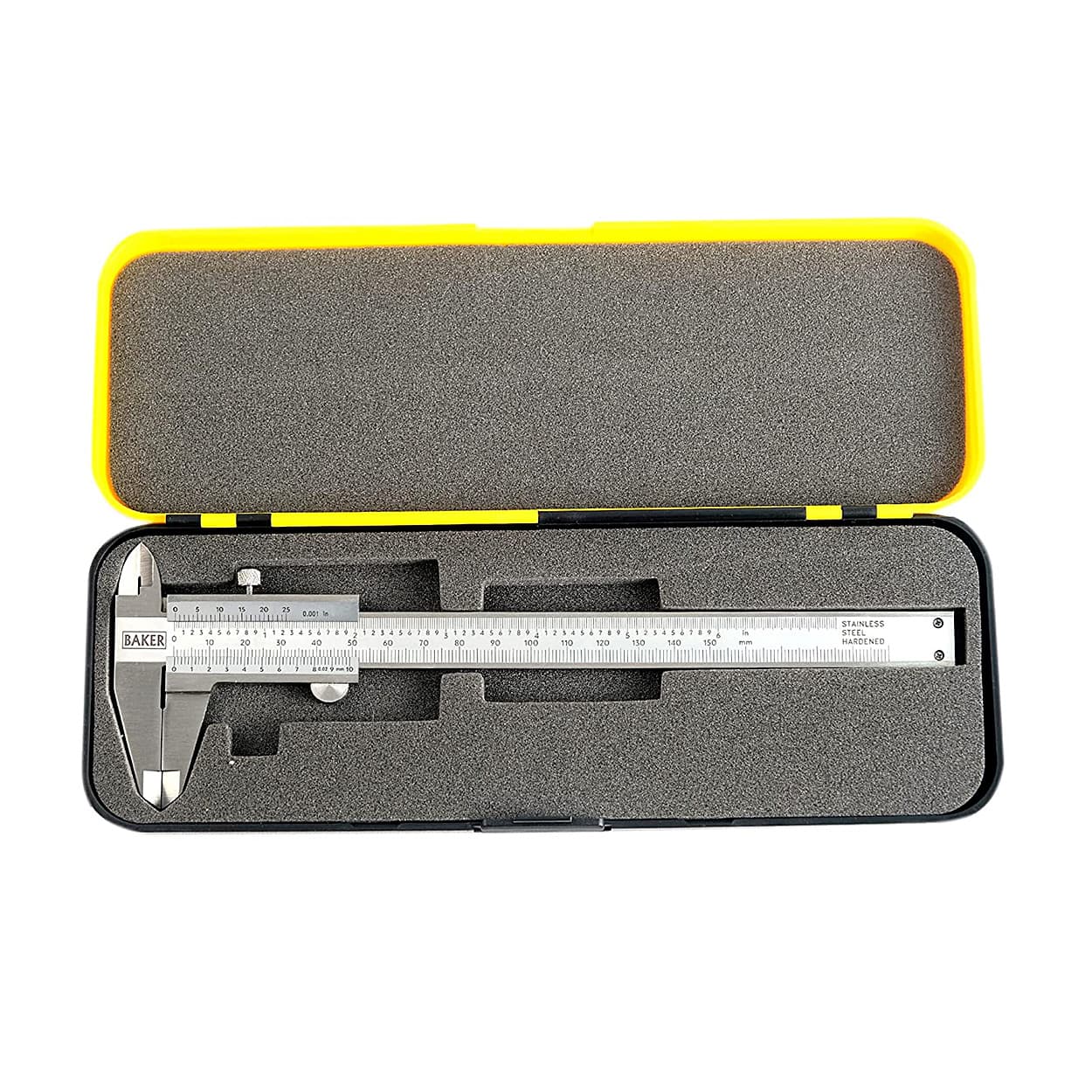

  • Supplied in a sleek plastic box


How To Read A Caliper:



  • Read the value of the main (stationary) scale which is just to the left & above the “0” zero reading on the vernier (movable) scale
  • Then add the value on the vernier (movable) scale which exactly coincides with a line on the main (stationary) scale

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Baker 150 mm / 6 inch Vernier Caliper Without Fine Adjustment (VC Series), VC10
Range (mm)0 - 150 mm
Range (Inches)0 - 6 inch
Reading0.02 mm / 0.001 inch
MaterialStainless Steel
