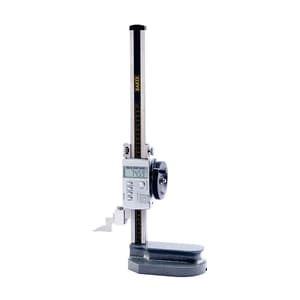

Baker 300 mm / 12 inch Feed Wheel Type Digital Height Gauge, DH300
Roll over the image to zoom in
Key Features
- Product Type: Height Gauge
- Range (mm): 0 - 300 mm
- Range (Inches): 0 - 12 inch
- Reading: 0.01 mm / 0.0005 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹26,183 (Incl. of all taxes)
₹22,189 + ₹3,994 GST (18%)
MRP was MRP ₹27,060
Save 18%
2 Business Days
1
–
Download Product LeafletNot available
Download Baker CatalogueNot available
Download Baker CatalogueNot available
Highlights
- Robustly constructed, stainless steel column with clearly marked scale graduation
- A clear multifunction digital LCD display runs smoothly on an analogue vertical scale
- Fine adjustment with lock provided for ease of setting
- For easy and precise maneuverability, the base has a specially designed thumb grip
- Supplied with Carbide tipped scriber
- Inch / Metric capability
- Functions consist of power ON/OFF, absolute / incremental mode, mm/in., preset & hold, and tolerance setting
- Powered by easily replaceable silver oxide battery (Type SR44,1.55V)
- Operating environment:- Temperature 5 to 45 °C, Humidity _<80% RH
- Each gauge carries a calibration certificate giving actual values
- Measurement and transfer of heights, scribing and marking of work pieces and other measurements like run out, center distance, etc. by using a lever-type dial indicator
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Type of Product | Digimatic Height Gauge |
|---|---|
| Range (mm) | 0 - 300 mm |
| Range (Inches) | 0 - 12 inch |
| Reading | 0.01 mm / 0.0005 inch |
| Display | LCD |
| Material | Stainless Steel |
| Power Supply | Silver Oxide Battery |
| Operating Temperature | 5° to 45° C |
