Bosch 120 Mtr Professional Line Laser, GLL3-80
Roll over the image to zoom in
Key Features
- Product Type: Line Lasers
- Weight: 0.82 kg
- Laser Class: 2
- Colour laser line: Red
- Working Range Value: 30 m
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹40,829 (Incl. of all taxes)
₹34,601 + ₹6,228 GST (18%)
MRP was MRP ₹56,500
Save 39%
3 Business Days
1
–
Download Bosch CatalogueNot available
Highlights
- 3 x 360° for visibility on a new level
- High visual clarity is provided by high-powered diodes.
- 3 x 360° lines allow for simultaneous horizontal and vertical levelling applications for highly efficient work.
- The intuitive user interface offers easy operation.
- Pendulum lock for safe transport
- 2 modes self-levelling mode and lock mode
- Intuitive keypad for easy mode selection and receiver function activation
- Receiver mode for high working range up to 120m (diameter). Compatible to new LR 7 and LR 6 Professional receivers
- 1/4 inch and 5/8 inch tripod thread for compatibility with all accessories. Works additionally also with new RM 2 Professional
Product Highlights:
The line laser GLL 3-80 Professional projects 3 x 360° lines for next level visibility. High visual clarity is provided by high-powered diodes. This tool's 3 x 360° lines allow for simultaneous horizontal and vertical levelling applications around the entire room for highly efficient work, while the tool´s intuitive user interface offers easy operation.
Equipment & Application:

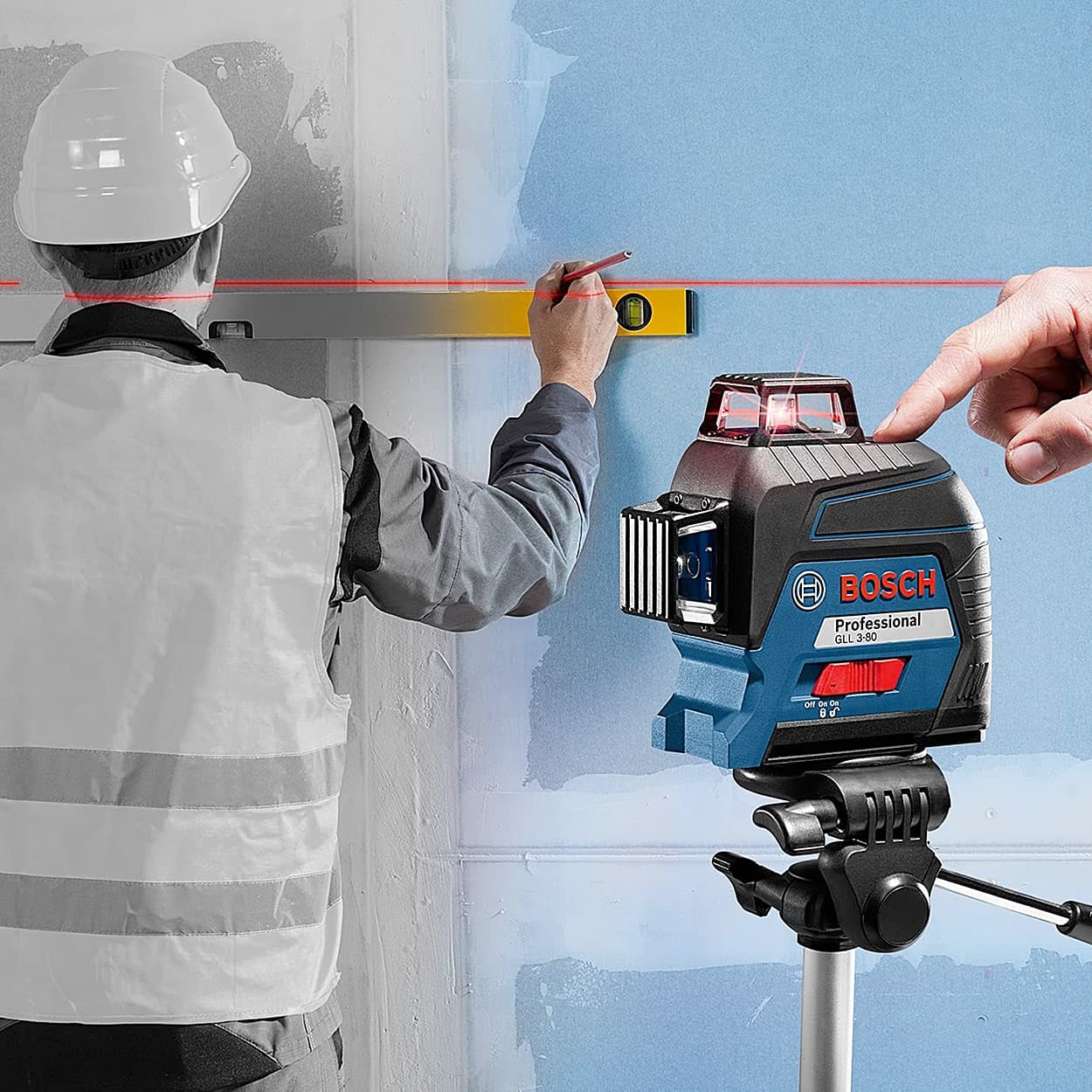

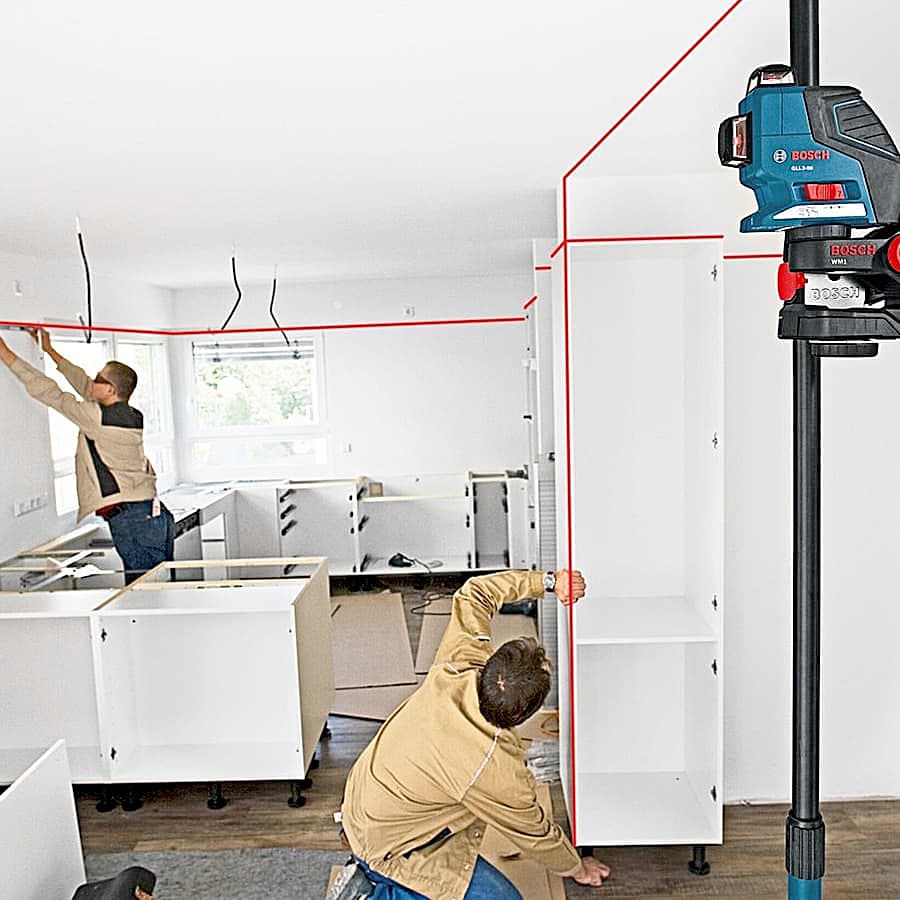

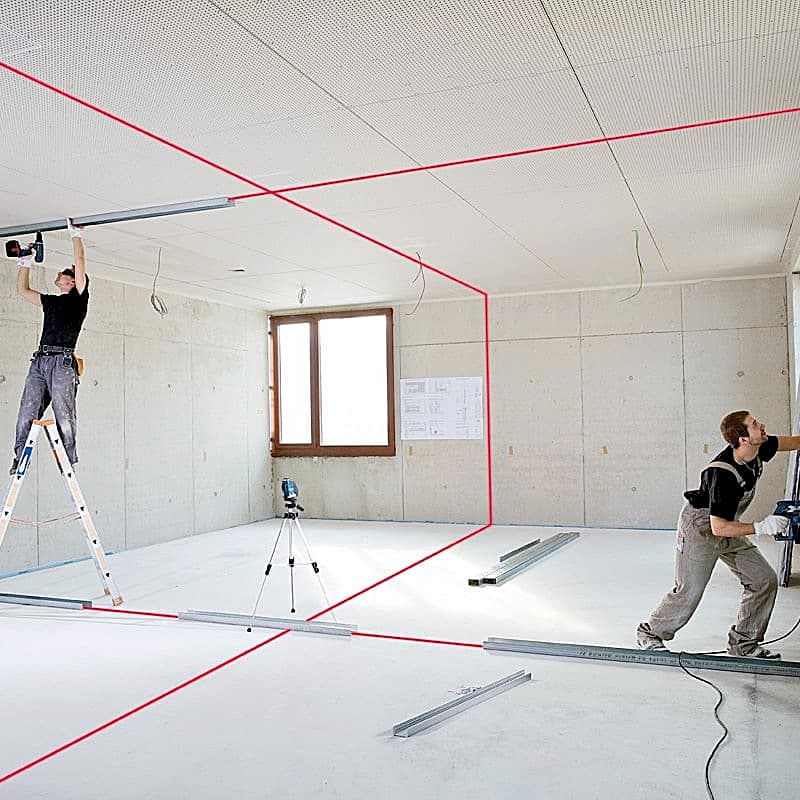

This line laser was developed for suspending drop ceilings, building floors, installing windows, mounting shelves, laying drainage pipes, building framework for drywall, and laying tiles.
Additional Information:
The GLL 3-80 Professional is perfect for fast self-levelling and it is capable of self-levelling on non-level surfaces up to +/- 4° in less than 4 seconds with excellent precision of ± 0.3 mm/m*/**. It has a working range of up to 120 m when using the optional LR 6 or LR 7 Professional receiver. This line laser is compact, easy to handle, and extremely robust (IP54).
Functions:
 |
Laser class
Class 2 lasers are considered safe for normal operation. Please do not stare directly into the beam. |
 |
Higher working range
Working with reciever for higher working range. |
 |
Power supply
Power supply 4 x AA Batteries |
 |
Dust Protection
IP 54 Dust and Splash protection. |
 |
Tripod Mount
Tripod mount for 5/8 and 1/4" tripod thread. |
 |

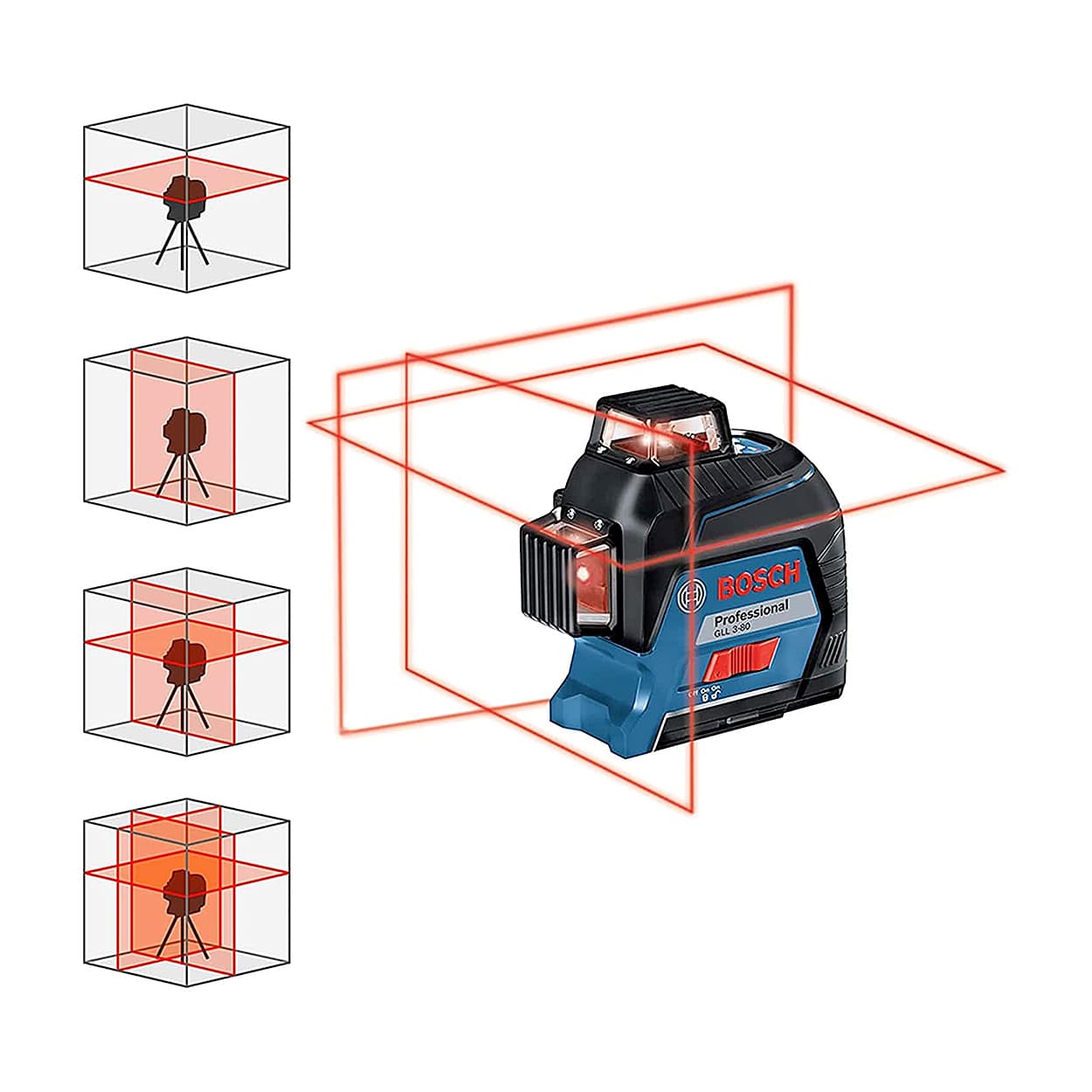

Projection
3 x 360° lines projection. |
 |

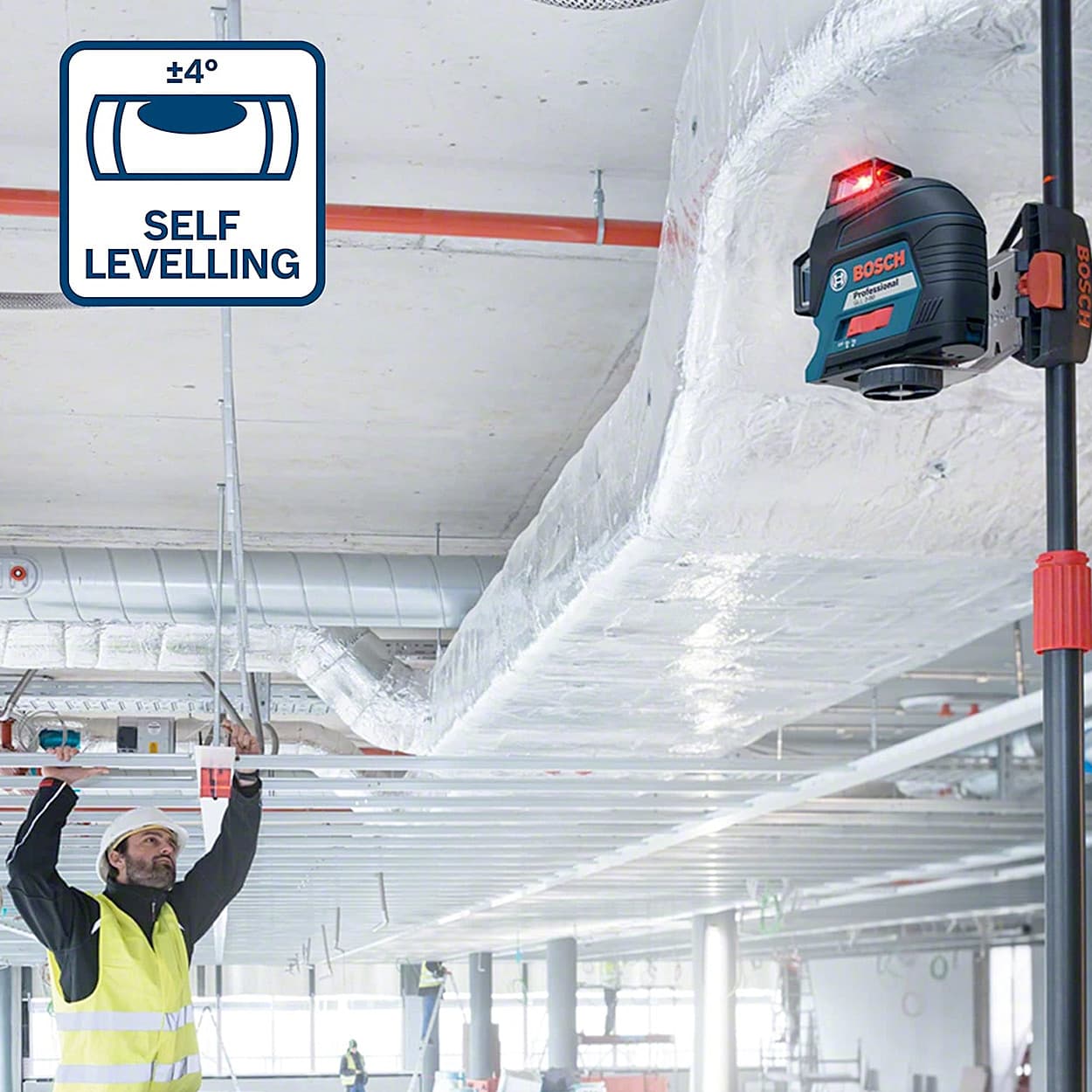

Self Levelling
Has a self levelling range of ± 4°. |
 |
Levelling Accuracy
Levelling accuracy. |

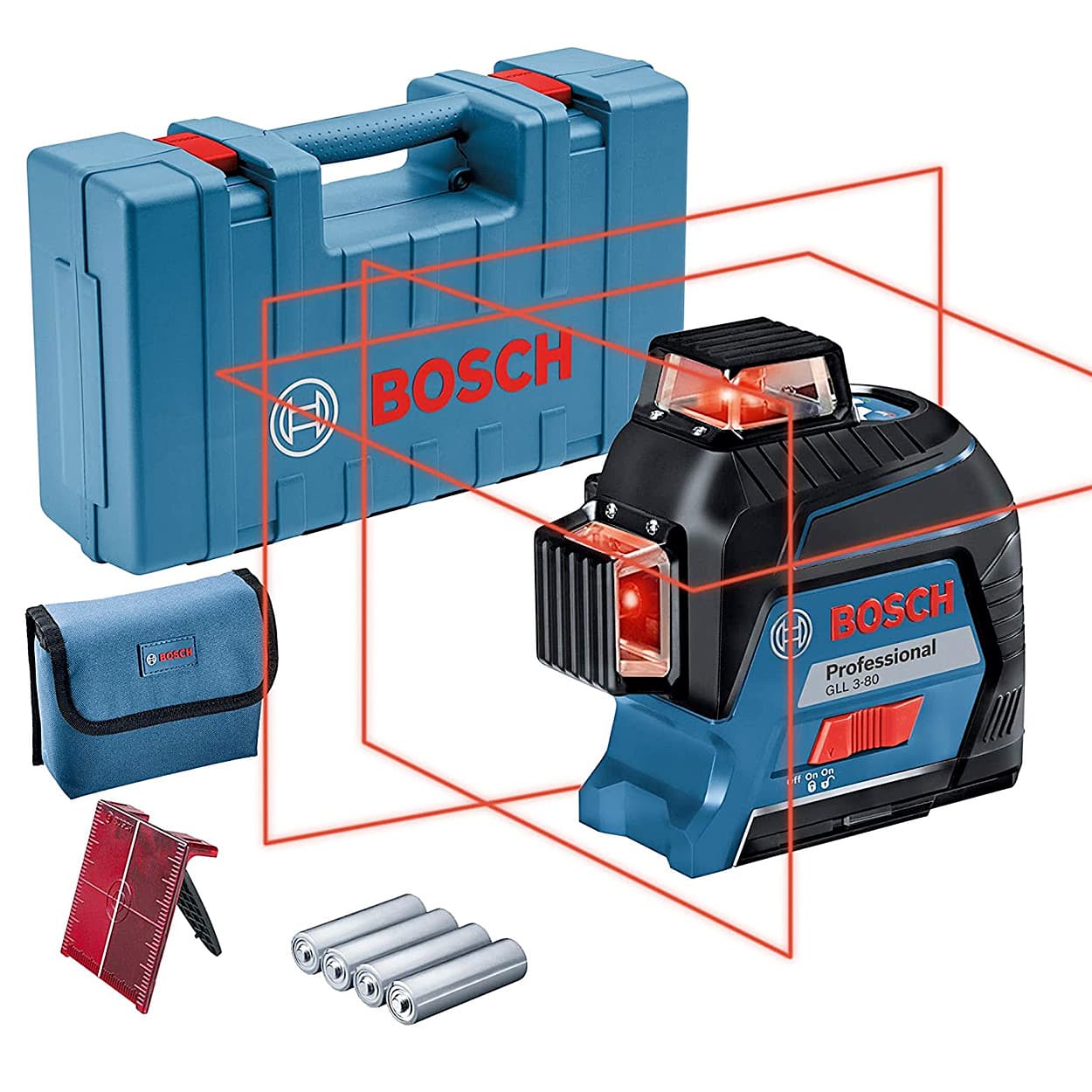

What’s Included in this Package:
| GLL 3-80 Professional Order number: 0 601 063 S00 |
| 4 Unit x 1.5 V LR6 battery (AA) |
| Laser target plate |
| Pouch |
| Carrying case |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Working Range with Receiver Value | 120 m |
|---|---|
| Projection | 3 x 360° line |
| Operating Temperature | -10 – 40 °C |
| Storage Temperature | -20 – 70 °C |
| Working Range with Receiver | Up to 120 m |
| Working Range without Receiver | Up to 30 m |
| Laser Diode | Line: 630 - 650 nm, < 10mW |
| Power supply | 4 x 1.5 V LR6 (AA) |
| Operating Time (max.) | 4 h in 3-line mode |
| Working Range | Up to 30 m |
| Laser Class | 2 |
| Self-levelling Range | ± 4° |
| Levelling Time | 4 s |
| Dust Splash Protection | IP 54 |
| Tripod Thread | 1/4", 5/8" |
| Colour laser line | Red |
| Compatible Laser Receivers | LR 6 + 7 |
| Working Range Value | 30 m |
| Accuracy | +/- 0.3 mm/m / (for the four horizontal intersection points ; plus use-dependent deviation) |
