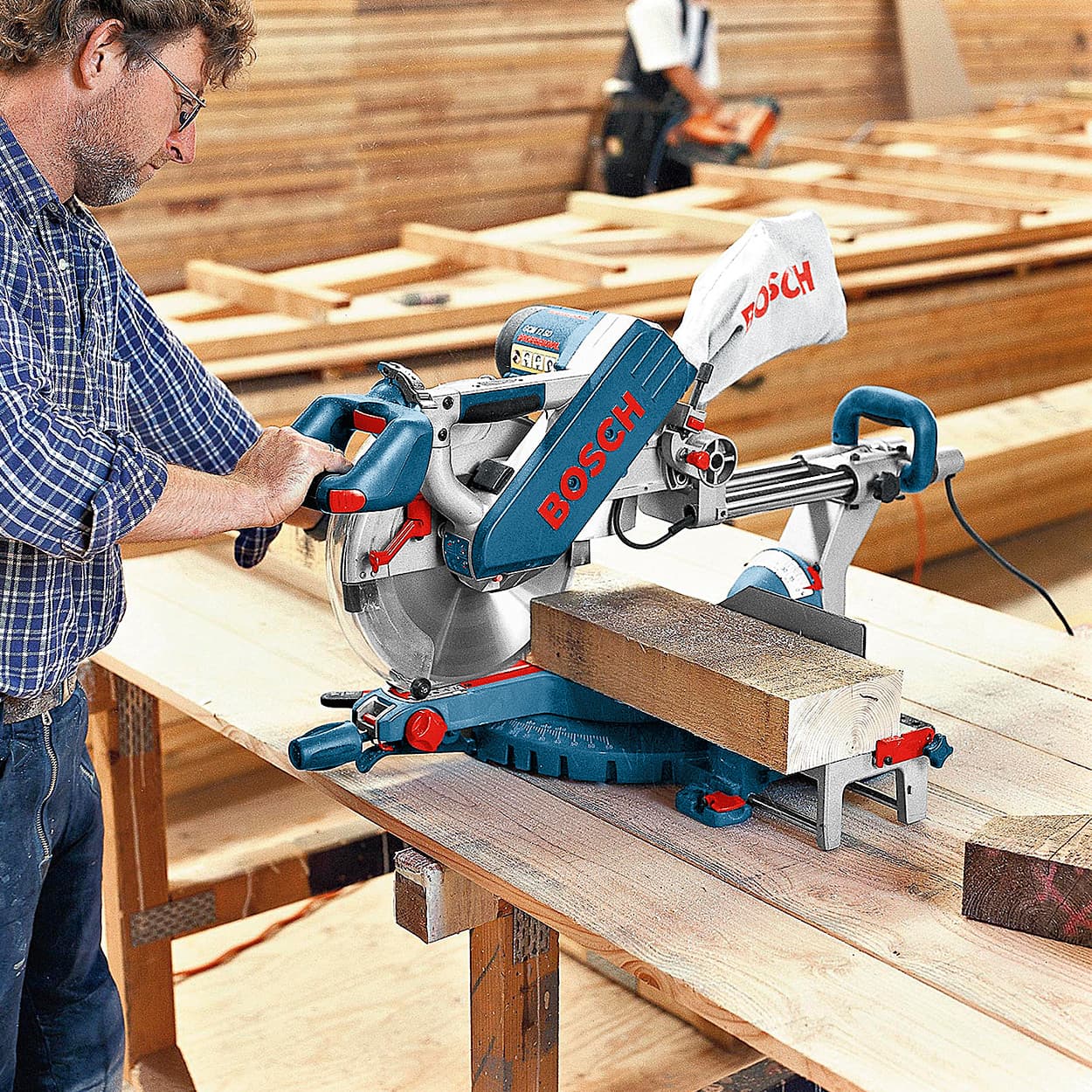

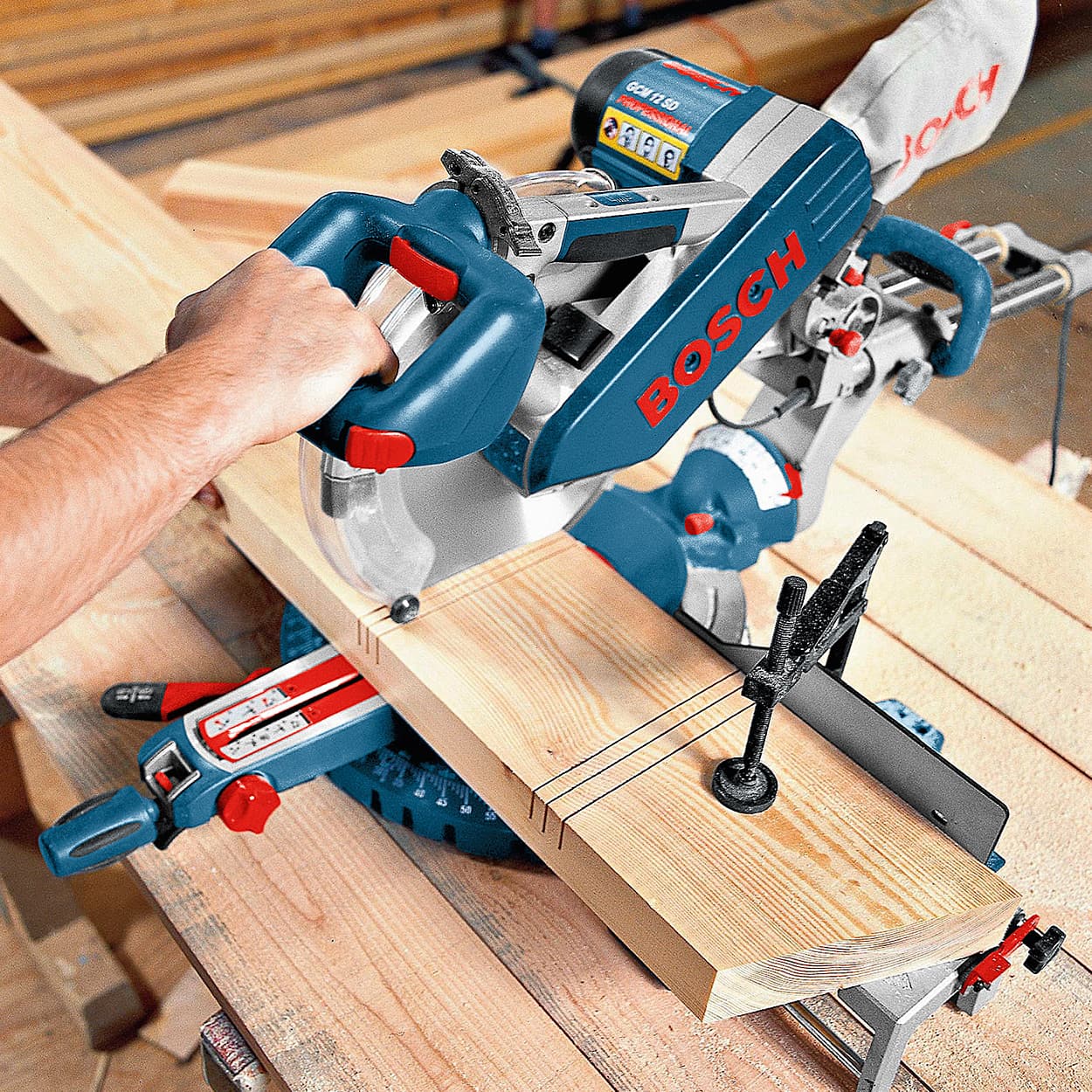

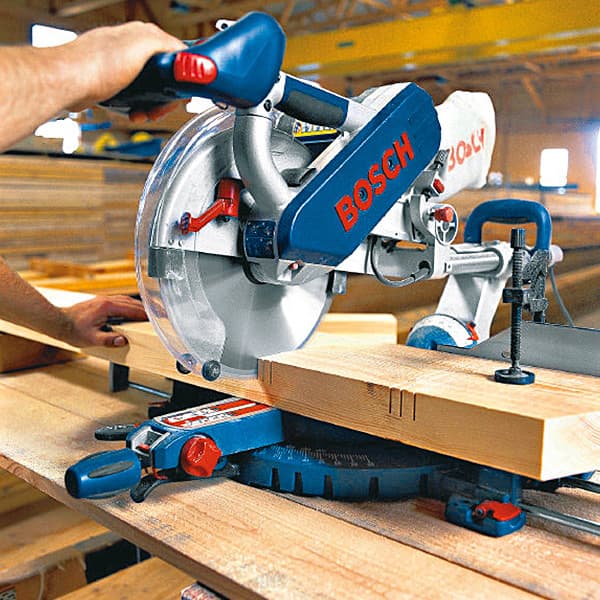

Bosch 305mm 1800W Dual-Bevel Glide Mitre Saw, GCM 12 SD

Shop all Bosch

SKU: PO.CU.MI.00036

Model: GCM12SD

Roll over the image to zoom in


Key Features

  • Product Type: Mitre Saw
  • Weight: 29.1 kg
  • Wheel Dia: 305 mm
  • Speed (RPM): 3800 rpm
  • Rated input power: 1800 W
See all product information

ToolBuy Benefits

₹1 (Incl. of all taxes)

₹1 + ₹0 GST (18%)


Out of Stock

3 Business Days

1

Download Product LeafletNot available
Download Bosch CatalogueNot available

Highlights

  • The Bosch GCM12SD is a 12 In. Dual-Bevel Glide miter saw that features a smooth cutting motion, accurate performance, and a space-saving design of the Bosch-exclusive Axial-Glide system
  • Pre-aligned SquareLockfences help the saw maintain precision throughout its life
  • A soft-grip ambidextrous handle along with a combination dust chute and vacuum adaptor add to user comfort
  • The saw also offers a large cutting capacity, easy-to-read bevel and miter scales with detents at common angles, and easy-access upfront controls
  • Integrated expanding base extensions: 60% more left-to-right material support than leading competitor - 40 In. left to right
  • Large easy-to-read uniform bevel and stainless steel miter scales: 52° left/60° right miter capacity; 47° left/47° right bevel capacity with marked detents and roof pitch angles
  • Adjustable miter detents: detents at 0°, 15°, 31.6°, 22.5°, 45°, 60° right super-accurate, and durable design
  • Push-button miter Detent override - easy-to-access thumb actuated control right up front for fine miter angle adjustment
  • Bevel detents: 0, 33.9°, 45° left/right for accurate cuts
  • Category best 90% dust collection - optimized for cutting 2x material with a vacuum
  • Ergonomic ambidextrous trigger handle with soft grip - large form-fitting ergonomic handle provides comfort for all-day use.


Scope of Delivery:

Dust bag with adapter
2 605 411 211
Quick-action clamp
2 608 040 205


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Bosch 305mm 1800W Dual-Bevel Glide Mitre Saw, GCM 12 SD
Wheel Dia305 mm
Speed (RPM)3800 rpm
Power SourceCorded
Uncertainty K3 dB
Rated input power1800 W
Saw blade bore diameter30 mm
Cutting capacity 0°110 x 305 mm
Cutting capacity 45° mitre110 x 217 mm
Cutting capacity 45° bevel63 x 305 mm
Mitre setting52° L / 60° R
Bevel setting47° L / 47° R
Sound pressure level92 dB(A)
Sound power level105 dB(A)
Positioning (BE)High cutting capacity and high level of comfort
Noise levelThe A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.
Part Number0 601 B23 503
