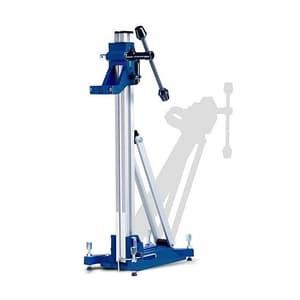

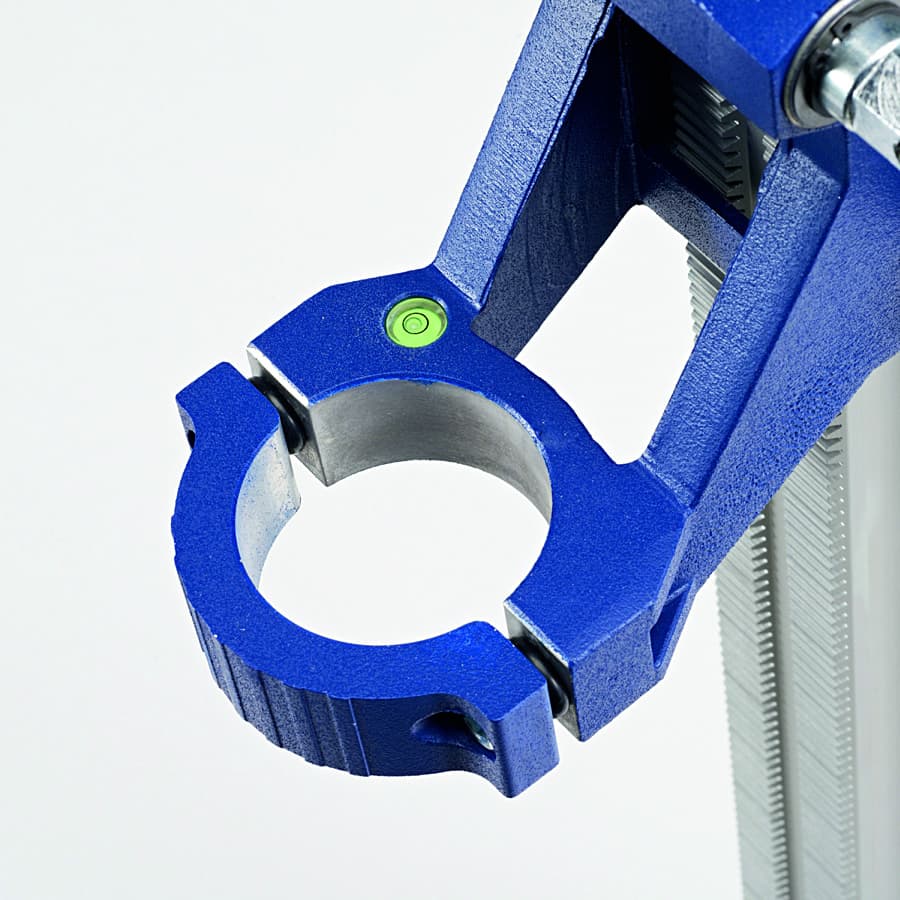

Carat Core Drill Stand, S-1803
Roll over the image to zoom in
Key Features
- Product Type: Diamond Drill
- Weight: 8.5 kg
- Delivery range: Tripod
- Max drill bit length: 500 mm
- Clamping flange: 60 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹80,476 (Incl. of all taxes)
₹68,200 + ₹12,276 GST (18%)
MRP was MRP ₹1,10,000
Save 38%
1 Business Days
1
84672100
Download Product LeafletNot available
Download Carat CatalogueNot available
Download Carat CatalogueNot available
Highlights
Durable aluminum tripod with telescopic support. The knob is attached to both sides of the stand. Adjustable guide. The base is adapted to suction with a vacuum to the substrate.
- Adjustable guidance.
- Robust tripod made of aluminum with a telescopic rear brace.
- Control lever can be placed on both sides.

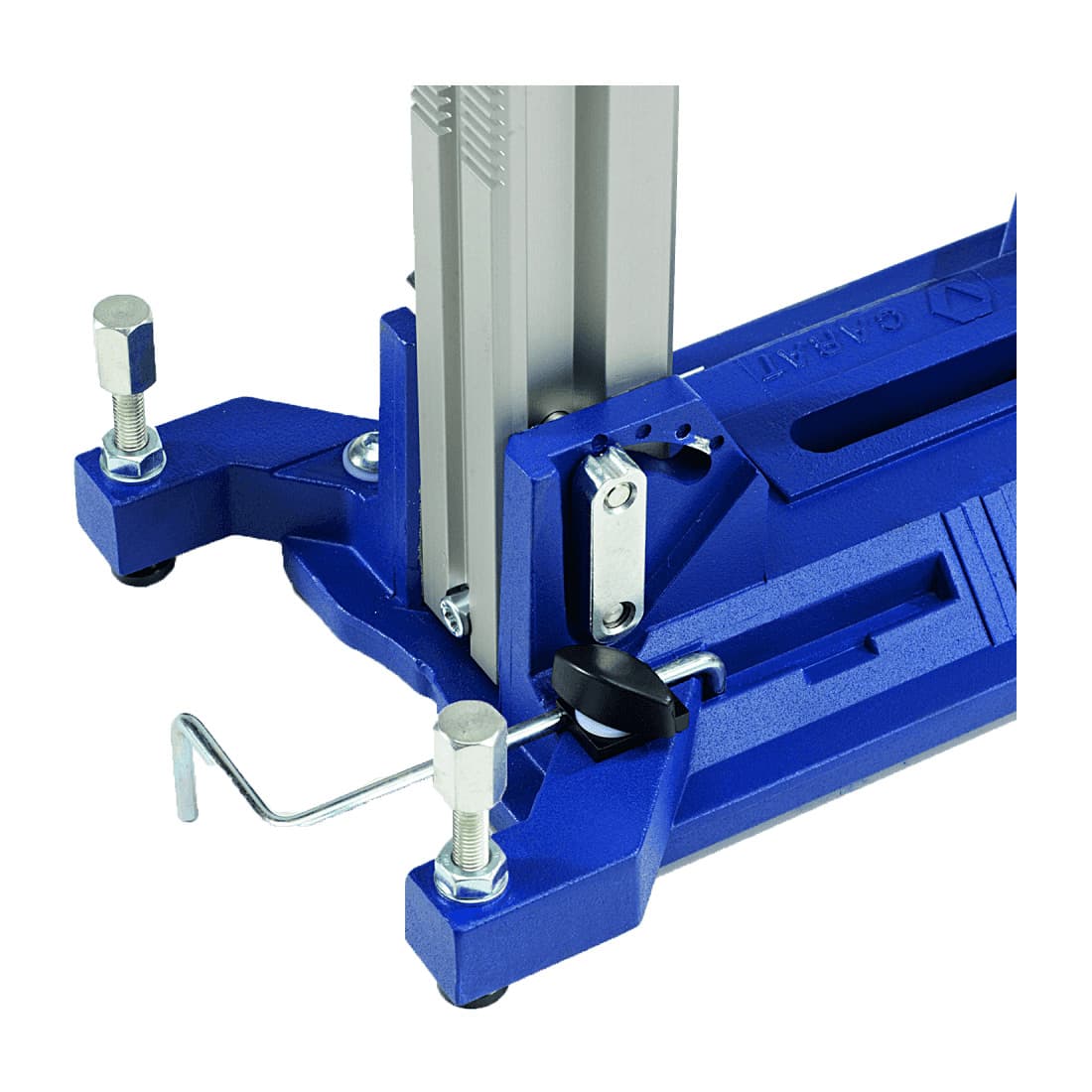

- Foot plate suitable for use with quick-release or vacuum set.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Delivery range | Tripod |
|---|---|
| Max drilling diameter at an angle of 90 (mm) | 160 |
| Max drilling diameter at an angle of 45 (mm) | 120 |
| Max drill bit length | 500 mm |
| Clamping flange | 60 mm |
