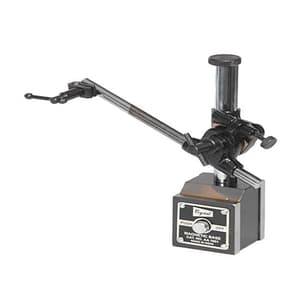

Crystal 55 kgf Magnetic Base, AA-1601
Roll over the image to zoom in
Key Features
- Product Type: Magnetic Stand
- Magnetic Force (kgf): 55 Kgf
- Material: Steel
- Overall Height: 235 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,635 (Incl. of all taxes)
₹4,775 + ₹860 GST (18%)
MRP was MRP ₹5,190
Save 8%
1 Business Days
1
90179000
Download Product LeafletNot available
Download Crystal CatalogueNot available
Download Crystal CatalogueNot available
Highlights
This model utilizes an AA-1601 Heavy Duty Magnetic Base unit and the massive rigid fitting makes it suitable for use with larger dial gauges. A fine adjustment screw is provided and maximum magnetic performance gives security even on rough surfaces.
The base and two sides are energies for attachment to flat surfaces and a ‘V’ slot facilitates gripping on curved surfaces. Universal movement of the crossbar is controlled by one screw. The base two sides and ‘V’ are activated simultaneously during the “ON” position of the button.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
The base and two sides are energies for attachment to flat surfaces and a ‘V’ slot facilitates gripping on curved surfaces. Universal movement of the crossbar is controlled by one screw. The base two sides and ‘V’ are activated simultaneously during the “ON” position of the button.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Magnetic Force (kgf) | 55 Kgf |
|---|---|
| Material | Steel |
| Base Size (LxWxH) mm | 63 x 75 x 63 mm |
| Overall Height | 235 mm |
| Main Shaft | Dia. 22 mm x 150 mm length |
| Series | AA-160 |
