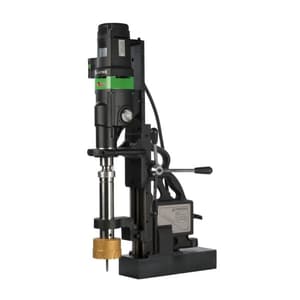

Eibenstock 130 mm Magnetic Core Drilling Machine, KBM 130
Roll over the image to zoom in
Key Features
- Product Type: Magnetic Core Drill
- Weight: 50 kg
- No Load Speed: 110 / 190 / 280 rpm
- Power Source: Corded
- Voltage (V): 220-240
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,25,250 (Incl. of all taxes)
₹1,90,890 + ₹34,360 GST (18%)
MRP was MRP ₹2,65,125
Save 28%
5 Business Days
1
–
Download Product LeafletNot available
Download Eibenstock CatalogueNot available
Download Eibenstock CatalogueNot available
Highlights
This Magnetic core drill machine remains one of the most powerful machines in the entire world for its unmatched capability to drill in steel from 12mm – 130 mm diameter in upto 110 mm steel. With MK4 spindle and 4 speed mechanical and electronic speed control motor (30-85/50-135/130-390/210-620 rpm) this machine can do extreme jobs look simple. The machine being reverse and forward, allows user to do tapping upto M42 which is truly exceptional performance.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Uses:
- Electrical installation, sanitary and heating installations,Vehicle Construction.
- Civil engineering, industrialised building construction & Heavy fabrication.
Features:
- Mechanical safety clutch
- Easy feed lever change
- Line lockout
- Safety Belt
- Powerful motor
- Superb service life
- Powerful electromagnet
- Internal cable arrangement
- Epoxy sealed waterproof base
- Internal spindle cooling system
- Safety fuse protection for magnet
- 100% high tensile alien headed screws
- Unmistaken arrangement of switch for magnet & drill to ensure safety of operator
- Core Bits - Optional accessory as per your requirement
- Soft start and thermal over load for the protection of the machine & user (EHB 130/2.2 R R/L)
- Constant speed and torque control allows for precise drilling (EHB 130/2.2 R R/L)
- Tapping attachment, Tapping Collet, & Core Bits are Optional accessory as per your requirement.
Includes:
- Accessory Pouch
- Allen Key 2.5 mm
- Allen Key 3 mm
- Allen Key 5 mm
- Allen Key 6 mm
- Guide Pin 8 x 198 mm L
- Guide Pin 8 x 130 mm L
- Guide Pin 8 x 118 mm L
- Sleevle Attachment 32 mm to 19mm
- Hex Spanner M5
- Fuse 15 amp
- SH Grub Screw M 10X8
- SH Grub Screw M 12X8
- 50 X 50 mm TCT Annular Cutter
- Drift
- Cutting Oil Bottle
- Coolant Bottle
- Belt SA
- Safety Goggle
- Hand Gloves Set
- Service Sheet
- User Manual
- Metal Carry Case.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| No Load Speed | 110 / 190 / 280 rpm |
|---|---|
| Power Source | Corded |
| Voltage (V) | 220-240 |
| Power Input (W) | 2300 |
| Core Drill Short Cutting Capacity 30 mm | 12 to 130 mm |
| Core Drill Long Cutting Capacity 55 mm | 12 to 100 mm |
| Core Drill Extra long Cutting Capacity 110 mm | 20 to 120 mm |
| Max Core cutting Depth (mm) | 110 |
| Tapping Capacity | Up to M42 mm |
| Electro Torque control | Yes |
| Thermal Overload Protection | Yes |
| Twist drilling Capacity (Max) | O 45mm |
| Reaming (Max) | O 50mm |
| Morse taper | MT 4 |
| Direct arbor | 32 mm Weldon |
