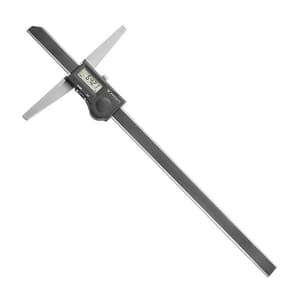

Facom 300 mm / 12 inch Digital Depth Gauge, 1350
Roll over the image to zoom in
Key Features
- Product Type: Depth Gauge
- Weight: 0.7 kg
- Range (mm): 0 - 300 mm
- Range (Inches): 0 - 12 inch
- Accuracy (1/100th): 0.01 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹70,428 (Incl. of all taxes)
₹59,685 + ₹10,743 GST (18%)
3 Business Days
1
–
Download Product LeafletNot available
Download Facom CatalogueNot available
Download Facom CatalogueNot available
Highlights
- Protection rating IP 67: IP 6 full dust protection and IP 7 Protection against temporary submersion in water.
- Rectified stainless steel mechanical assembly.
- Reading rule with patented induction system.
- LCD digital display 12 mm.
- Floating zero.
- Metric / imperial conversion.
- Compatible with Gagewedge software, USB & RS232 output.
- Automatic power off.
- Supplied in case with a compliance certificate.
- Standards: NF EN ISO 13385-1, ISO 13385-1, DIN 862
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Type of Product | Digital Depth Gauge |
|---|---|
| Range (mm) | 0 - 300 mm |
| Range (Inches) | 0 - 12 inch |
| Accuracy (1/100th) | 0.01 mm |
| Repeatability | 10 μm |
| Operating time | About 8000 hrs |
| Length | 420 mm |
| Height | 30 mm |
| Width | 130 mm |

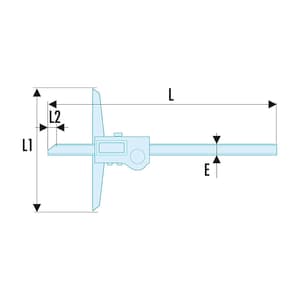

| E | 16 x 3.5 mm |
| L | 384 mm |
| Length L1 | 100 mm |
| Length L2 | 300 mm |
| Head Height C | 150 mm |
| Bias Error | 30μm |
