Ferm 13 mm / 350W Bench Pillar Drill, TDM1026

Shop all Ferm

SKU: PO.DR.BE.00001

Model: TDM1026

Roll over the image to zoom in


Key Features

See all product information

ToolBuy Benefits

₹14,160 (Incl. of all taxes)

₹12,000 + ₹2,160 GST (18%)



3 Business Days

1

Download Product LeafletNot available
Download Ferm CatalogueNot available

Highlights

The FERM TDM1026 bench pillar drill is an ideal machine for the demanding craftsman! This robust column drill is equipped with an engine of 350 Watt and 5 different speed settings, with a maximum speed of 2500 RPM! FERM’s bench pillar drill allows you to achieve the best drilling results with materials such as steel and wood.

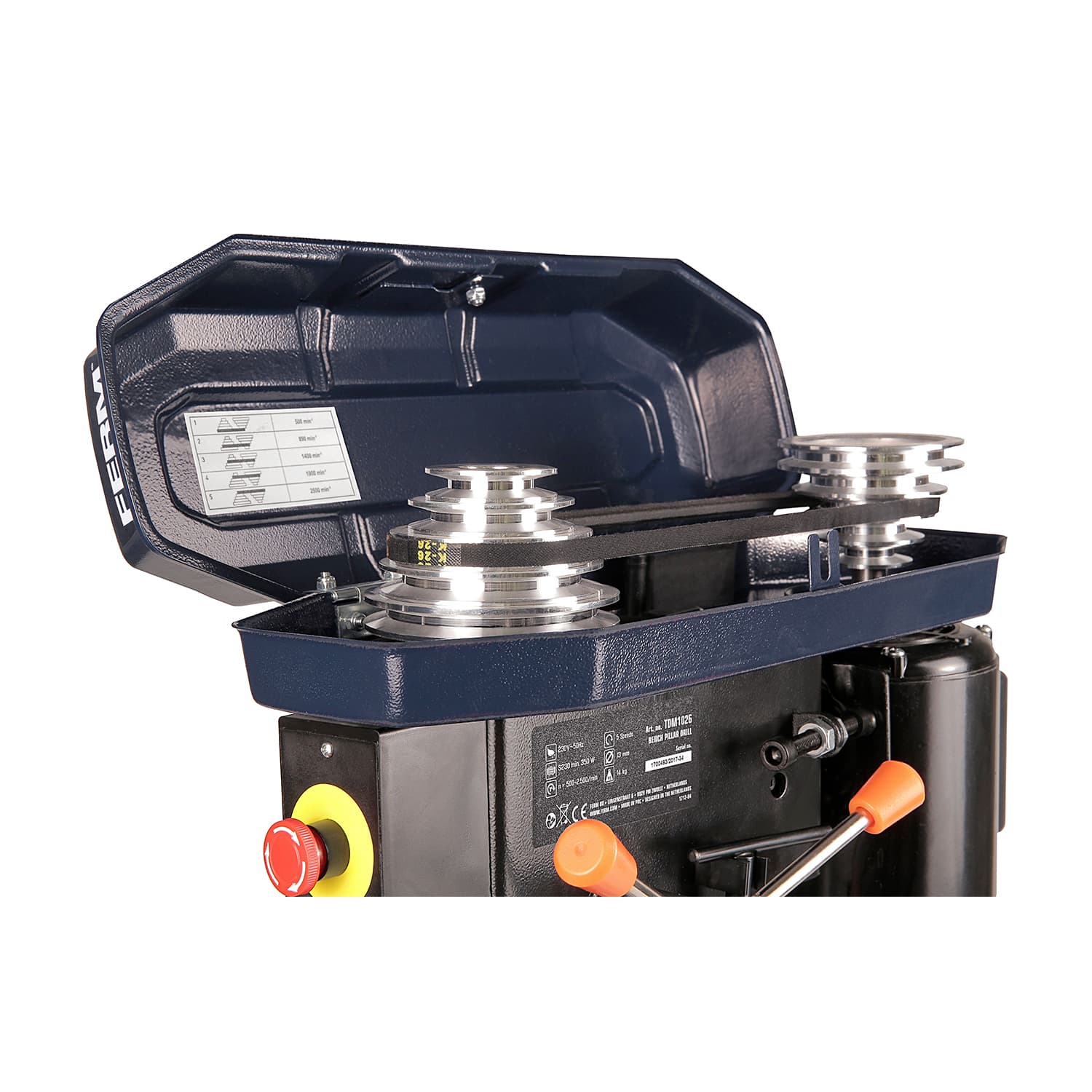

Use the keyed chuck to securely fasten different types of drills (max. drill bit: Ø13 mm). The V-belt drive is on top of the machine, well protected in a metal housing. When the housing is open, it is not possible to start the engine for safety reasons. Thanks to the red emergency button and transparent safety cover, you can work safely.

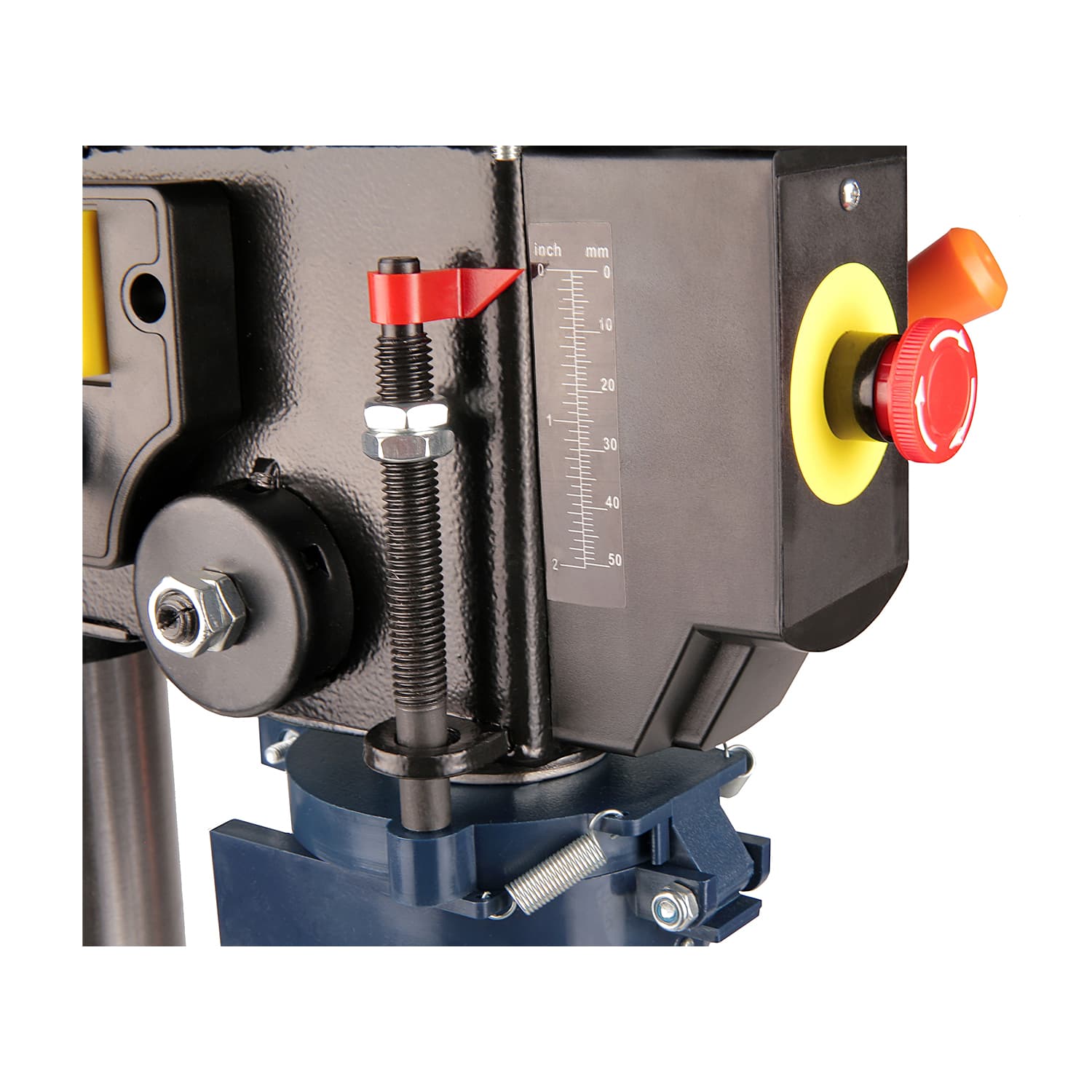

The worktable (160 x 160 mm) is adjustable in height and can also be tilted to an angle of 0 to 45 °. In addition, the drilling depth stop allows you to determine exactly how deep the drill should go in the material (maximum bore depth: 52 mm). Since the base plate is equipped with screw holes, you can easily attach the pillar drill to your workbench.


Features:

  • Cast iron base for maximum stability
  • Key chuck (13 mm)
  • In height adjustable working table with two way angle adjustment from 0° to 45°.
  • Safety switch


Package Content:

  • 1x Bench Pillar Drill
  • 1x Chuck key

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Ferm 13 mm / 350W Bench Pillar Drill, TDM1026
Power Input350W
Chuck Capacity13 mm
No Load Speed500-890-1400-1900-2500 /min.
Number of Speeds5
Morse TaperB16
Mains Voltage230V
Frequency50Hz
Travel of Spindle52 mm
Horizontal Distance104 mm (Chuck to Column)
Total Height600 mm
Table Dimensions (mm)160 x 160 mm
