Fluke 805 ES External Vibration Sensor For 805 Vibration Meter
Roll over the image to zoom in
Key Features
- Product Type: Probes & Accessories
- Weight: 1.13 kg
- Measurement range: 7 g pk (68.7 m/s2 pk)
- Relay: 3A Form C 480 VAC
- Electrical connector: Screw terminals
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,42,688 (Incl. of all taxes)
₹1,20,922 + ₹21,766 GST (18%)
MRP was MRP ₹1,77,826
Save 32%
30 Business Days
1
90318000
Download Product LeafletNot available
Download Fluke CatalogueNot available
Download Fluke CatalogueNot available
Highlights

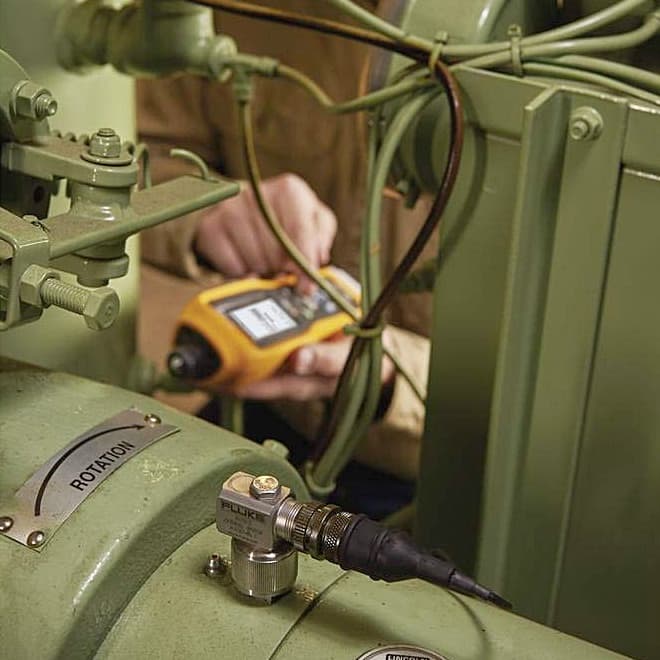

The Fluke 805ES is an external vibration sensor that is ideal in situations for which it is either difficult or impractical to use the onboard vibration sensor tip of the 805 Vibration Meter.
The 805ES allows you to take measurements in crowded or hard-to-reach locations, behind machine guards or enclosures, or in out-of-reach places where it is difficult to apply sufficient manual pressure to the 805 Vibration Meter.
Features:
- Low-profile 90-degree sensor body allows the sensor to get into tight spots
- Rugged, coiled cable minimizes dangling, while stretching to more than 7ft when needed
- Powerful "U" shaped magnet mount creates a firm connection to flat, or curved measurement surfaces
- Rugged, sealed cable connector with strain relief tail reduces cable wear
- Removable sensor magnet to allow for direct attachment to a sensor mounting pad, or threaded hole on a piece of equipment
- Connects directly to 805 Vibration Meter SMB connector located in the heel of the meter
What's Included In This Package:
- Fluke 805ES External Vibration Sensor for 805 Vibration Meter
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Measurement range | 7 g pk (68.7 m/s2 pk) |
|---|---|
| Frequency range | 0 to 6000 cpm (0 to 100 Hz) |
| Relay | 3A Form C 480 VAC |
| Relay (Contacts) (DPDT) | Normally open / closed |
| Temperature range (Operating) | -13 to 140°F (-25 to 60°C) |
| Enclosure rating | IP66 |
| Size (Width x Height x Depth) | 4.35 x 3.30 x 4.35 in (110.5 x 83.8 x 110.5 mm) |
| Sensing element | Magnet |
| Housing material | Aluminum alloy |
| Electrical connector | Screw terminals |
| Screw terminal wire size | 24-14 AWG (0.2 - 2.5 mm2) |
| Cable input | 3/4-14 NPT |
| Mounting hole size | 0.25 in (6.4 mm) |
| Sensing geometry | Inertial element |
