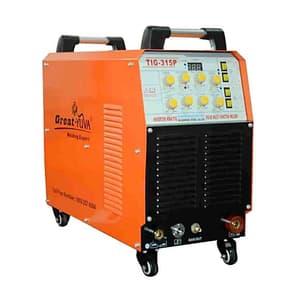

Great-Yuva TIG/MMA 315 AMPS / 3 Phase With Pulsing Mosphet Based Inverter Welding Machine, TIG-315P
Roll over the image to zoom in
Key Features
- Product Type: TIG Welding Machine
- Weight: 35 kg
- Supply Voltage: 370 - 460 V
- Phase: 3 Phase
- Std Input Voltage: AC 415V + 10% 3P
- Frequency (Hz): 50/60
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹69,795 (Incl. of all taxes)
₹59,148 + ₹10,647 GST (18%)
MRP was MRP ₹95,400
Save 38%
Out of Stock
5 Business Days
1
–
Download Product LeafletNot available
Download Great-Yuva CatalogueNot available
Download Great-Yuva CatalogueNot available
Highlights
- MOSFET based three phase DC manual Invertor arc welding machine
- Perfect welds with Up slope, Down slope and Pulsing feature (AC/DC-315P)
- Ideal machine to weld alluminium & its alloys, Stainless steel, carbon steel, copper and other non ferrous metal (AC/DC-315P)
- Small welding spatter
- Lightweight and portable
- High efficiency upto 40% power saving
- High efficiency upto 40% power saving
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Supply Voltage | 370 - 460 V |
|---|---|
| Phase | 3 Phase |
| Std Input Voltage | AC 415V + 10% 3P |
| Frequency (Hz) | 50/60 |
| Output Voltage | 20.4V - 32.6V / 10.4V - 22.6V |
| Duty Cycle (%) | 60% - 315A / 100% - 244A |
| Insulation | F |
| Case Protection Degree | IP21S |
| Current Adjusting Range (A) | 10 - 315 |
| Overall Dimensions (mm) | 575 x 280 x 545 |
| Welding Electrode Size (mm) | 2.5/3.15/4.0/5.0 |
| Effeciency | 85% |
