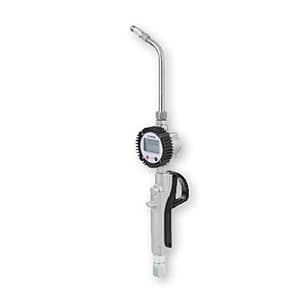

Groz 1 - 30 LPM Heavy Duty Electronic Oil Control Gun With Steel Extension & Manual Non Drip Tip, OM/200/OGN/RM/B
Roll over the image to zoom in
Key Features
- Product Type: Fuel Handling Equipment
- Least count: Upto 0.001 units
- Repeatability: 0.20 %
- In-line Swivel: Included
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹25,423 (Incl. of all taxes)
₹21,545 + ₹3,878 GST (18%)
MRP was MRP ₹31,684
Save 32%
3 Business Days
1
84671900
Download Product LeafletNot available
Download Groz CatalogueNot available
Download Groz CatalogueNot available
Highlights
- Super accuracy heavy duty gun for controlling fluid deliveries in most demanding applications
- Oval gear mechanism
- Electronic Display using one 3V Lithium Ion battery (CR2450)
- Aluminium Die cast meter & gun body
- Built-in continuous Flow switch can be activated for un-attended dispensing
- Measures in Litres, US Gallons, Quarts, Pints, Ounces & Decilitres
- Easy user re calibration
- Swivel at inlet for easy maneuverability. Strainer in the swivel keeps contaminants, dust, grit etc. away from entering the gun
Wetted Components:
- Aluminum,
- Acetal,
- Brass,
- Nitrile Rubber,
- Steel
Recommended Use:
- Oils with viscosity up to SAE 140
- Do not use with Water-based media, Gasoline, etc.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Type of Product | Oil Control Gun |
|---|---|
| Least count | Upto 0.001 units |
| Repeatability | 0.20 % |
| Flow Rate | 1-30 LPM |
| Accuracy | ±0.50% |
| Working Pressure | 1000 PSI |
| Working Temperature | -14°C to 55°C |
| Max. Resettable Batch Total | 99,999.9 units |
| Max. Non Resettable Totalizer | 99,999.9 units |
| Inlet Threaded | 1/2" BSPT (F) / 1/2" NPT (F) |
| In-line Swivel | Included |
| Outlet Diameter of Steel Spout | 1/2" (12.7 mm) |
| Inside Diameter of Hose Extension | 1/2"(12.7 mm) |
| Display Layout | User Selectable for 0.1, 0.01, 0.001 units |
