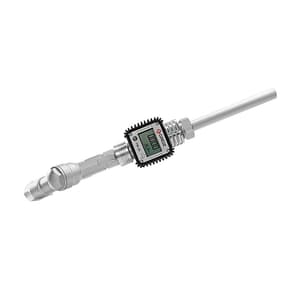

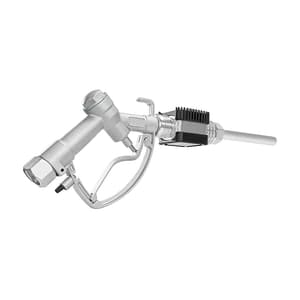

Groz 1 Inch / 75 LPM Metered Fuel Control Nozzle, FM/20/FCN/0-1/N
Roll over the image to zoom in
Key Features
- Product Type: Fuel Handling Equipment
- Battery Voltage: 1.5 V
- Flow Rate: 5-75 LPM
- Accuracy: ± 1%
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹23,101 (Incl. of all taxes)
₹19,577 + ₹3,524 GST (18%)
MRP was MRP ₹28,790
Save 32%
3 Business Days
1
84671900
Download Product LeafletNot available
Download Groz CatalogueNot available
Download Groz CatalogueNot available
Highlights
- Measures in Litres, Quarts, Pints & Gallons.
- Easy User Re-Calibration.
- Polyamide Turbine Measuring Mechanism.
- Die-Cast Aluminium Nozzle with Built-In Swivel At Inlet.
- Manual Fuel Control Nozzle Fitted with Digital Fuel Meter.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Type of Product | Fuel Control Nozzles |
|---|---|
| Viscosity | 5.35 CST |
| Battery Voltage | 1.5 V |
| Inlet Threads | 1 Inch NPT (F) |
| Protection Class | IP 55 |
| Repeatability | ± 0.30 % |
| Flow Rate | 5-75 LPM |
| Accuracy | ± 1% |
| Working Pressure | Max: 50 PSI |
| Least Count | 0.001 Units |
| Recommended Use | Diesel, Petrol |
| Max Working Temperature | 0° C to 50° C |
