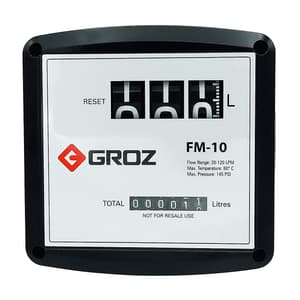

Groz 20 - 120 LPM Mechanical Diesel Meter, FM/10/0-1/BSP
Roll over the image to zoom in
Key Features
- Product Type: Fuel Handling Equipment
- Burst Pressure: 435 PSI
- Least count: 0.10 liters
- Repeatability: + / - 0.30%
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹18,768 (Incl. of all taxes)
₹15,905 + ₹2,863 GST (18%)
MRP was MRP ₹23,390
Save 32%
3 Business Days
1
84671900
Download Product LeafletNot available
Download Groz CatalogueNot available
Download Groz CatalogueNot available
Highlights
- High Accuracy Diesel Meter with mechanical register
- Nutating Disc mechanism offers high tolerance to fuel contamination
- Meter is designed for both In-Line applications & gravity flow (with a minimum gravity head of 4’)
- Ideal for use with Electric Fuel pumps
- Register cap can be easily removed & rotated to every 90° orientation for display reading
- Robust Aluminum Die Cast construction
- Easy user re calibration
- Works with both Fuels & Oils
- Do Not Use With: Gasoline, Water-based media
Wetted Components:
- Aluminum,
- Buthil Tereftalat,
- Nitrile Rubber
Recommended Use:
- Diesel,
- Biodiesel,
- Low to Medium Viscosity Oils
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Type of Product | Fuel Meter |
|---|---|
| Burst Pressure | 435 PSI |
| Pressure Loss | 3 PSI |
| Inlet/Outlet | 1 inch BSP (F) |
| Least count | 0.10 liters |
| Repeatability | + / - 0.30% |
| Flow Rate | 20-120 LPM |
| Accuracy | ±1% |
| Working Pressure | 145 PSI |
| Working Temperature | -10°C to 60°C |
| Material | Robust Aluminum Die Cast |
| Recommended Use | Diesel, Biodiesel, Oils |
| Max. Resettable Batch Total | 999 Litres |
| Max. Non Resettable Totalizer | 999999 Litres |
| Max. Viscosity of Media | 2000 cst |
