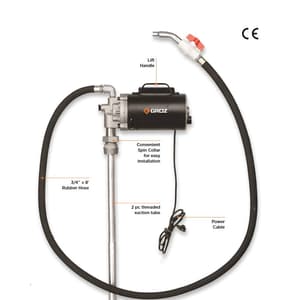

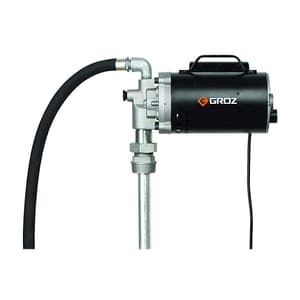

Groz 220V AC Regular Flow Heavy Duty Electric Oil Pump, OPM/220

Shop all Groz

SKU: HA.LU.OI.00017

Model: OPM/220

Roll over the image to zoom in


Key Features

See all product information

ToolBuy Benefits

₹38,602 (Incl. of all taxes)

₹30,158 + ₹8,444 GST (28%)

MRP was MRP ₹44,350

Save 32%



3 Business Days

1

84133020

Download Product LeafletNot available
Download Groz CatalogueNot available

Highlights

  • Heavy duty oil pump designed to transfer bulk oils, hydraulic oils, used oil etc

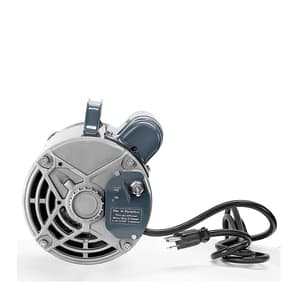

  • Air-cooled motor with thermal protection
  • Noncorroding aluminium die-cast pump body
  • Sintered powder metal gears
  • Self-priming, positive displacement design
  • A high horsepower to flow ratio assures adequate power to pump viscous fluids at low temperatures
  • The pump has an internal bypass valve to bypass flow, if the discharge pressure exceeds the bypass valve setting
  • Built-in 2" bung adaptor for mounting on drums/tanks
  • Can be used to transfer used oil with a screen fitted onto the suction tube
  • Duty Cycle: 30 minutes ON / 30 minutes OFF


Recommended Use:

  • Oils,
  • Synthetic Oils,
  • Used Oils,
  • Hydraulic Oils,
  • Cutting Oils
  • Non-Flammable Oils


Wetted Components:

  • Aluminium,
  • Steel,
  • Cast
  • Iron,
  • Nylon,
  • NBR,
  • Zinc,
  • Polypropylene,
  • PVC

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Groz 220V AC Regular Flow Heavy Duty Electric Oil Pump, OPM/220
FlowUpto 16.6 LPM
Motor1/2 HP 220V AC, 50Hz
Amp6 Amp
RPM1300
MechanismGear Pump
Suction Pump34 Inch
Hose3/4"×8'
Bung Adaptor2" Threaded
Inlet1 Inch NPT
Outlet3/4 Inch NPT
Dispensing NozzleBall Valve
Power Cable8'
Air CooledYes
Viscosity of OilSAE 90
Max Working Pressure65 PSI (4.5 BAR)
Thermal ProtectionYes
