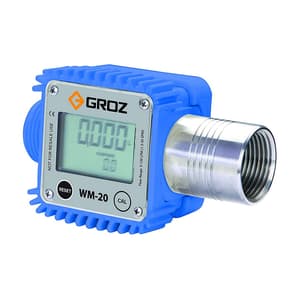

Groz 5 - 120 LPM DEF Digital Turbine Meter, WM/20/0-1/BSP
Roll over the image to zoom in
Key Features
- Product Type: Fuel Handling Equipment
- Accuracy: +/-1%
- Repeatability: +/-0.30%
- Burst Pressure: 580 PSI
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹22,907 (Incl. of all taxes)
₹19,413 + ₹3,494 GST (18%)
MRP was MRP ₹28,548
Save 32%
3 Business Days
1
84671900
Download Product LeafletNot available
Download Groz CatalogueNot available
Download Groz CatalogueNot available
Highlights
- Digital Turbine Meter with Polyamide construction, designed especially for use with DEF, water etc.
- Designed for in-line, end of the line application or use with a dispensing nozzle
- Polyamide turbine measuring mechanism
- Electronic display using two AAA 1.5V batteries
- The polyamide body & sealed electronic card makes it suitable for use in severe weather conditions

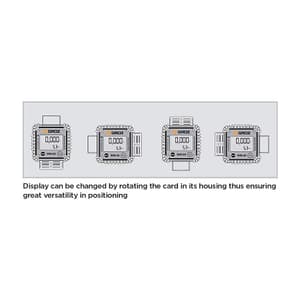

- The display can be rotated in 4 different positions
- Measures in Litres, Quarts, Pints & Gallons
- Easy user re calibration
- Includes one additional stainless steel adaptor to convert from 1” male to 1” female threads
- Do not use with Fuels and Oils
Recommended Use:
- Urea,
- AdBlue,
- DEF,
- Windshield fluids,
- water & water based media
Wetted Components:
- Polyamide,
- Viton,
- Stainless Steel
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

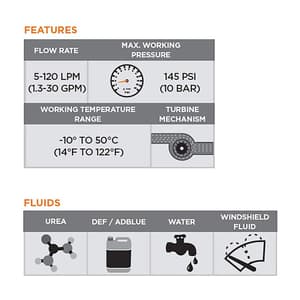

Specifications
| Type of Product | DEF Accessories |
|---|---|
| Flow rate | 5 to 120 LPM |
| Accuracy | +/-1% |
| Repeatability | +/-0.30% |
| Max. Working Pressure | 145 PSI |
| Burst Pressure | 580 PSI |
| Working Temperature range | -10°C to 50°C |
| Max. Resettable Batch Total | 99999 units |
| Max. Non Resettable Totalizer | 999999 units |
| Max. Viscosity of media | 5.35 CST |
| Least Count /Resolution | 0.001 units |
| Water Resistance | IP 55 |
