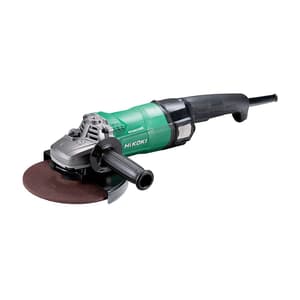

HiKoki 180mm / 7 inch 1300W Electronic Disc Grinder (With Brake), G18BYES9Z

Shop all HiKoki

SKU: PO.GR.AN.00297

Model: G18BYE

Roll over the image to zoom in


Key Features

  • Product Type: Angle Grinder
  • Weight: 3.7 kg
  • Size (Inches): 7 inch
  • Wheel Dia: 180 mm
  • No Load Speed: 0 - 6600 rpm
See all product information

ToolBuy Benefits

₹18,589 (Incl. of all taxes)

₹15,753 + ₹2,836 GST (18%)

MRP was MRP ₹26,700

Save 41%



2 Business Days

1

84672900

Download Product LeafletNot available
Download HiKoki CatalogueNot available

Highlights

Powerful Grinding Ability
  • Grinding performance 25% UP compared to conventional product (G18Y1) *
  • (Working conditions) Work material: Steel, 180mm resinoid wheel, Pressing load: Self-weight + 49N (5kgf)


Maintenance-Free With AC Brushless Motor:

  • Significantly improved product life: Eliminates troubles such as wire breakage, layer shorts, and wear of components due to harsh environments.
  • No carbon brush replacement required
  • Achieving stable work even when the voltage drops: By adopting a high-efficiency brushless motor, efficient work can be performed even when using spliced ??cords.
  • Can be used with engine generators: Our own compact and highly efficient inverter circuit can be used with engine generators that do not have an inverter.
  • Minimal decrease in rotation speed and increased grinding amount: High-efficiency motor + electronic control minimizes decrease in rotation speed even when a load is applied, improving grinding efficiency.


Thorough Safety:

  • With brake: When the switch is turned off, the brake is applied and the time until the machine stops is shortened.
  • Restart prevention function: Even if the power plug is inserted into the outlet while the switch is on, it will not operate, preventing unexpected accidents.
  • Kickback mitigation system: By monitoring a sudden drop in motor speed and stopping the motor instantly, it reduces the kickback that occurs when a diamond cutter or cutting wheel gets caught in the material.
  • 2 action switch: Prevents injuries and accidents caused by the switch being turned on unexpectedly. Pull the lock lever to release the off-lock, then pull the trigger to activate.
  • Overload protection function
  • Soft start


Other Features:

Toolless wheel guard: You can adjust the angle of the wheel guard without using tools.

Lever "Open" You can freely change the angle of the foil guard .
Lever "closed" Wheel guard is fixed.

Notification lamp: You can visually check the condition of the product.

Lights green When available
Lights red When the restart prevention function is activated
Blinking red When the overload protection function is activated

  • New dust filter: It prevents the intrusion of gravel and improves durability. It can be removed.
  • side handle


What's Included In This Package:

  • 180 mm resinoid wheel (A/WA30P)
  • Spanner
  • Hex spanner
  • Side handle

Note : Manufacturer reserves the right to change specifications of parts and accessories without notice. Specifications and standard accessories may vary from country to country.

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for HiKoki 180mm / 7 inch 1300W Electronic Disc Grinder (With Brake), G18BYES9Z
Size (Inches)7 inch
Wheel Dia180 mm
No Load Speed0 - 6600 rpm
Power SourceCorded
Cutting wheel dimensions180 x 6 x 22 mm
MotorAC brushless motor
Power supplySingle-phase AC 50/60Hz shared
Voltage (100V specification)2400 W
Voltage (200V specification)2800 W
Current15.0A / 7.5A
Power consumption1300 W
No-load speed6600min (times/min)
Machine body dimensions445 x 74 mm
Code2 cores/2.5m
Vibration 3-axis composite value5.9m/ s2
Wheel mounting shaft dimensions16 (2.0) x 13mm
