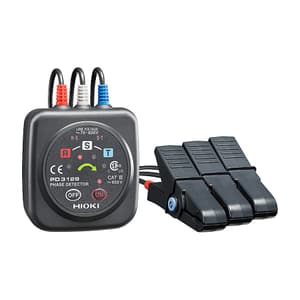

Hioki 70V - 600V Phase Detector With Easy-to-Read Arrow & Non-Metallic Contact Clips, PD3129
Roll over the image to zoom in
Key Features
- Product Type: Electrical Testers
- Weight: 200 g
- Functions: Phase detection (positive and negative)
- Voltage range: 70 to 600 V AC (50/60 Hz) (sine wave,continuous input)
- Frequency range: 45 Hz to 66 Hz
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹18,032 (Incl. of all taxes)
₹15,281 + ₹2,751 GST (18%)
MRP was MRP ₹17,978
Save 15%
5 Business Days
1
9031
Download Product LeafletNot available
Download Hioki CatalogueNot available
Download Hioki CatalogueNot available
Highlights
Hioki’s non-contact voltage detection and measurement technology places efficiency and safety as priority considerations with the goal of protecting customers that need to conduct on-site electrical work as part of renovations and expansions of manufacturing plants and buildings.
Model PD3129 is a non-contact phase rotation meter that detects the phase of electrical current flow within insulated wires without using metallic contact voltage clips. The green arrow indicates normal phase, which can be useful for visual reports that document the proper completion of electrical work.
Key Features:
- Simply clip clamps onto wire insulation
- Green LED arrow clearly shows phase direction, perfect for visual reports
- Rotating LED indicator shows the phase sequence for a 3-phase power supply at a glance
- Intermittent beeps signal positive phase; continuous tone signals reverse phase
- Magnetic base allows the instrument to be secured on a distribution panel
What's Included In This Package:
- 1x Carrying case
- 1x Strap
- 1x Spiral tube
- 1x Instruction manual
- 2x R6P (AA) manganese battery
|

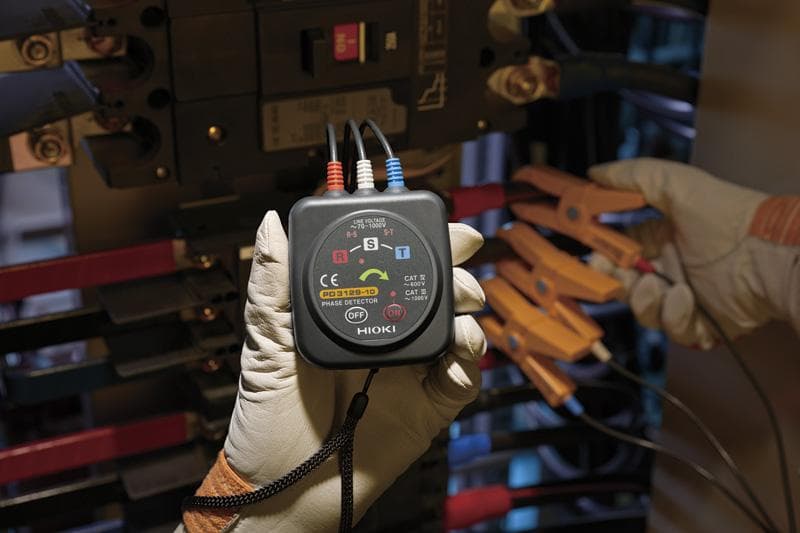

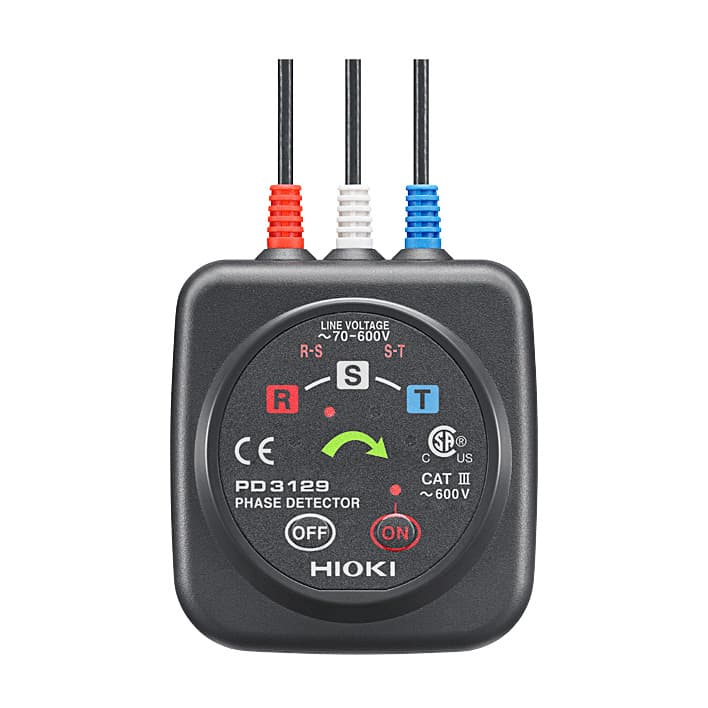

Easy-to-understand detection of normal phase with lit arrowThe arrow in the center of the instrument turns green to indicate normal phase. In this way, normal phase can be recognized at a glance. In addition, the arrow shows up clearly in photographs, making the PD3129 ideal for documenting proper installation in end-of-project reports. (Photo: 3129-10) |
|

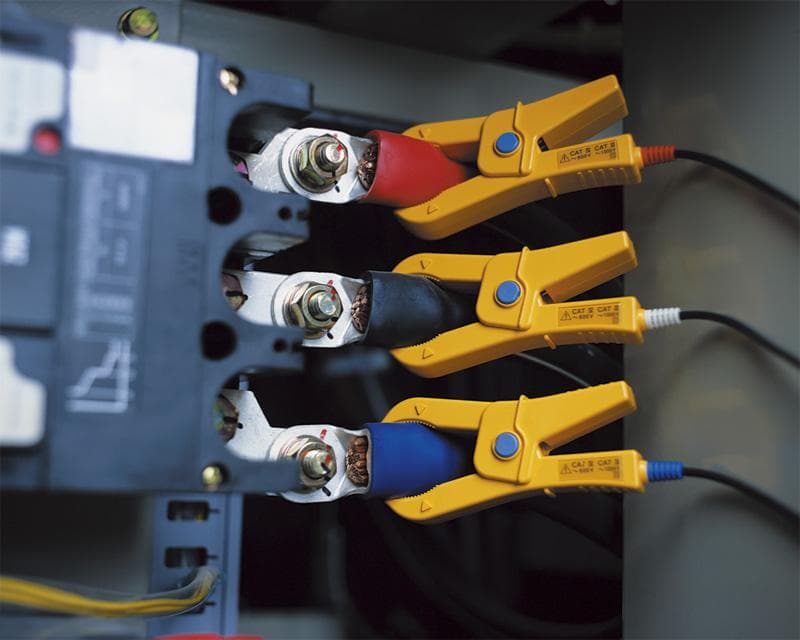

Safe, no-metal-contact designThe PD3129 uses no-metal-contact clips that need only be clipped to the outside of each insulated wire, allowing phase to be detected safely. (Photo: 3129-10) |
|

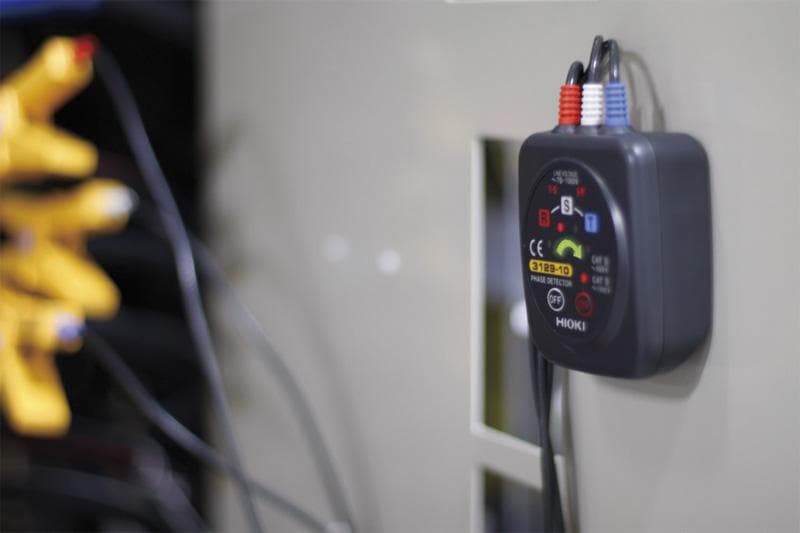

Magnetic back for maximum work efficiencyFour magnets on the back of the instrument allow it to be secured in place on distribution panels. By leaving your hands free for other tasks, this feature dramatically boosts work efficiency. (Photo: 3129-10) |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Functions | Phase detection (positive and negative) |
|---|---|
| Voltage detection method | Static induction |
| Voltage range | 70 to 600 V AC (50/60 Hz) (sine wave,continuous input) |
| Frequency range | 45 Hz to 66 Hz |
| Object to be connected | 2.4 mm (0.09 in) to 17 mm (0.67 in) of insulated wiring |
| Display | Phase detection :Positive ; 4 LEDs lit in clockwise order and the buzzer sounds intermittently, green arrow lights up Negative ; 4 LEDs lit in counterclockwise order and the buzzer sounds continuously |
| Battery check function | Power ON lamp: lights up (Power ON), blinks (Battery LOW) |
| Auto power off | Auto shut off if no activity is detected after power is turned ON for 15 minutes |
| Power supply | R6P (AA) manganese battery ×2, Continuous use: 70 hr |
| Dimensions and mass | 70 mm (2.76 in)W × 75 mm (2.95 in)H × 30 mm (1.18 in)D, 200 g (7.1 oz), Cord length : 0.7 m (2.30 ft) |
