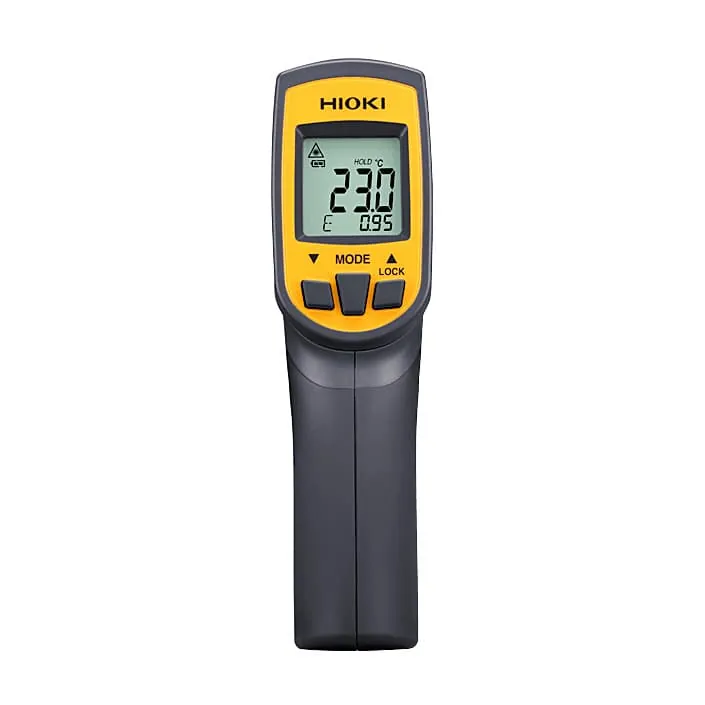

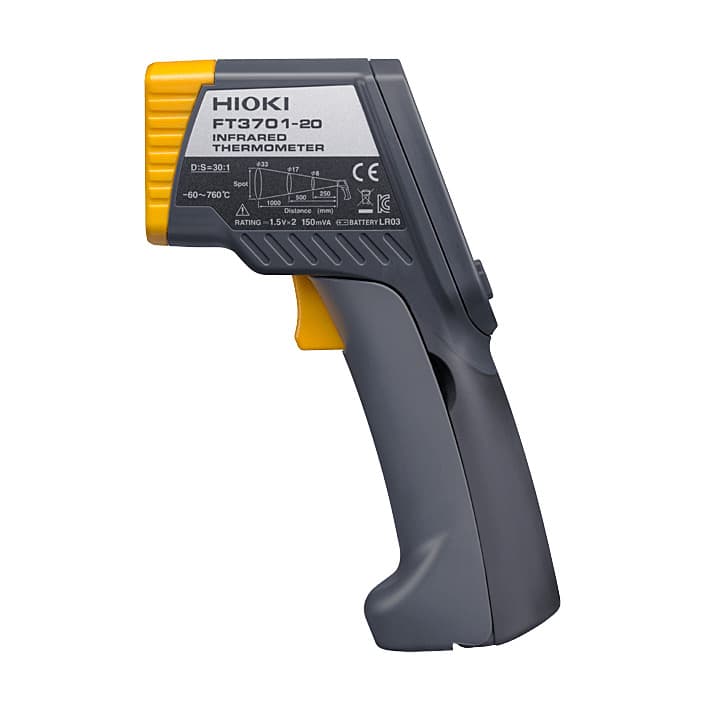

Hioki Non-Contact Infrared Thermometer Sharply Focus on Measurement Spots With Two-Beam Laser Marker, FT3700-20
Roll over the image to zoom in
Key Features
- Product Type: Thermometer
- Weight: 256 g
- Response time: 1 sec (90%)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹8,382 (Incl. of all taxes)
₹7,103 + ₹1,279 GST (18%)
MRP was MRP ₹8,356
Save 15%
5 Business Days
1
90251910
Download Hioki CatalogueNot available
Highlights
The FT3700 and FT3701 are non-contact thermometers using infrared rays, accurately pinpointing the spot with a two-beam laser marker. The infrared temperature guns identify the surface temperature of an object by measuring the energy level of the infrared rays emitted from the object without physically coming in contact with it.
Key Features:
- Pistol design with easy-to-see display
- A full menu of basic measuring functions
- Ideal for HVAC Applications
- Easily test in difficult locations, moving objects or where there is danger of electric shock
- Note: For industrial use only. Cannot measure body temperature. The laser marker beams are very dangerous if it gets into your eyes.
| Accuracy | -35.0°C to -0.1°C (-31.0°F to 31.9°F) : ±10 %rdg. ±2°C 0.0°C to 100.0°C (-32.0°F to 212.0°F) : ±2°C 100.1°C to 500.0°C (212.1°F to 932.0°F) : ±2% rdg. Note: -60.0°C to -35.1°C (-76.0°F to -31.1°F), and over 500.1°C (932.0°F), Accuracy not specified |
How to Use the Hioki Infrared Thermometer FT3700/FT3701
Basic introduction to using a Hioki infrared thermometer. Introduces how to use Hioki's FT3700/FT3701 Infrared Thermometer, from activating the laser marker and setting the emissivity to making measurements.

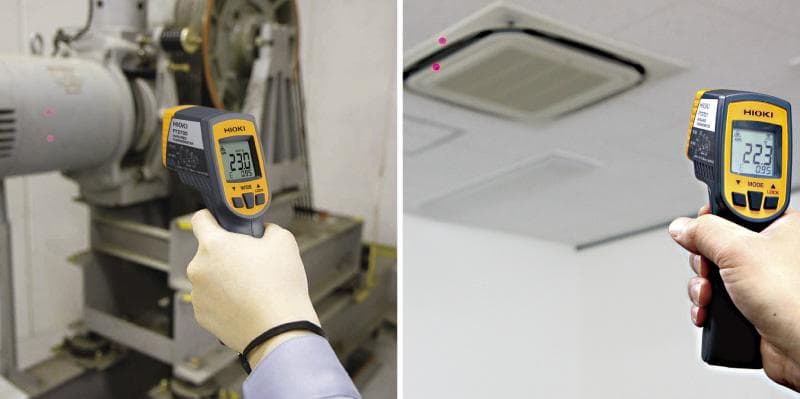

The instrument makes it easy to measure the temperature of targets such as an air-conditioner outlet some distance away, a circuit-breaker in a distribution panel that poses the risk if touched, and an operating motor.
What's Included In This Package:
- 1x Instruction manual
- 2x LR03 alkaline battery

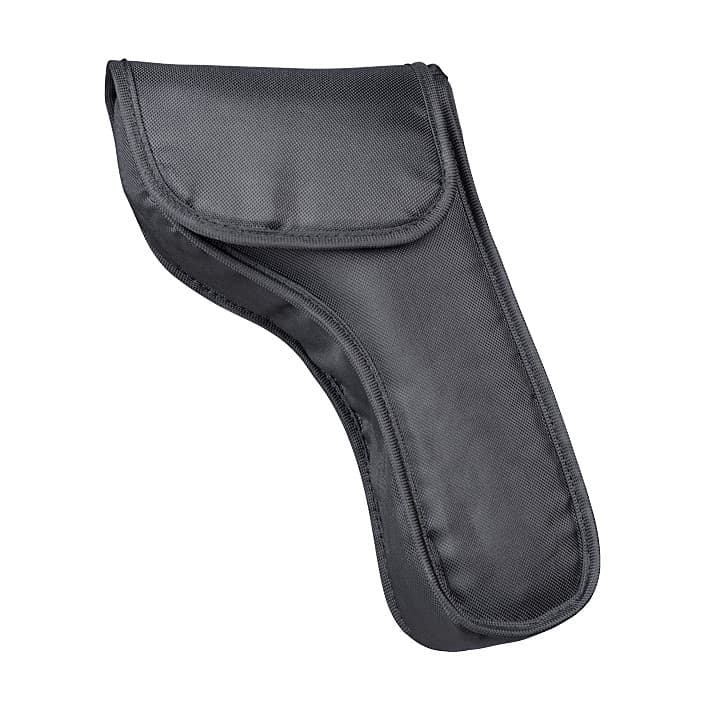

- 1x Carrying case
|

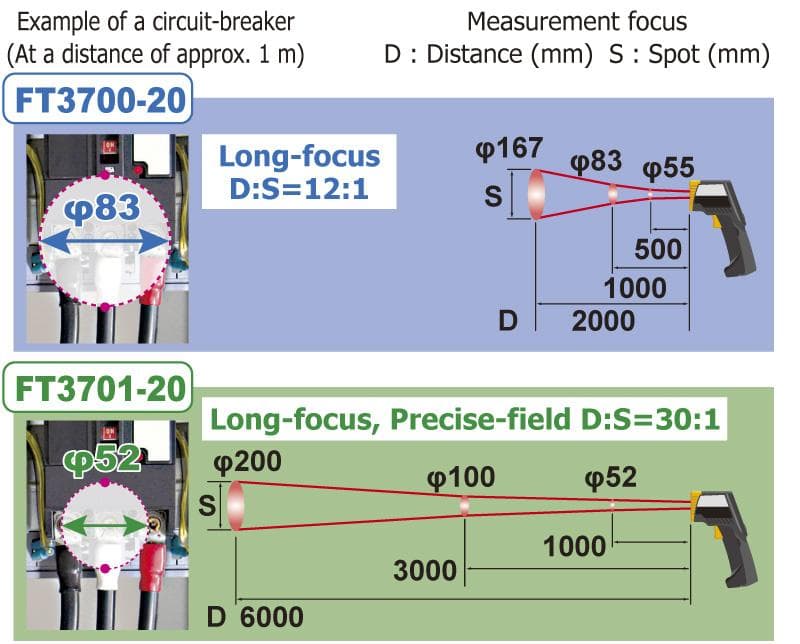

Choose from the two models according to your measurement location
|
|

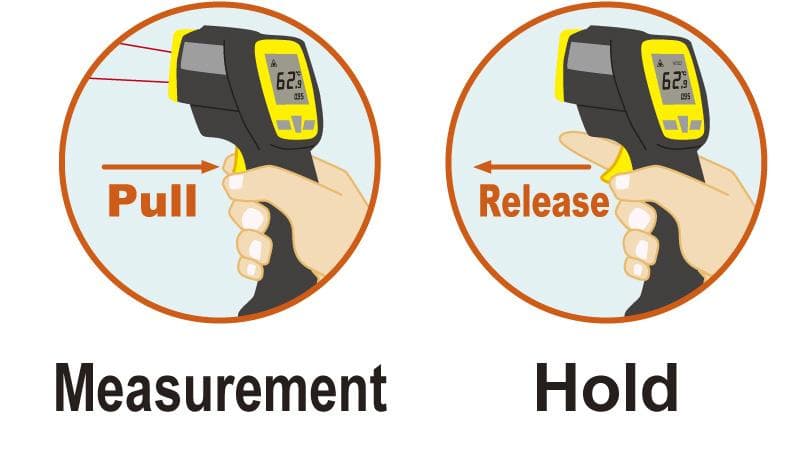

Non-contact infrared thermometer featuring simple, one-touch measurementEasy operation: just pull the measurement trigger Release it to hold the measured value |
|
Since the instrument measures radiation temperature, it’s easy to make readings in hazardous or unreachable locationsLocations that cannot be touched due to moving parts Locations that pose the risk of electric shock Unreachable locations. It’s optimal for measuring temperature anywhere. |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Measurement temperature range | -60.0°C to 550.0°C (-76°F to 1022°F), 0.1°C resolution |
|---|---|
| Response time | 1 sec (90%) |
| Measurement wavelength | 8 to 14 μm |
| Thermal emissivity compensation | e=0.10 to 1.00 (0.01 step) |
| Measurement field diameter | e=0.10 to 1.00 (0.01 step) |
| Sighting | Two-beam laser marker Max 1 mW (class 2), Red |
| Functions | Continuous measurement mode, MAX/ MIN/ DIF (MAX - MIN)/ AVG measurement, Alarm, Backlight, Auto power-off |
| Power supply | LR03 (AAA) alkaline battery ×2, 150 mVA, Continuous use of 140 hours (With laser marker, backlight and buzzer are OFF) |
| Dimensions and mass | 48 mm (1.89 in) W × 172 mm (6.77 in) H × 119 mm (4.69 in) D, 256 g (9.0 oz), (including batteries) |
