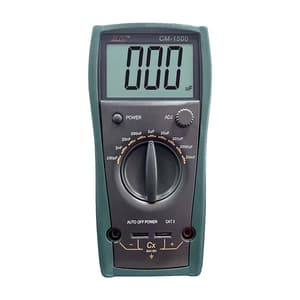

HTC 20mF / 1999 Count Capacitance Meter, CM-1500
Roll over the image to zoom in
Key Features
- Product Type: Capacitance Meter
- Low Battery Indication: Approx. <7.5V
- Sampling Rate: 3 times per second
- Power: 9V (6F22) X 1
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,661 (Incl. of all taxes)
₹1,408 + ₹253 GST (18%)
MRP was MRP ₹1,760
Save 20%
5 Business Days
1
90303100
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- 3½ Digit Large LCD Display.
- 1,999 Count.
- Full Protection function, capacitor with the function of Self discharge.
- Auto Power Off (APO).
- Capacitance discharge protection.

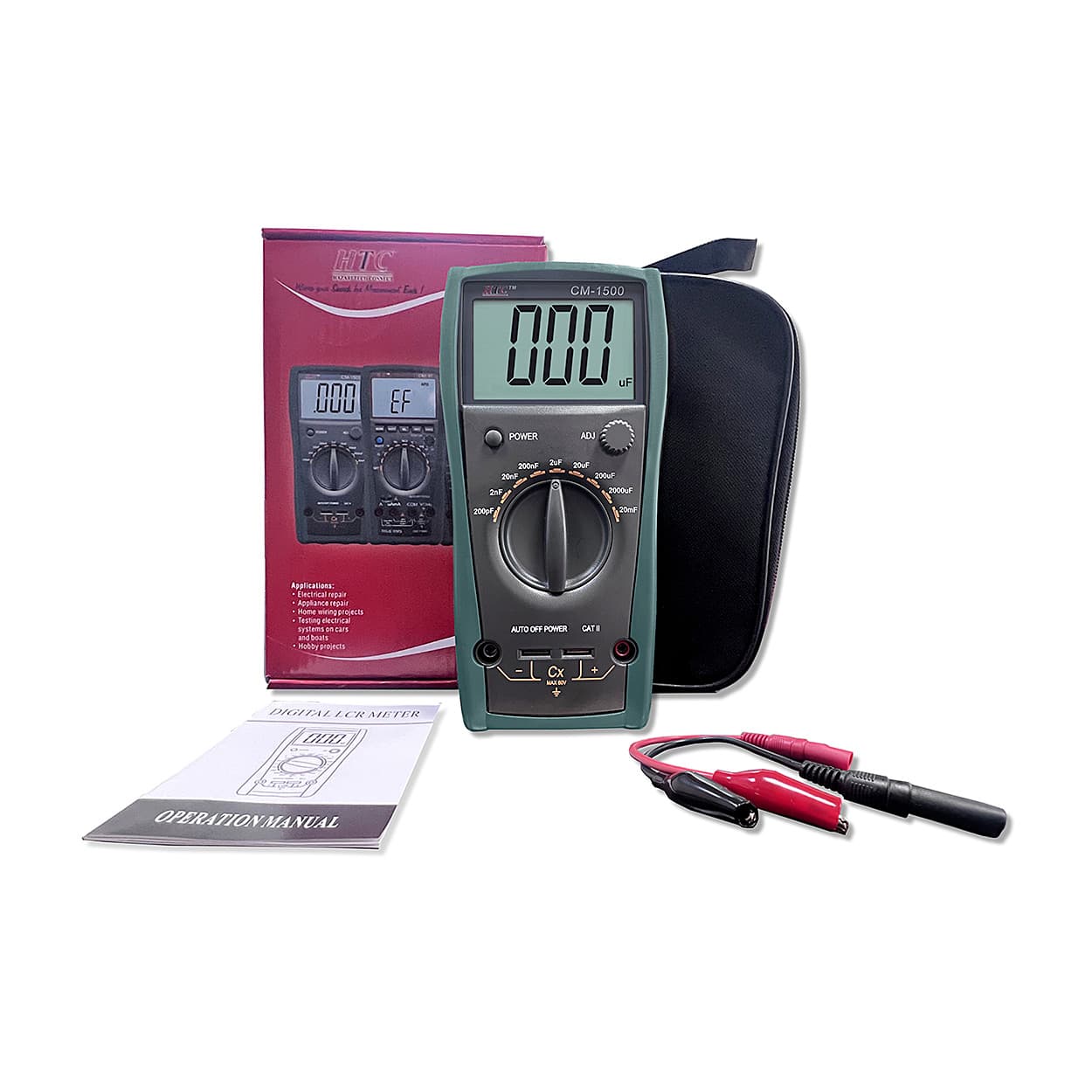

Package Contents:
- Test Lead,
- Manual.
Capacitance:
| Range | Resolution | Accuracy | Test Frequency | Max Display |
| 200pF | 0.1pF | ±0.5% of rdg + 1 digits | 800Hz | 199.9pF |
| 2nF | 1pF | 1.999nF | ||
| 20nF | 10pF | 19.99nF | ||
| 200nF | 100pF | 199.9nF | ||
| 2μF | 1000pF | 1.999μF | ||
| 20μF | 0.01μF | 80Hz | 19.99μF | |
| 200μF | 0.1μF | 8Hz | 199.9µF | |
| 2000μF | 1μF | ±2.0% of rdg + 1 digits | 1999µF | |
| 20mF | 10μF | ±2.0% of rdg + 2 digits | 19.99µF |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Low Battery Indication | Approx. <7.5V |
|---|---|
| Sampling Rate | 3 times per second |
| Power | 9V (6F22) X 1 |
| Dimension | 185 (H) x 93 (W) x 35 (D) mm |
