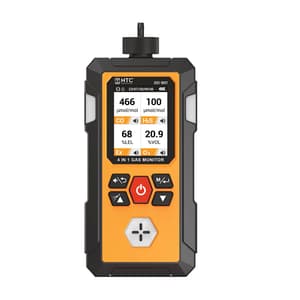

HTC 4 in 1 Gas Detector (CO/H2S/Ex/O2), GD-801
Roll over the image to zoom in
Key Features
- Product Type: Gas Detectors & Analyzers
- Weight: 318 g
- Sensor Principal: Electrochemical / Catalytic Combustion
- Sensor Life: 1 Year
- Sampling Method: Air Pump
- Reading Error: ±5% FS
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹15,576 (Incl. of all taxes)
₹13,200 + ₹2,376 GST (18%)
MRP was MRP ₹16,500
Save 20%
5 Business Days
1
90271000
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- Portable Voice Type 4-in-1 Gas (Co / H2s / Ex / O2) monitor
- Predicts The Gas Concentration And Alarm To Ensure Life Safety

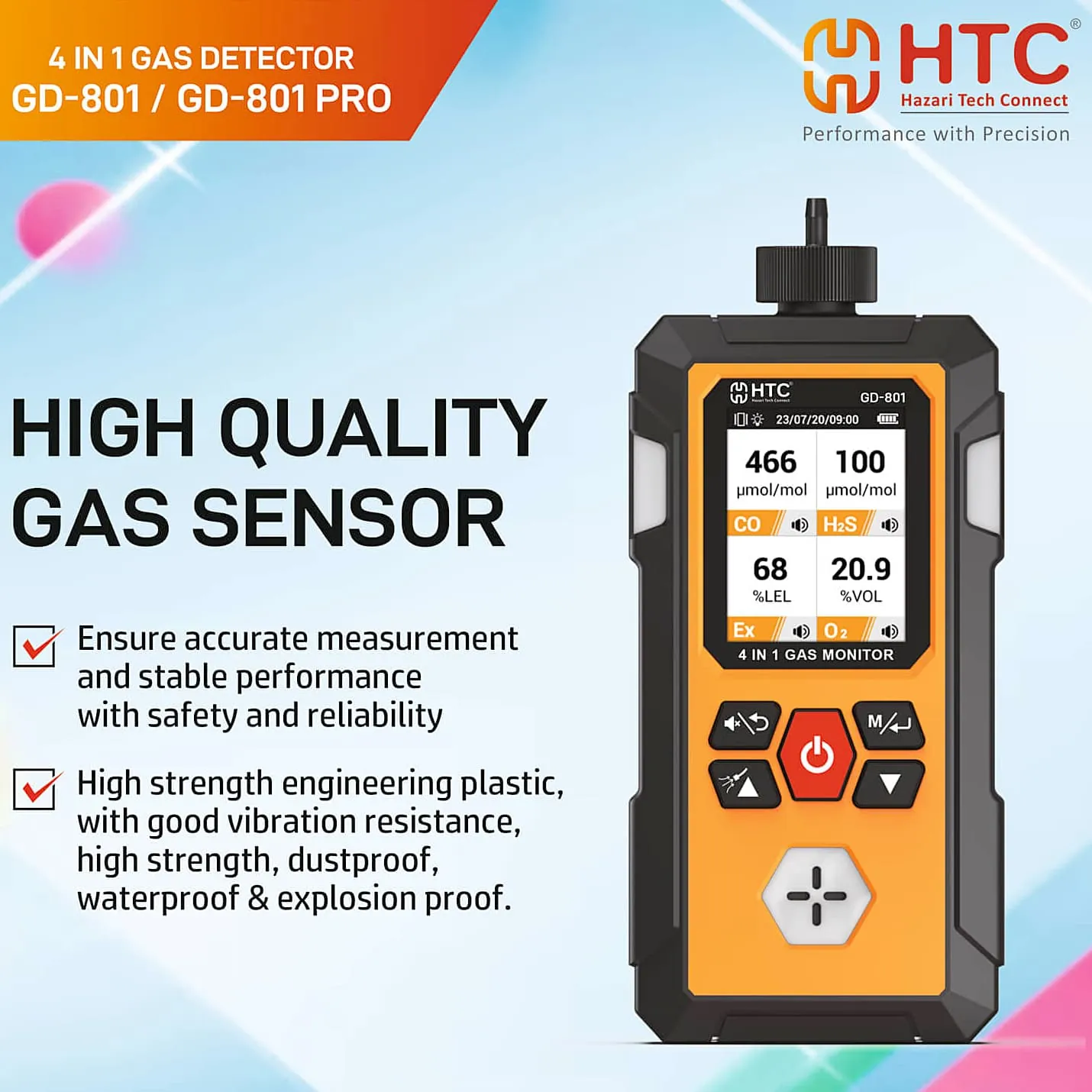

- High Strength Engineering Plastic & Sensitivity Gas Sensor
- 2.4" IPS Colour Screen
- Built-in-li-ion 3000mah
- Monitoring Combustible Gas Concentration
- Sound / Light / Vibration Alarm
- Voice Broadcast

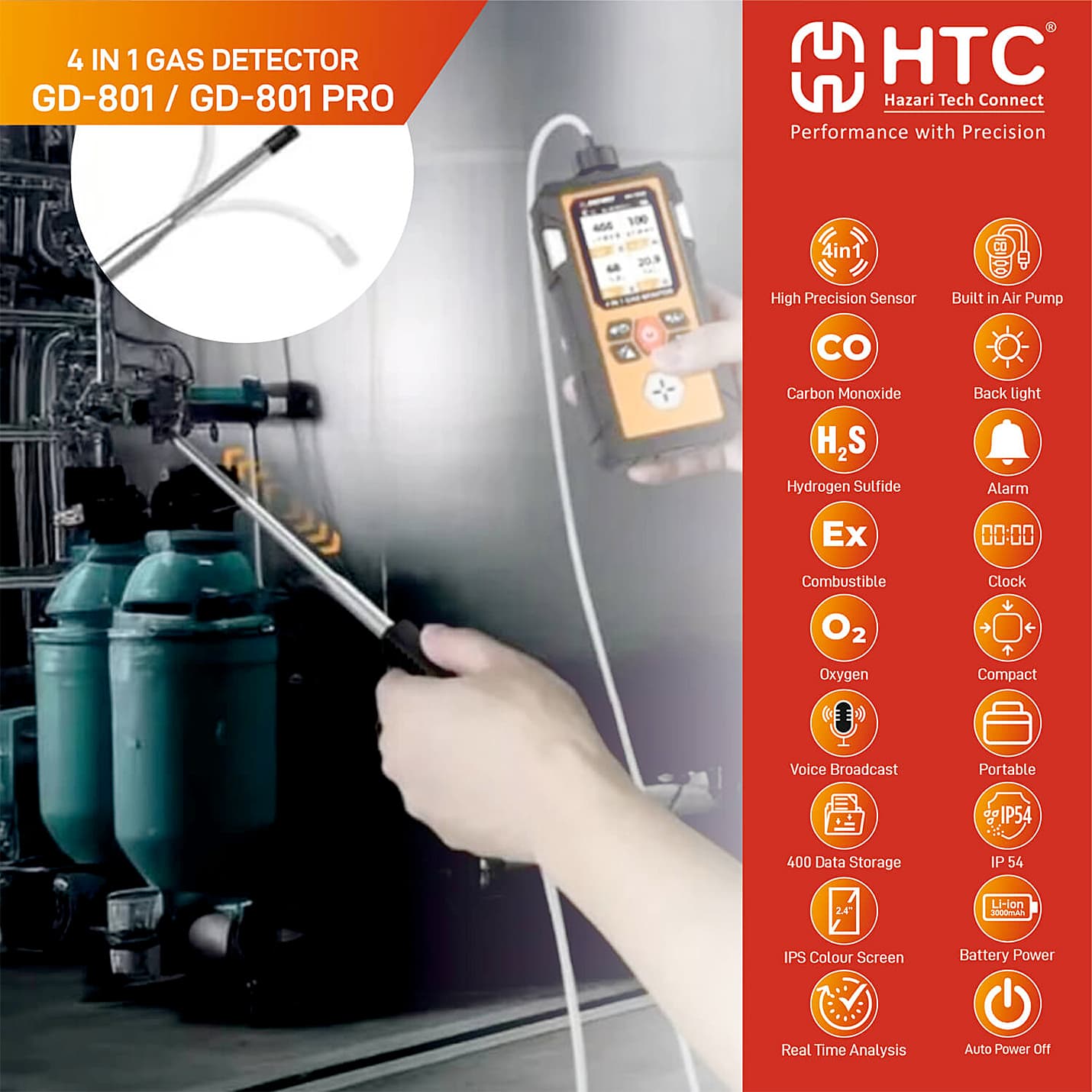

- Pump Detection, Built-in Air Pump
- Connected The External Gas Pipe And Multi-function Detection Handle

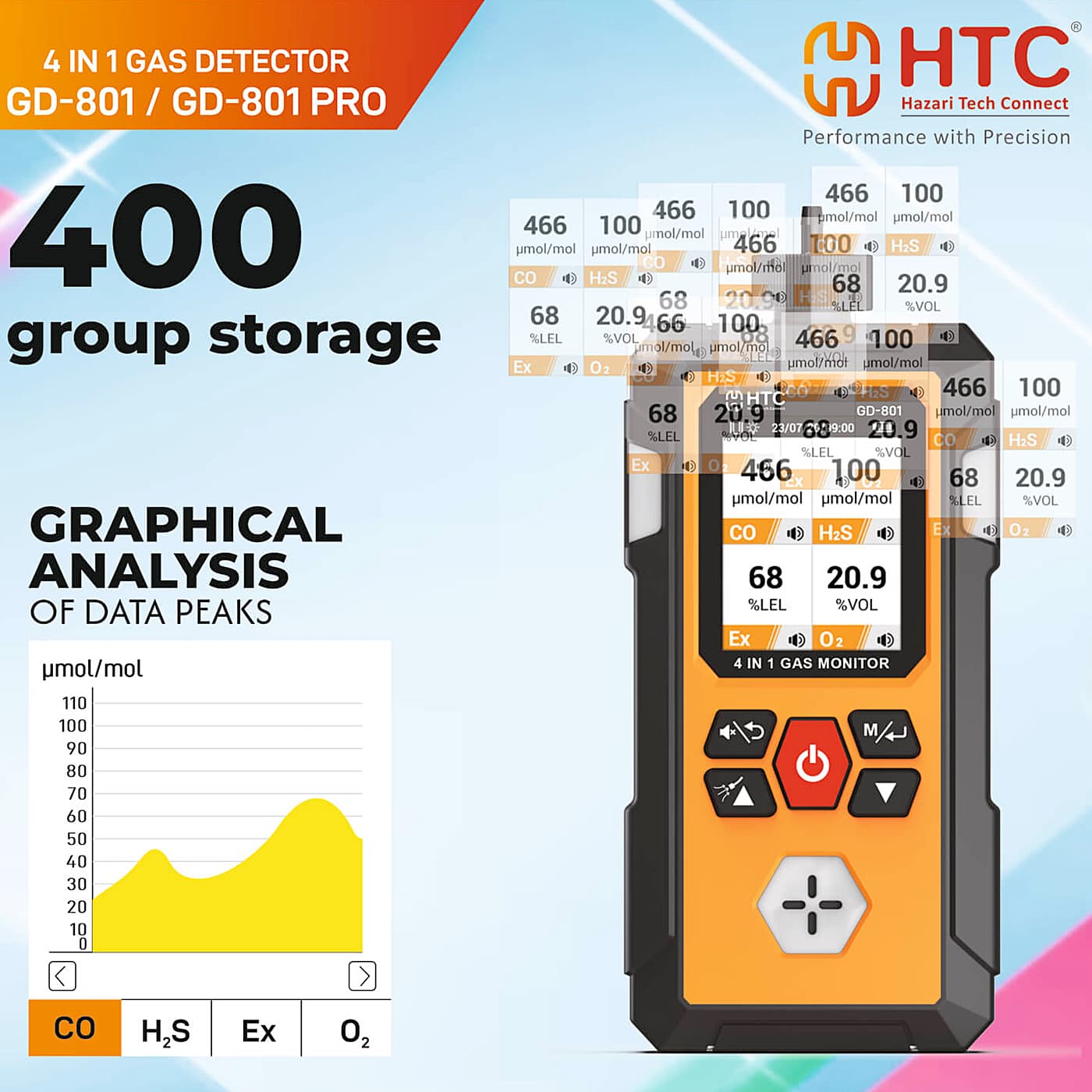

- 400 Sets Of Data Storage
- Real-time Data Graph Analysis
- IP54 (Dustproof, Waterproof & Explosion Proof)
Conventional Gas Detection Range:
| Gas Type | Range | Low Alarm Value | Max Alarm Value | Resolution |
|---|---|---|---|---|
| Carbon Monoxide (CO) | 0 ~ 1000 µmol/mol | 50 µmol/mol | 150 µmol/mol | 1 µmol/mol |
| Hydrogen Sulfide (H2S) | 0 ~ 100 µmol/mol | 10 µmol/mol | 35 µmol/mol | 1 µmol/mol |
| Combustible Gas (Ex) | 0 ~ 100% LEL | 20% LEL | 50% LEL | 1% LEL |
| Oxygen (O2) | 0 ~ 30% VOL | 19.5% VOL | 23.5% VOL | 0.1% VOL |
Package Content:
- Meter
- Type-C Cable
- Colour Box
- User Manual
- Cloth Bag
- Hose
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Sensor Principal | Electrochemical / Catalytic Combustion |
|---|---|
| Sensor Life | 1 Year |
| Sampling Method | Air Pump |
| Reading Error | ±5% FS |
| Response Time | <30s |
| Time Display | Yes |
| Memory | 400 Units |
| Startup Preheat | 50s |
| Alarm | Sound/Light/Vibration |

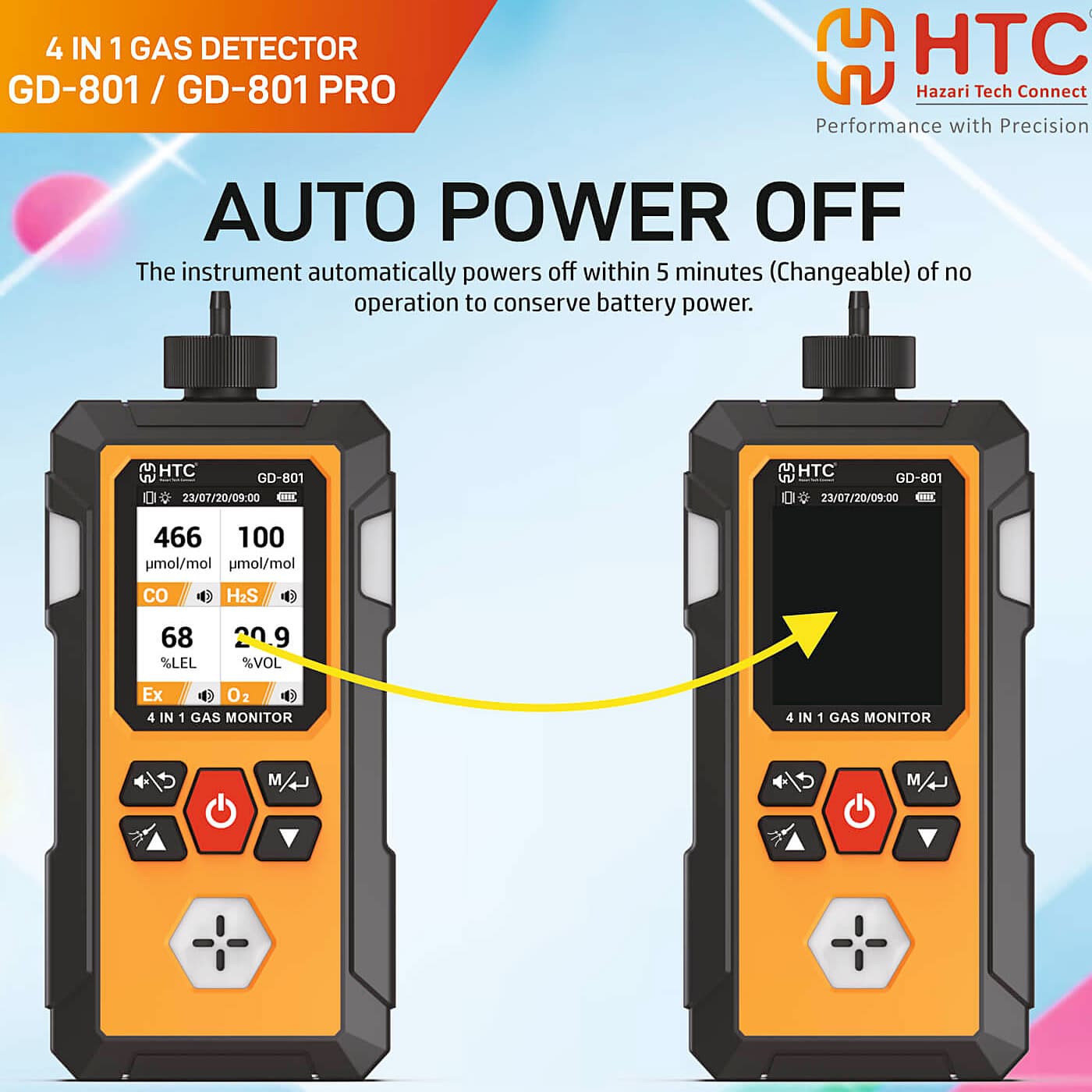

| Auto Off | 5 Minutes (Changeable) |
| Auto Backlight Off | 30s |
| Explosion-proof Grade | Ex ib IIB T3 Gb |
| IP GRADE | IP54 |
| Charging Specification | Type-C, DC5V 1A |
| Power | 3.8V 300mAh Li-ion |
| Dimension (HxWxD) | 174 x 77 x 55 mm |
