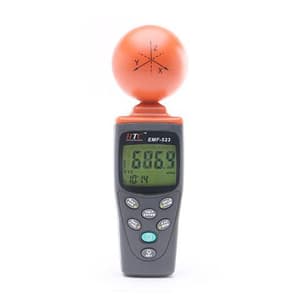

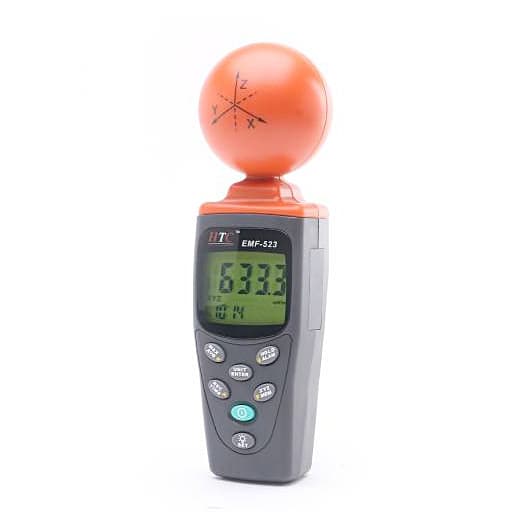

HTC 50Mhz - 3.5 Ghz Electro Smog Field Tester (3 Axis), EMF-523
Roll over the image to zoom in
Key Features
- Product Type: Electro Magnetic Field Tester
- Sample Rate: 3 times per second
- Dynamic Range: Typically 75dB
- Isotropy Deviation: Typically ±1.0 dB (f2.45GHz)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹10,903 (Incl. of all taxes)
₹9,240 + ₹1,663 GST (18%)
MRP was MRP ₹11,550
Save 20%
5 Business Days
1
90303390
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- Measurement method: Digital, triaxial measurement.
- Directional characteristic: Isotropic (triaxial)
- Measurement range selection: One continuous range.
- Display resolution : 0.1mV/m, 0.1 μA/m, 0.001 μW/m2 , 0.001 μW/cm2.
- Setting time: typically 1.5s (0 to 90% measurement value)

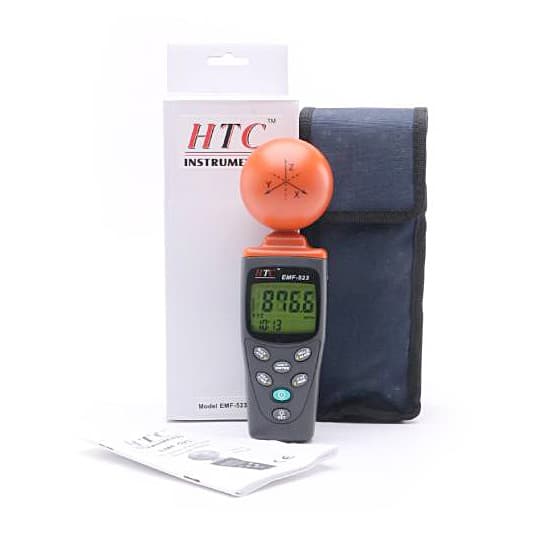

Package Contents:
- Manual,
- Soft Carrying Case.
Specification:
| Frequency Range : 50Mhz ~ 3.5 Ghz | Frequency Response |
| Specified measurement range CW signal (f>50MHz) 0.01V/m – 20.0 V/m 0.01mA/m – 532.6m/Am 0.01W/m2 – 106.94mW/m2 |
Sensor taking into account the typical CAL facto : ± 2.4 dB (50MHz to 1.9GHz) ± 1.0 dB (1.9GHz to 3.5Ghz) |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Units | mV/m, V/m, μA/m, mA/m, μW/m2, mW/m2 μW/cm2 |
|---|---|
| Sample Rate | 3 times per second |
| Power | 9V (6F22) X 1 |
| Dynamic Range | Typically 75dB |
| Absolute error at 1V/m and 2.45GHz | ±1.0 dB |
| Isotropy Deviation | Typically ±1.0 dB (f2.45GHz) |
| Overload limit | 0.42 mW/cm2 (11V/m) per axis |
| Dimension | 60 (H) x 60 (W) x 195 (D) mm |
