Insize 0 - 10 mm / 0 - 0.39 inch Digital Chamfer Gage, 1180-62
Roll over the image to zoom in
Key Features
- Product Type: Chamfer Gauge
- Range (mm): 0 - 10 mm
- Range (inch): 0 - 0.39 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹17,541 (Incl. of all taxes)
₹14,865 + ₹2,676 GST (18%)
MRP was MRP ₹21,236
Save 30%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights

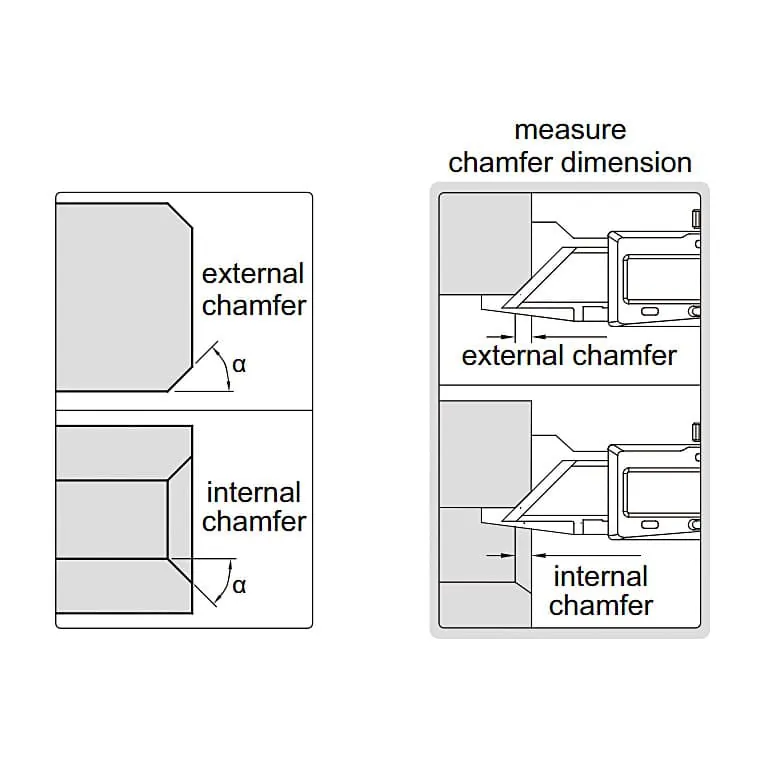

- Measure 15°/20°/30°/45°/60° chamfer dimension
- Buttons: on/off, zero, mm/inch
- Automatic power off, move the digital unit turn on the power
- Data output
- Optional accessory: data output cable (code 7315-21, 7302-21)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (mm) | 0 - 10 mm |
|---|---|
| Range (inch) | 0 - 0.39 inch |
| A (mm) | 33 mm |
| B (mm) | 20 mm |
| D (Ø) | Ø11 mm |
| Accuracy | ±0.06 mm |
| Chamfer (a) | 20° |
| Resolution | 0.01 mm / 0.0005 inch |
| Power Supply | Battery CR2032 |
| Material | Stainless steel |
