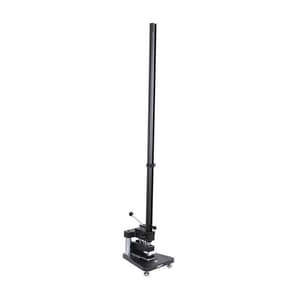

Insize 0 - 100 cm Height Range Impact Tester, THD-PF34
Roll over the image to zoom in
Key Features
- Product Type: Impact Tester
- Impact Height Range (cm): 0 - 100 cm
- Impact Height Range (inch): 0 - 40 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,54,355 (Incl. of all taxes)
₹2,15,555 + ₹38,800 GST (18%)
Out of Stock
15 Business Days
1
90248099
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- For paint and vamish dry coating. To test the ability to resist cracking or peeling from the substrate when deformation is caused by weights impact under standard conditions
- Indenter, base and weight can be replaced quickly
- Conform to ISO 6272-2:2002, ASTM D 2794

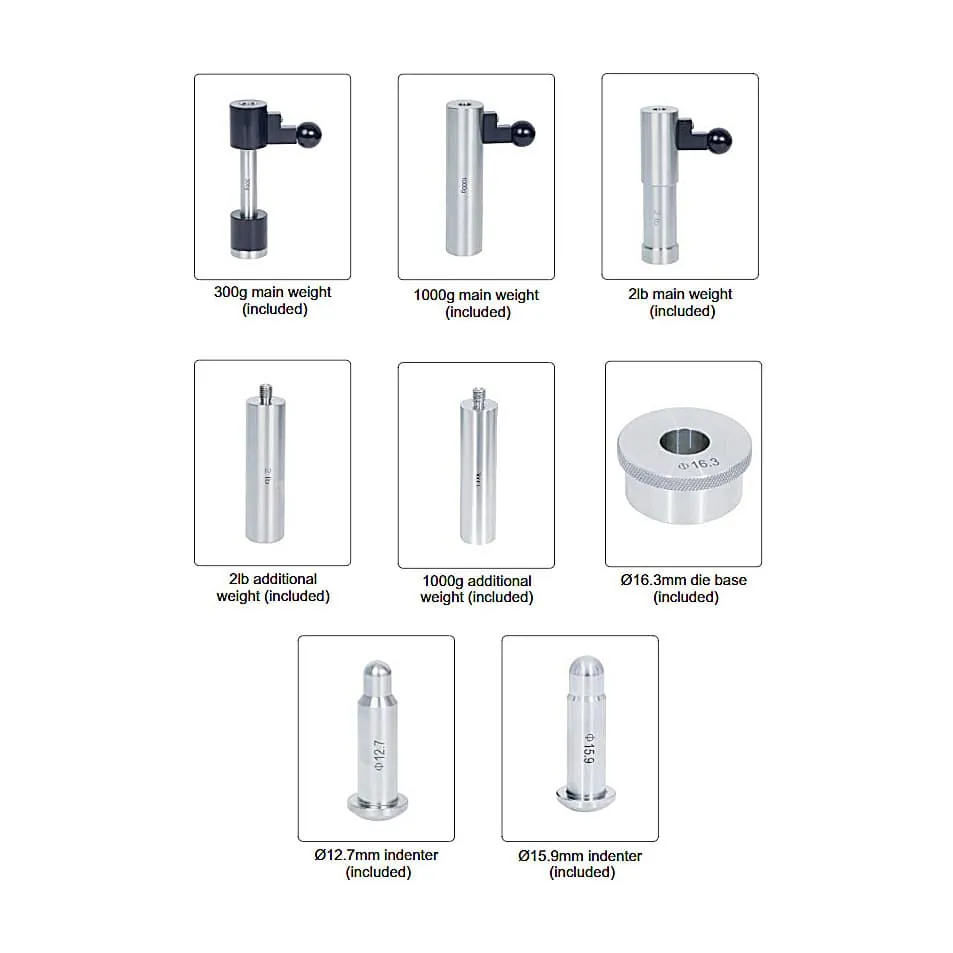

Package Content:
- 1x Impact Tester
- 1x 1000g Main Weight
- 1x 300g Main Weight
- 1x 2lb Main Weight
- 1x 1000g Additional Weight
- 1x 2lb Additional Weight
- 1x Ø12.7 mm Indenter
- 1x Ø15.9 mm Indenter
- 1x Ø16.3 mm Die Base
Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Impact Height Range (cm) | 0 - 100 cm |
|---|---|
| Impact Height Range (inch) | 0 - 40 inch |
| Graduation | 1 cm |
| Impact Depth | 2.5 cm |
| Indenter Diameter | Ø12.7 mm (1/2 inch DIA), Ø15.9 mm (5/8 inch DIA) |
| Die Base Diameter | Ø16.3 mm |
