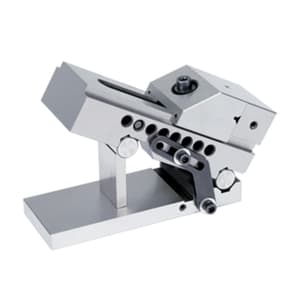

Insize 0 - 100 mm Precision Quick Moving Sine Vice, 6514-1001
Roll over the image to zoom in
Key Features
- Product Type: Sine Vices
- Jaw Opening (Q): 0 - 100 mm
- Jaw Width (W): 80 mm
- Roller Distance (E): 100 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹25,971 (Incl. of all taxes)
₹22,009 + ₹3,962 GST (18%)
MRP was MRP ₹32,366
Save 32%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Optional accessory: Gauge Blocks (Code 4101, 4201)
Please Note that Products may differ eg. color, size from the product Image displayed on the website. Kindly check the specifications provided to make a better purchase decision.

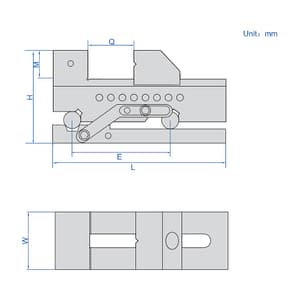

Specifications
| Jaw Opening (Q) | 0 - 100 mm |
|---|---|
| Jaw Width (W) | 80 mm |
| Roller Distance (E) | 100 mm |
| Parallelism & Squareness | 5μm / 100 mm |
| Adjustable Angle | 0 - 60° |
| Accuracy of Angle | ±20 Seconds |
| Hardness Rockwell | 58 - 60 HRC |
| Dimensions (L x H x M) | 195 x 108 x 40 mm |
| Material | Alloy Steel |
