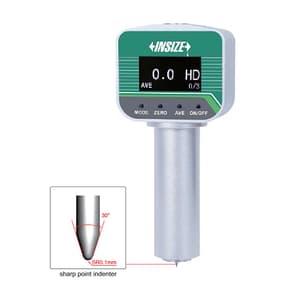

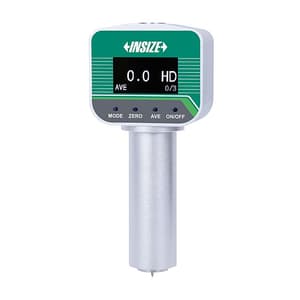

Insize 0 - 100HD Range Digital Shore Durometer (Shore D), HDT-ESD
Roll over the image to zoom in
Key Features
- Product Type: Shore Durometer
- Weight: 300 g
- Measuring range: 0 ~ 100HD
- Resolution: 0.2HD
- Accuracy: ±1HD
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,49,356 (Incl. of all taxes)
₹1,26,573 + ₹22,783 GST (18%)
Out of Stock
7 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Inspection Certificate
- With time hold function, the time can be set from 0 to 30 seconds
- 1.5 inch OLED display
- Meet the requirements of force measurement forward and reverse in the verification regulations
- Digital displacement sensor, high test accuracy
- Zero point calibration function, calibration block is not required
- With average function, to have average values from 0 to 9 times
- Can be used with test stand (optional) for high accuracy and stable measurement
- According to ISO 48, ISO 7619, ISO 21509
Standard Delivery:
- 1x Digital Shore Durometer
- 1x Software and USB cable
- 1x Power Adapter
Note:
- Use HDT-ESD when measuring result is higher than 90HA
- Use HDT-ESA when measuring result is lower than 20HD
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Unit | Shore D |
|---|---|
| Test material | High hardness vulcanized rubber & thermoplastic rubber, etc |
| Measuring range | 0 ~ 100HD |
| Resolution | 0.2HD |
| Accuracy | ±1HD |
| Indenter protrusion | 2.5 mm |
| Output | USB |
| Power supply | Built-in rechargeable battery |
| Dimensions (mm) | 150 x 60 x 50 mm |
