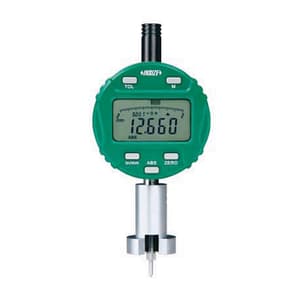

Insize 0 - 12.7 mm Digital Surface Profile Gauge, 2844-10
Roll over the image to zoom in
Key Features
- Product Type: Profile Gauge
- Range (mm): 0 - 12.7 mm
- Range (inch): 0 - 0.5 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹20,543 (Incl. of all taxes)
₹17,409 + ₹3,134 GST (18%)
MRP was MRP ₹24,520
Save 29%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights

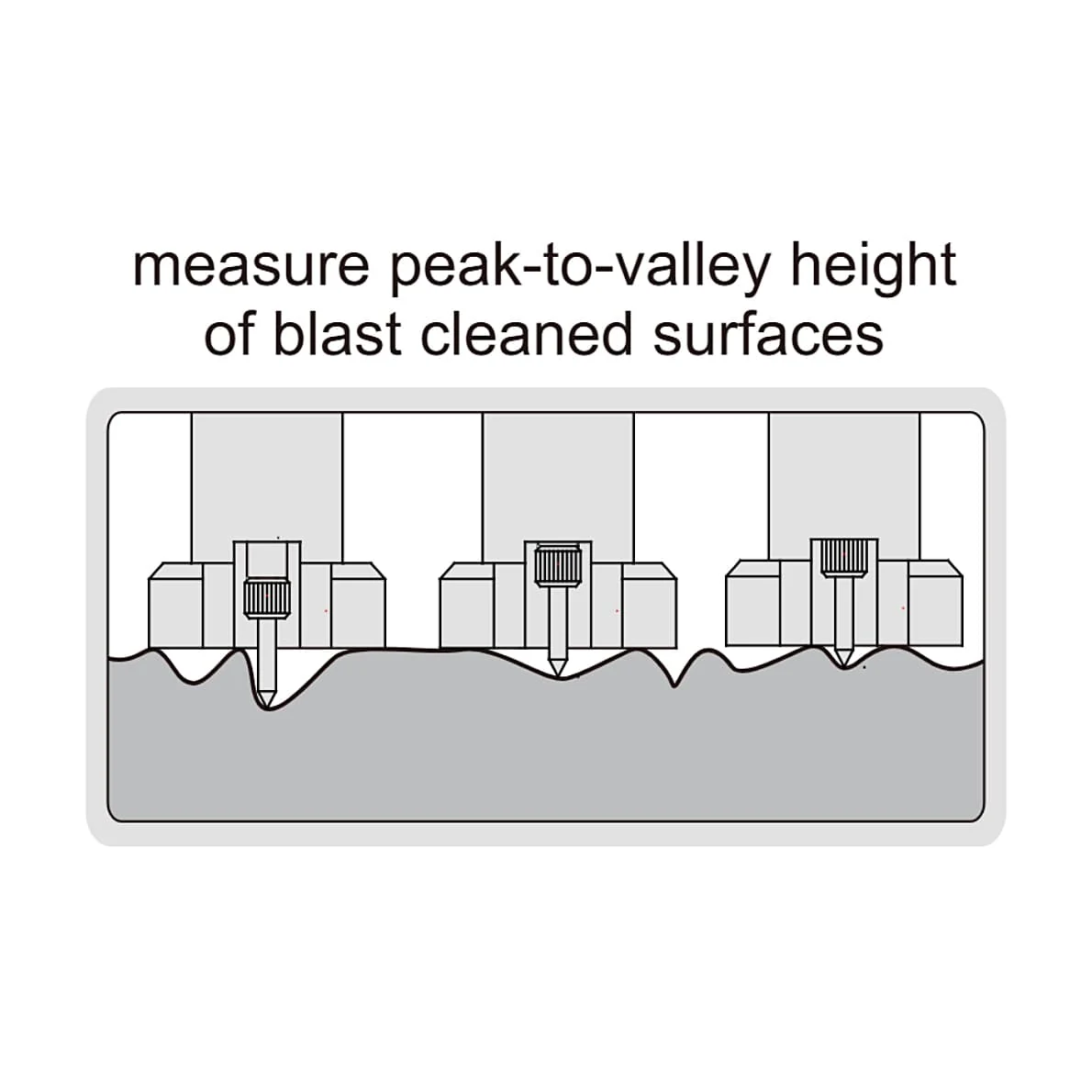

- Measure peak-to-valley height of blast cleaned surface. If the profile is too low, the adhesion of the coating to the surface will be reduced. If the profile is too high, there is the danger that the profile peaks will remain uncoated, allowing rust spots to occur.
- Meet ASTM D 4417-B

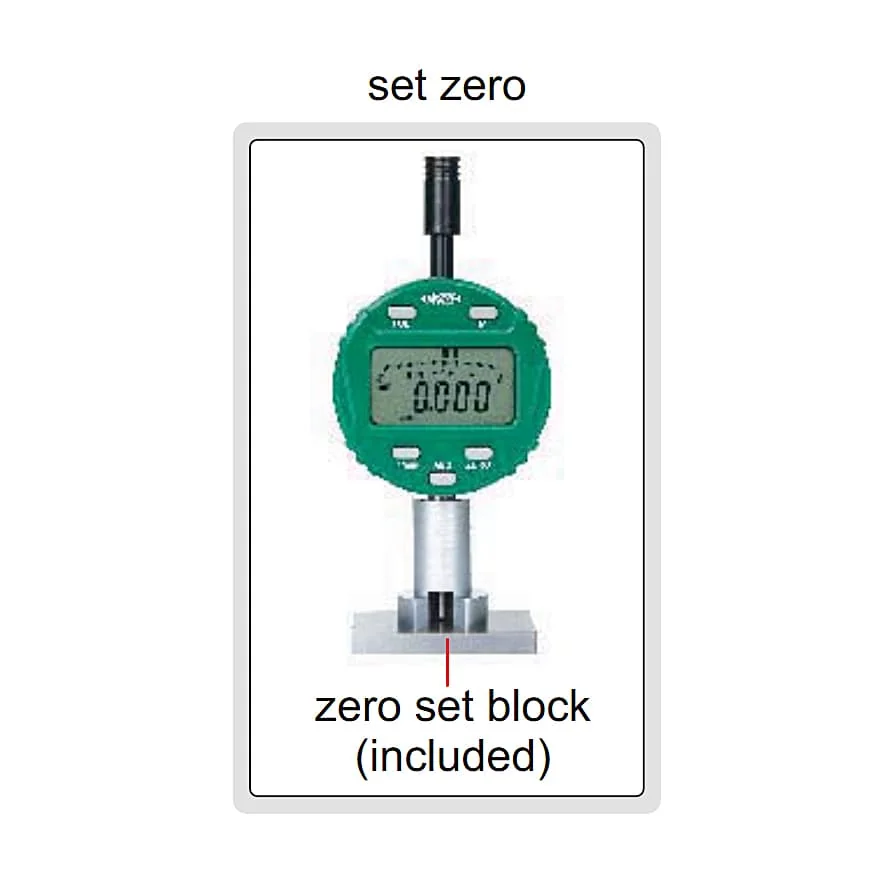

- Zero set block is included, set zero before measurement
- Button function: tolerance Go and No-Go display, data preset, measuring direction change, max./min./TlR measurement, inch/metric conversion, absolute/incremental measurement
- CR2032 battery, automatic power off (time is adjustable)
- Data ouput
- Stainless steel base
- Optional accessory: Data output cable (code 7315-50M, 7302-40M)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 0 - 12.7 mm |
|---|---|
| Range (inch) | 0 - 0.5 inch |
| Digital Indicator Stroke | 12.7 mm / 0.5 inch |
| Digital Indicator Resolution | 0.001 mm / 0.00005 inch |
| Accuracy | ±0.005 mm |
| Power Supply | 1x Battery CR2032 |
| Material (Base) | Stainless Steel |
