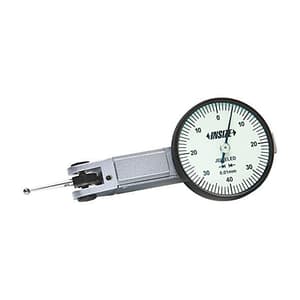

Insize 0.2 x 0.002 mm Horizontal Type Dial Test Indicator, 2380-02
Roll over the image to zoom in
Key Features
- Product Type: Dial Indicator
- Range (mm): 0.002 - 0.2 mm
- Accuracy: 6μm
- Dial Reading: 0-100-0
- Length (mm): 12.5 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,911 (Incl. of all taxes)
₹5,009 + ₹902 GST (18%)
MRP was MRP ₹7,589
Save 34%
1 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Meet DIN2270 (except 2380-02, 2381-02)
- Jeweled bearing
- Carbide contact point
- Two measuring directions
- Anti-magnetic body

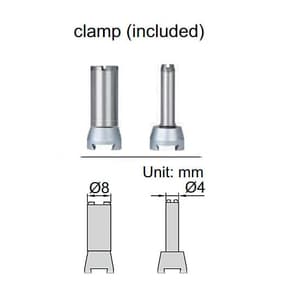

- Supplied with two clamps: diameter Ø4mm and Ø8mm
- Optional accessory: styli.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 0.002 - 0.2 mm |
|---|---|
| Type of Product | Dial Test Indicator |
| Accuracy | 6μm |
| Hysteresis | 2μm |
| Dial Reading | 0-100-0 |

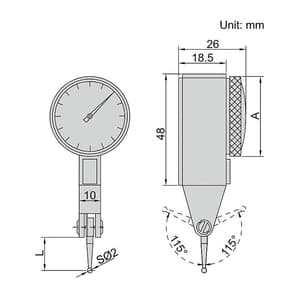

| A (mm) | 30 mm |
| Length (mm) | 12.5 mm |
| Includes | with manufacture inspection certificate traceable to NIST USA |
