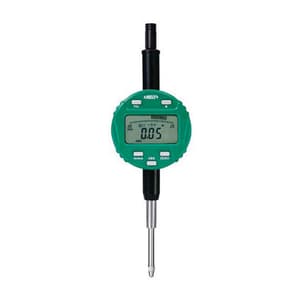

Insize 0 - 25.4 mm / 1 inch Flat Back Digital Indicator with Lift Cap (Advanced Type), 2103-25P
Roll over the image to zoom in
Key Features
- Product Type: Digital Indicators
- Range (mm): 0 - 25.4 mm
- Range (Inches): 0 - 1 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹16,793 (Incl. of all taxes)
₹14,231 + ₹2,562 GST (18%)
MRP was MRP ₹22,236
Save 36%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Reading in digital and analog
- The display can be rotated by 320°
- Button function: tolerance Go and No-Go display, data preset, measuring direction change, max./min./TIR measurement, inch/metric conversion, absolute/incremental measurement
- Keep preset data and tolerance data in memory after the restart
- CR2032 battery, automatic power off (time is adjustable), Data Output
- Optional accessory: data output cable (code 7315-50M, 7302-40M, 7305-40M), backs, contact points.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (mm) | 0 - 25.4 mm |
|---|---|
| Range (Inches) | 0 - 1 inch |
| Accuracy | 5μm |
| Hysteresis | 3μm |
| Max. Measuring Force | 2.2N |
| Resolution | 0.01 mm / 0.00005 inch |
| Remark | Flat Back with Lift Cap |
