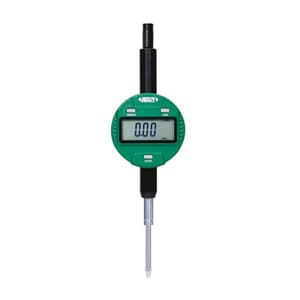

Insize 0 - 25.4 mm / 1 inch Flat Back Digital Indicator with Lift Cap (Standard Type), 2112-25P
Roll over the image to zoom in
Key Features
- Product Type: Digital Indicators
- Range (mm): 0 - 25.4 mm
- Range (Inches): 0 - 1 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹7,722 (Incl. of all taxes)
₹6,544 + ₹1,178 GST (18%)
MRP was MRP ₹9,348
Save 30%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Button function: on/off, inch/mm, zero, data preset, change measuring direction, absolute/incremental measurement
- Switchable high/low-frequency measurement mode, high-frequency mode is suitable for high-speed moving of spindle and has large power consumption, low power consumption in low-frequency mode
- Keep preset data in memory after the restart
- CR2032 battery, automatic power off
- Data output
- Optional accessory: data output cable (code 7315-50M, 7302-40M, 7305-40M), backs, contact points.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (mm) | 0 - 25.4 mm |
|---|---|
| Range (Inches) | 0 - 1 inch |
| Accuracy | 20μm |
| Hysteresis | 10μm |
| Max. Measuring Force | 2.2N |

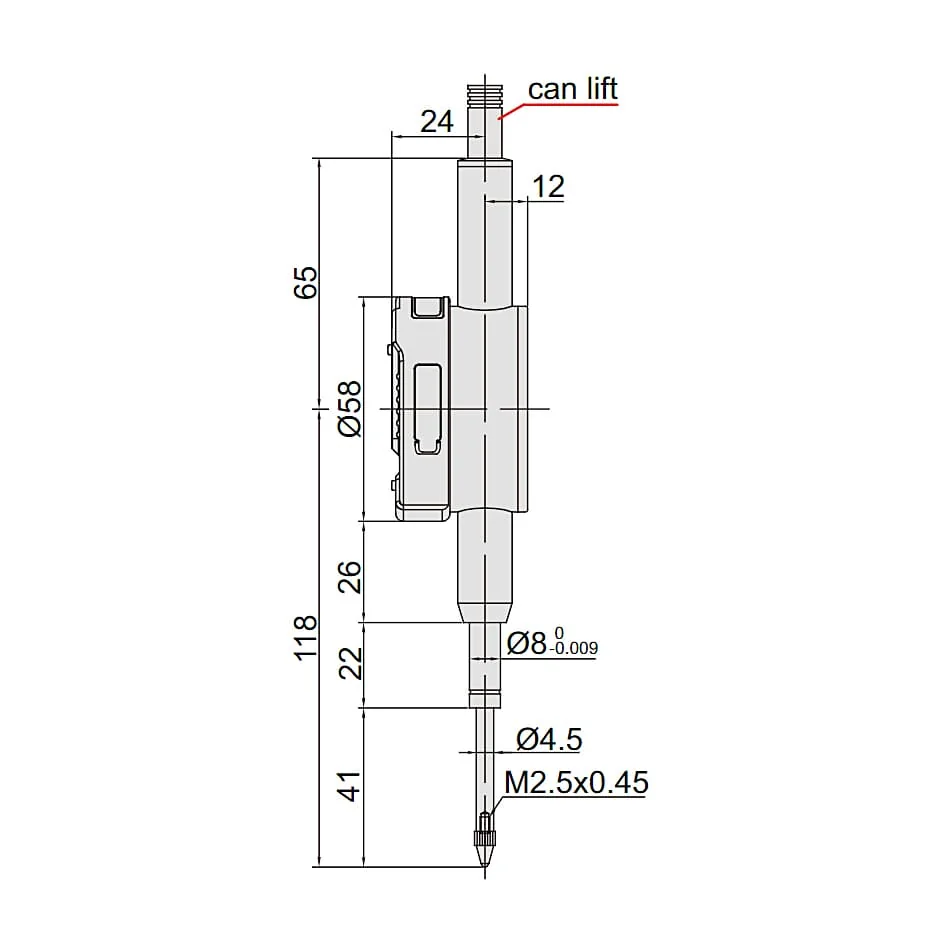

| Remark | Flat Back with Lift Cap |
| Resolution | 0.01 mm / 0.0005 inch |
