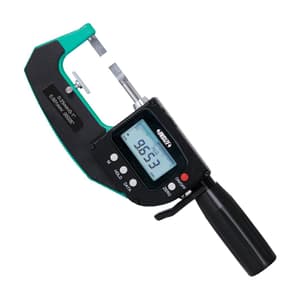

Insize 0 - 25 mm Wireless Digital Blade Micrometer / Snap Gauge (Type B), 3352-252WL
Roll over the image to zoom in
Key Features
- Product Type: Blade Micrometers
- Range (mm): 0 - 25 mm
- Range (Inches): 0 - 1 inch
- Type: B
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹43,286 (Incl. of all taxes)
₹36,683 + ₹6,603 GST (18%)
MRP was MRP ₹53,945
Save 32%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Data Output & IP65 Waterproof
- Non-rotating Spindle
- Measure the groove diameter of shafts and keyways
- Absolute encoder, the original data remains after power off
- One turn of sleeve makes 10mm spindle feed
- Measurement accuracy is not affected by the use of sleeve
- Press the fork, the spindle retracts 3mm
- Carbide measuring faces
- Measuring force 5-10N Customizable measuring force range 3-1 IN (Attention: small measuring force will reduce the dustproof and waterproof level)

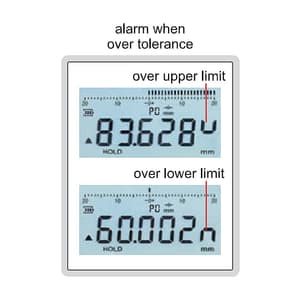

- Button function: data output, tolerance, data preset, data hold, measuring direction change, max./min./TlR, power off time, on/off, zero, mm/inch
- Power: rechargeable battery, for 24 hours continuous working
- Supplied with manufacturer inspection certificate
- Built-in wireless (receiver code 7315-2/3/6171819 is needed)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range (mm) | 0 - 25 mm |
|---|---|
| Range (Inches) | 0 - 1 inch |
| Resolution | 0.001 mm / 0.00005 inch |
| Measuring Force | 5 - 10N |
| Accuracy | 2μm |
| Repeatability | 1μm |
| Type | B |

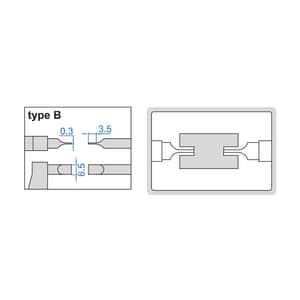

| Sizes (mm) | 64 mm (A), 32.5 mm (B) |
