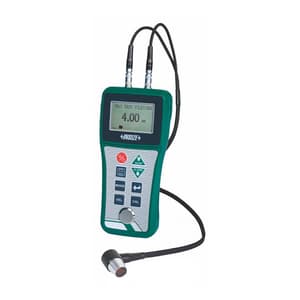

Insize 0.8 - 300 mm Ultrasonic Thickness Gauge, ISU-200D
Roll over the image to zoom in
Key Features
- Product Type: Coating Thickness Meter
- Weight: 180 g
- Measuring range: 0.8~300mm
- Transducer Frequency: 5MHz
- Transducer Diameter (d): 13 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹52,622 (Incl. of all taxes)
₹44,595 + ₹8,027 GST (18%)
Out of Stock
7 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- With zero calibration and two-point calibration function, can automatically correct the system error
- Measure method: single point, scanning, deviation
- Measures steel, cast iron, aluminum, copper, plastics, ceramics, glass, fiberglass, etc
- Set upper and lower limits for alarm when out-of-tolerance
- Memory 500 measurement values
Accuracy:
- ±0.05 mm (H<10 mm)
- ±0.5%Hmm (H>10 mm)
- H is the thickness to be measured in mm

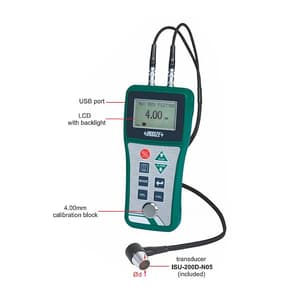

Standard Delivery:
| Main unit | 1 Pc |
| Transducer (ISU-200D-N05) | 1 Pc |
| Couplant | 1 Bottle |
| Battery (AAA) | 3 Pcs |
| USB Cable | 1 pc |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Measuring range | 0.8~300mm |
|---|---|
| Resolution | 0.01mm |
| Transducer Frequency | 5MHz |
| Transducer Diameter (d) | 13 mm |
| Minimum size of pipe for measurement | Ø25x3mm (diameter x wall thickness) |
| Applicable temperature | -10 ~ 60°C |
| Velocity | 1-9999m/s |
| Measuring Frequency | 4 times/second |
| Operation Temperature of main unit | -10 ~ 50°C |
| Output | USB |
| Measuring Unit | mm/inch |
| Power supply | 3x 1.5V AAA batteries |
| Application | General Use |
| Dimensions | 150 x 70 x 30 mm |
