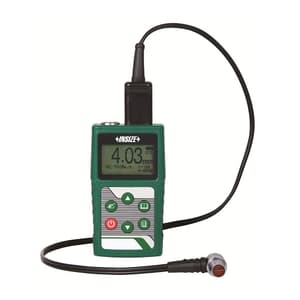

Insize 0.8 - 300 mm Ultrasonic Thickness Gauge, ISU-250C
Roll over the image to zoom in
Key Features
- Product Type: Coating Thickness Meter
- Weight: 220 g
- Measuring range: 0.8~300mm
- Transducer Frequency: 5MHz
- Transducer Diameter (d): 11mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,02,340 (Incl. of all taxes)
₹86,729 + ₹15,611 GST (18%)
MRP was MRP ₹1,23,898
Save 30%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Measure the thickness from one side of objects, suitable for pipes, tanks, etc.
- Applicable material: Metal, Plastic, Glass, Nylon, Resin, Ceramic, Ice
- Tolerance measurement
- Average calculation of 9 readings
- Data can be input to Excel and Word as a keyboard signal
Accuracy:
- ±0.04 mm (H<10 mm)
- ±(0.04+H/1000)mm (10<H<100 mm)
- ±H/333mm (H>100 mm)
- H is the thickness to be measured in mm

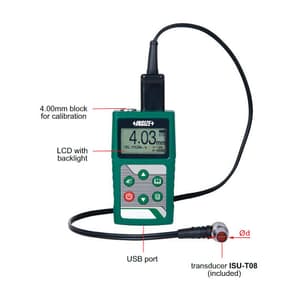

What's Included in this Package:
| Main unit | 1 Pc |
| Transducer ISU-T08 | 1 Pc |
| Couplant (for ISU-T04, ISU-T06, ISU-T08, ISU-T12) | 1 Bottle |
| Battery (AAA) | 2 Pcs |
| USB Cable | 1 pc |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Measuring range | 0.8~300mm |
|---|---|
| Resolution | 0.1 / 0.01 mm |
| Transducer Frequency | 5MHz |
| Transducer Diameter (d) | 11mm |
| Minimum size of pipe for measurement | 25x1.2mm (diameter x wall thickness) |
| Applicable temperature | -20 ~ 60°C |
| Velocity | 1000 - 9999m/s |
| Operation Temperature of main unit | -20 ~ 50°C |
| Output | USB |
| Measuring Unit | mm/inch |
| Power supply | 2 x 1.5V AAA Batteries |
| Dimension | 64 x 116 x 27 mm |
| Includes | Inspection Certificate |
| Application | General Use |
