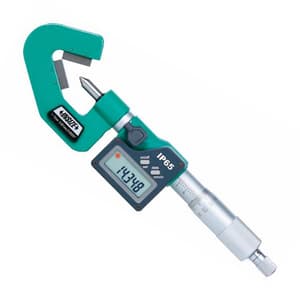

Insize 1 - 15 mm Digital V-Anvil Micrometer (Type A), 3590-153A
Roll over the image to zoom in
Key Features
- Product Type: V-Anvil Micrometer
- Range (mm): 1 - 15 mm
- Range (Inches): 0.04 - 0.6 inch
- Flutes: 3

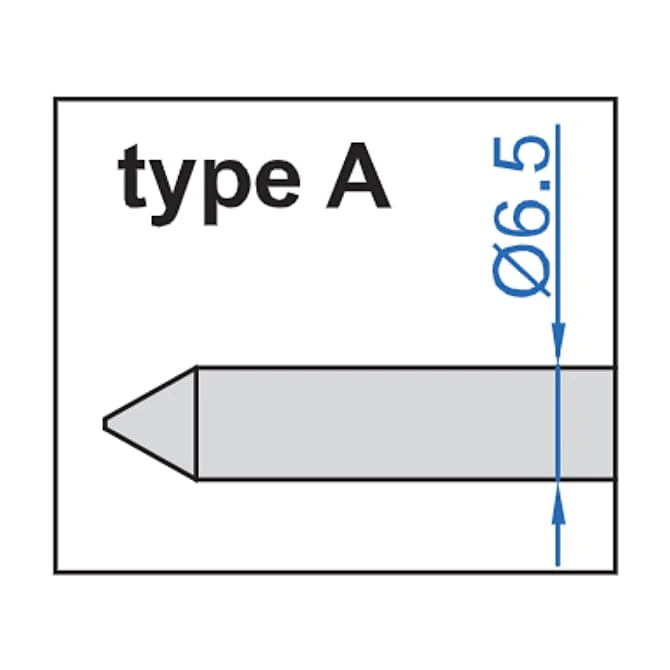

- Type: A
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹22,237 (Incl. of all taxes)
₹18,845 + ₹3,392 GST (18%)
MRP was MRP ₹26,542
Save 29%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights

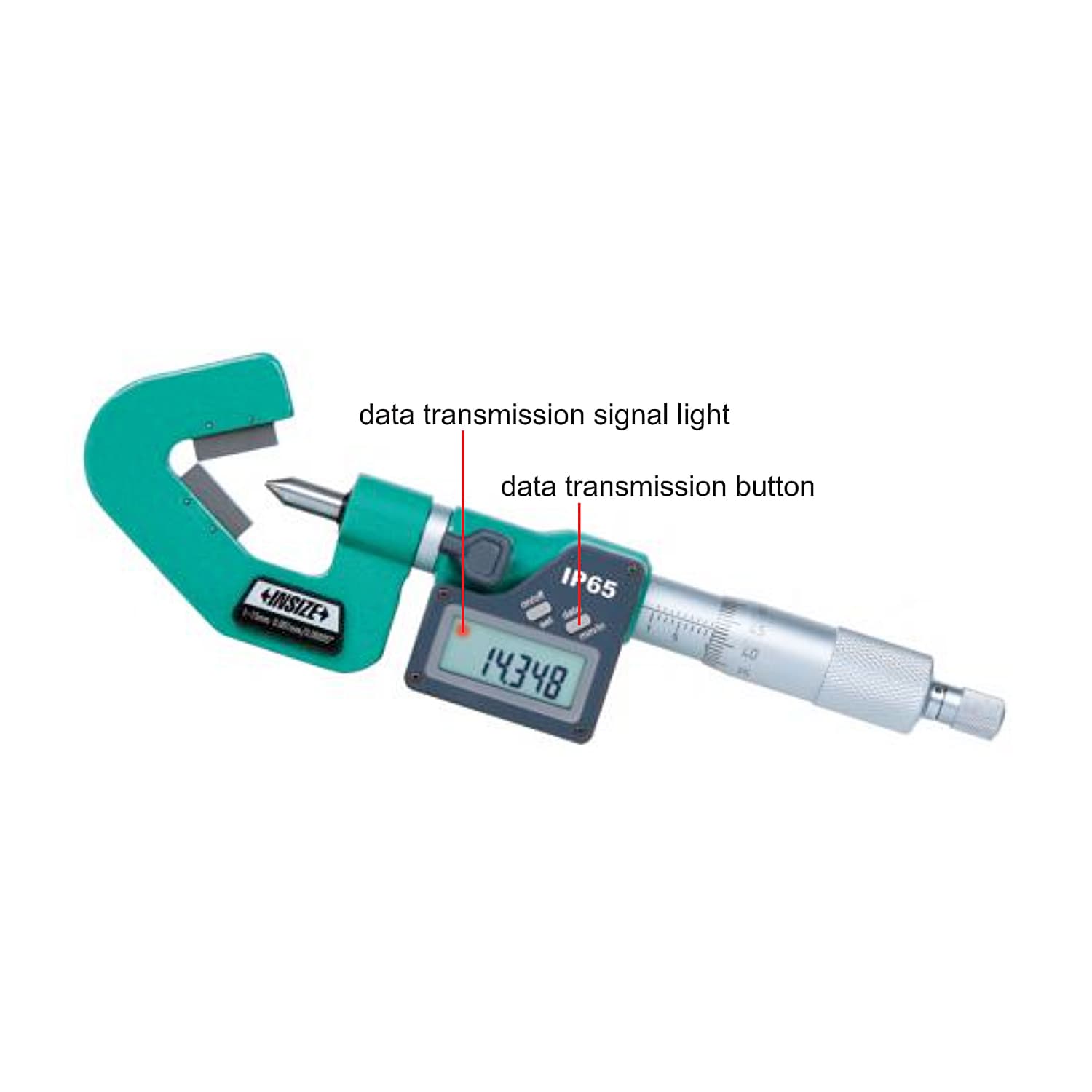

- Data Output & IP65 Waterproof
- Measure the diameter of parts or cutting tools with odd grooves, such as taps, reamers and end mills
- Button function: on/off, set, mm/inch, data transmit
- Automatic Power Off
- Ratchet stop
- Carbide measuring faces
- Supplied with setting standards
- With data interface (optional data output cable: code 7315-31 receiver is needed, 7302-31)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

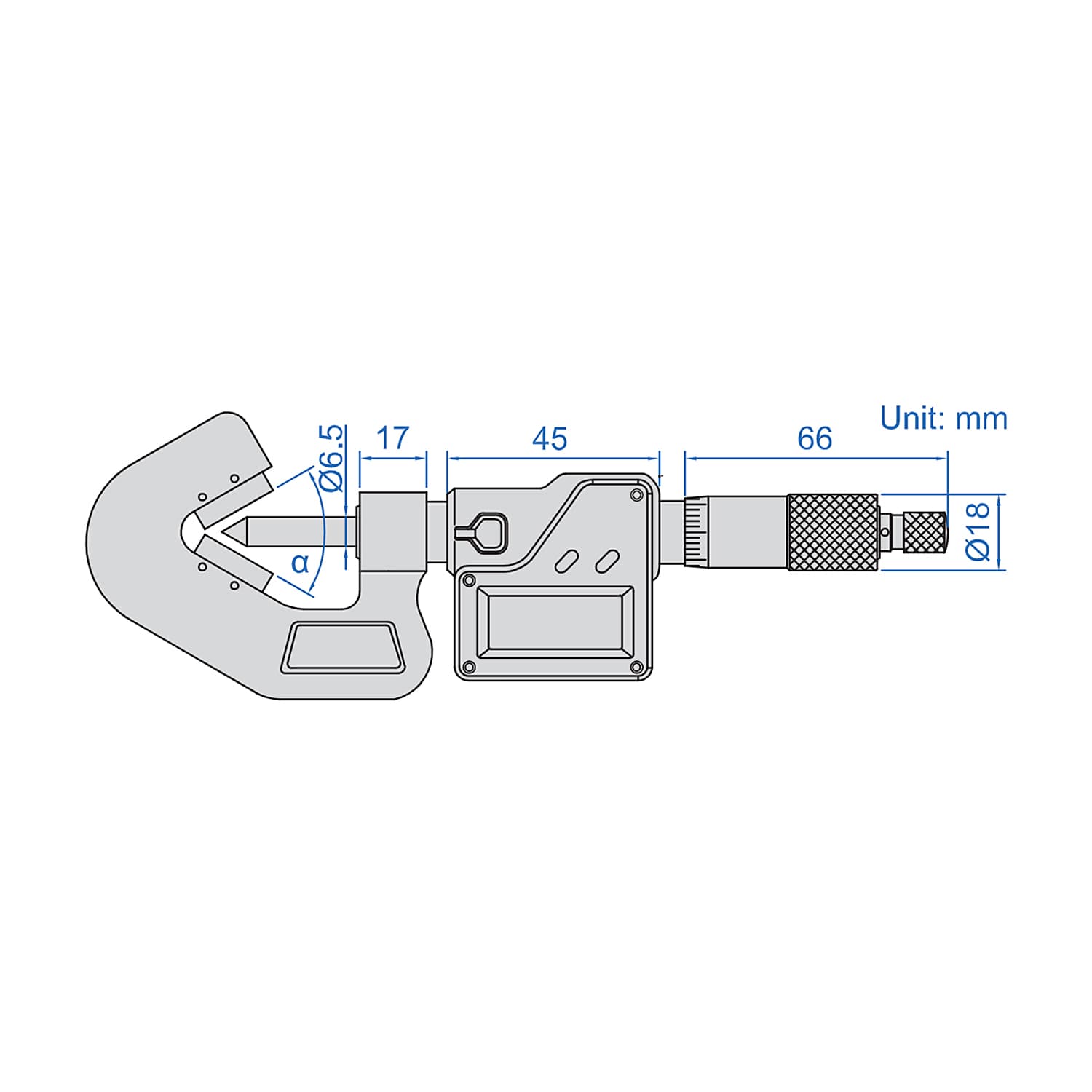

Specifications
| Range (mm) | 1 - 15 mm |
|---|---|
| Range (Inches) | 0.04 - 0.6 inch |
| Flutes | 3 |
| Accuracy | ±4μm |
| a | 60° |
| Type | A |
| Resolution | 0.001 mm / 0.00005 inch |
| Power Supply | 1x Battery (CR2032) |
