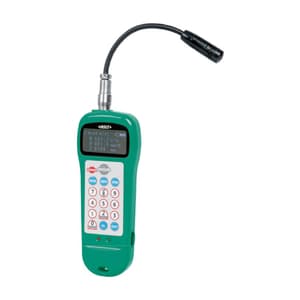

Insize 10 - 5000Hz Sonic Belt Tension Meter, 5910-HZ5K
Roll over the image to zoom in
Key Features
- Product Type: Tension Meter
- Weight: 150 g
- Frequency Range (Hz): 10 - 5000Hz
- Tension Range: 0.01 - 99900N
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹98,151 (Incl. of all taxes)
₹83,179 + ₹14,972 GST (18%)
MRP was MRP ₹1,15,527
Save 28%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
The sonic belt tension meter uses a microphone probe to capture the sound waves generated by the belt vibration and can measure the waveform period, and then calculate the tension value by the frequency of the weekly wave
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- Can store 500 sets of measurement data, comes with 48 sets of belt data, no need to manually input every time
- Automatic filtering of noise interference, suitable for measurement in small spaces
- Easy operation, one-handed operation
- Lightweight and portable
Package Content:
- 1 x Tension Meter
- 1 x Standard Sensor

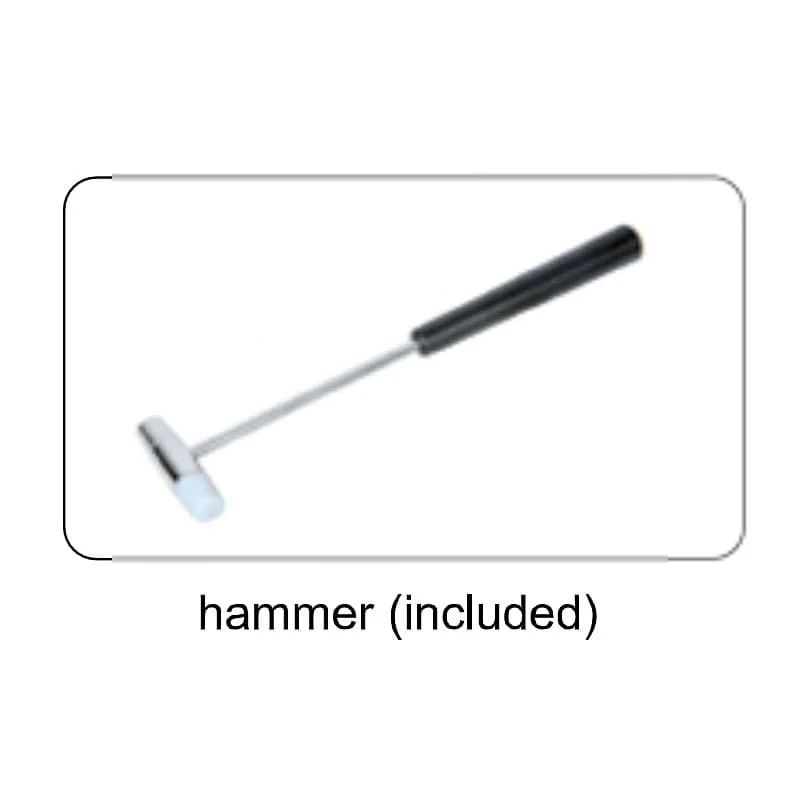

- 1 x Hammer
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Frequency Range (Hz) | 10 - 5000Hz |
|---|---|
| Tension Range | 0.01 - 99900N |
| Input Parameter Range | 0 - 999.9g/m (Belt Mass) / 0 - 999.9 mm/R (Belt Width) / 0 - 9999 mm (Belt Span) |
| Unit | N |
| Accuracy | ±1% |
| Operation Temperature | 10 - 50°C |
| Dimension (mm) | 160 x 59 x 27 mm |
| Power Supply | 2 x 1.5V AAA Batteries |
